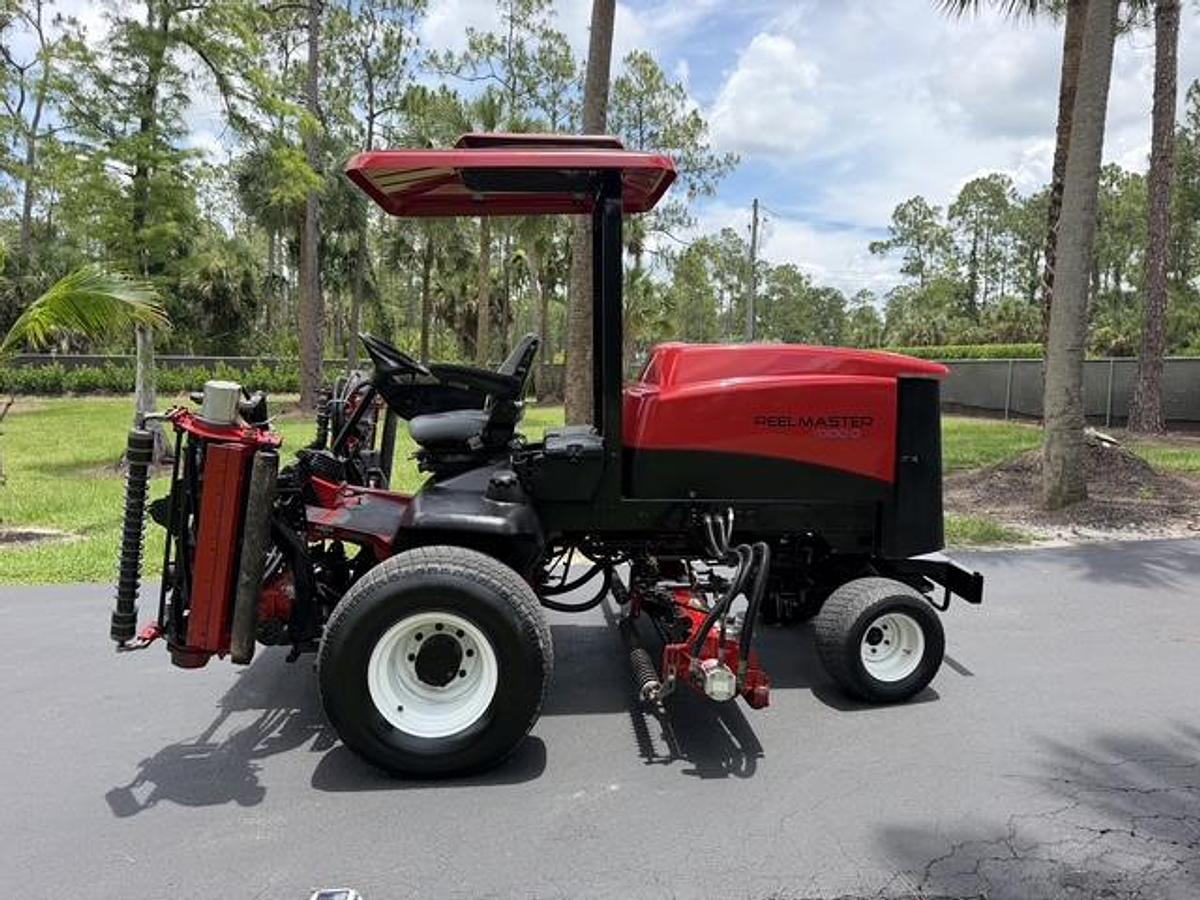

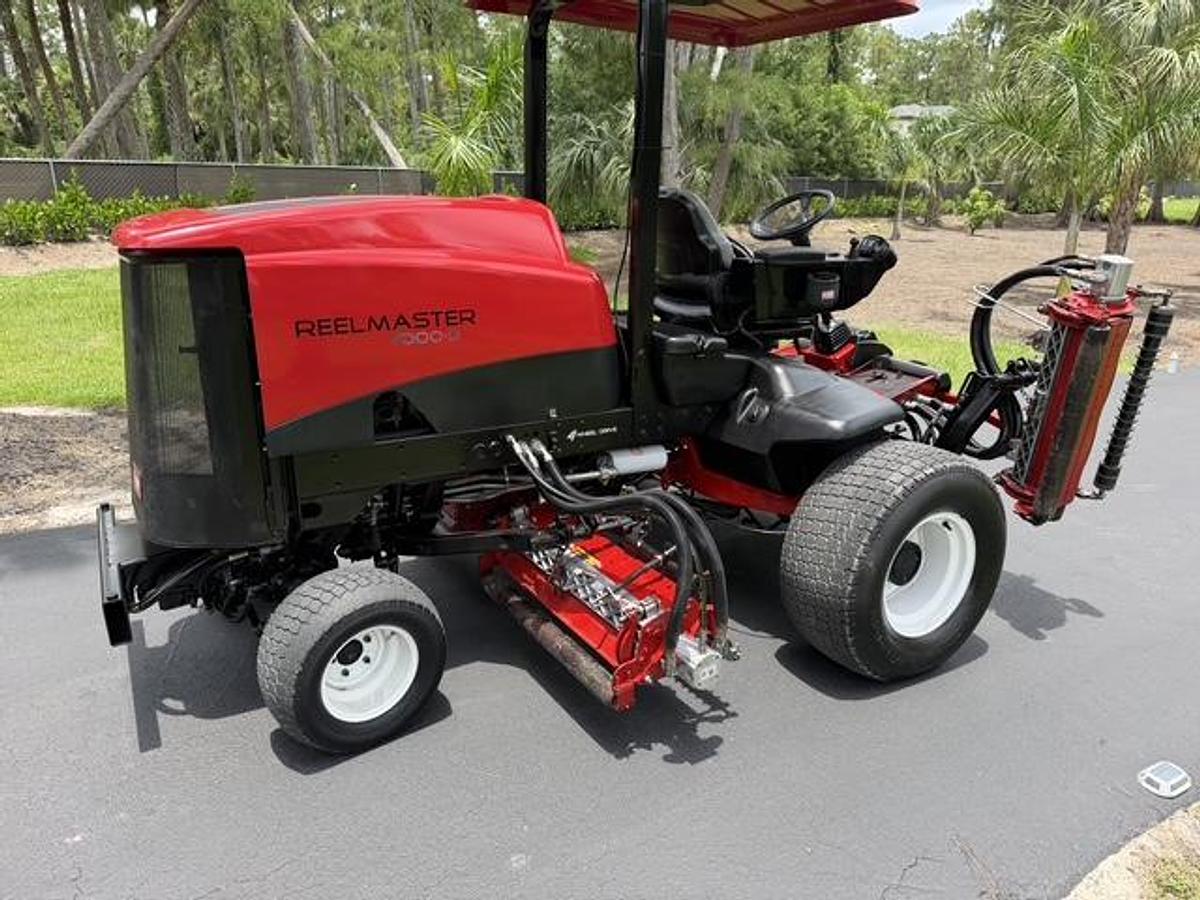

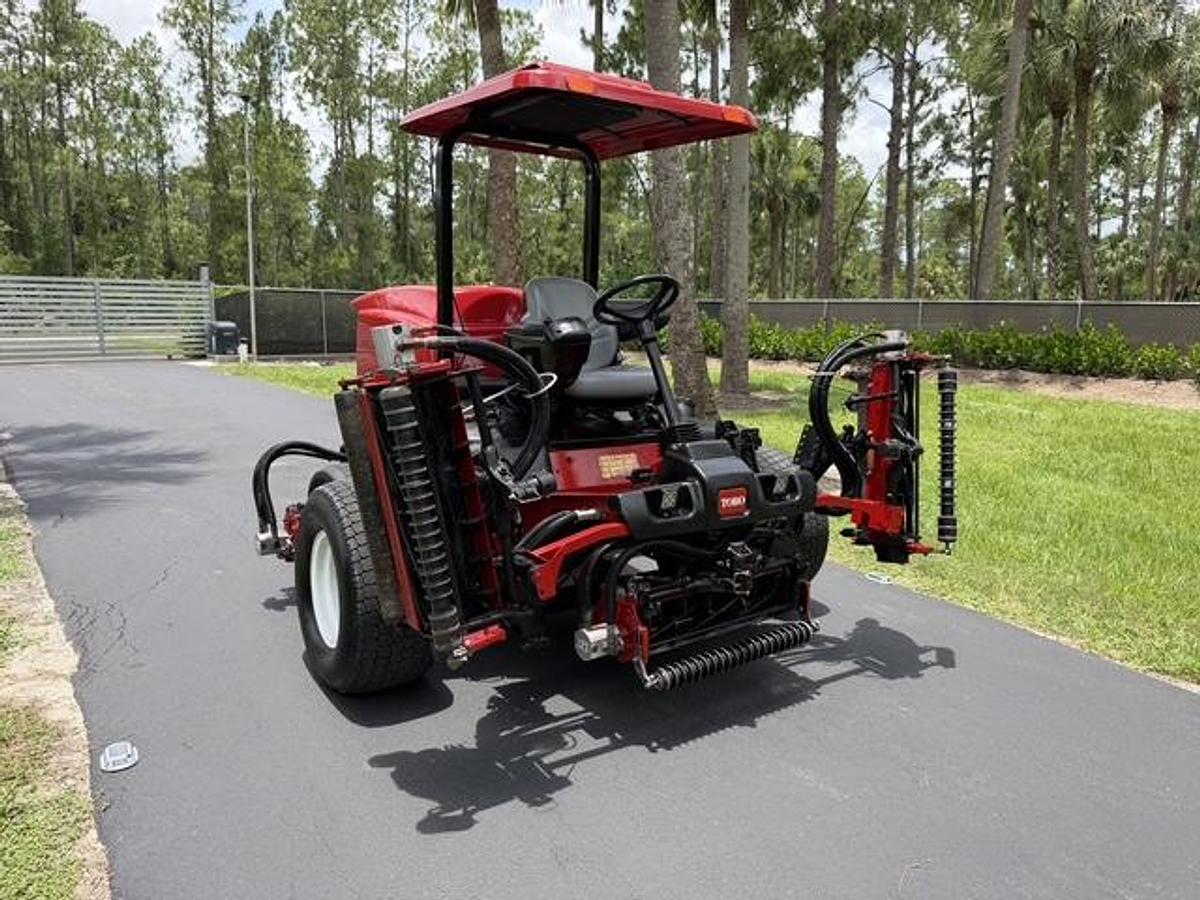

2016 Toro Reelmaster 7000D Model 03780
$28,000
Description

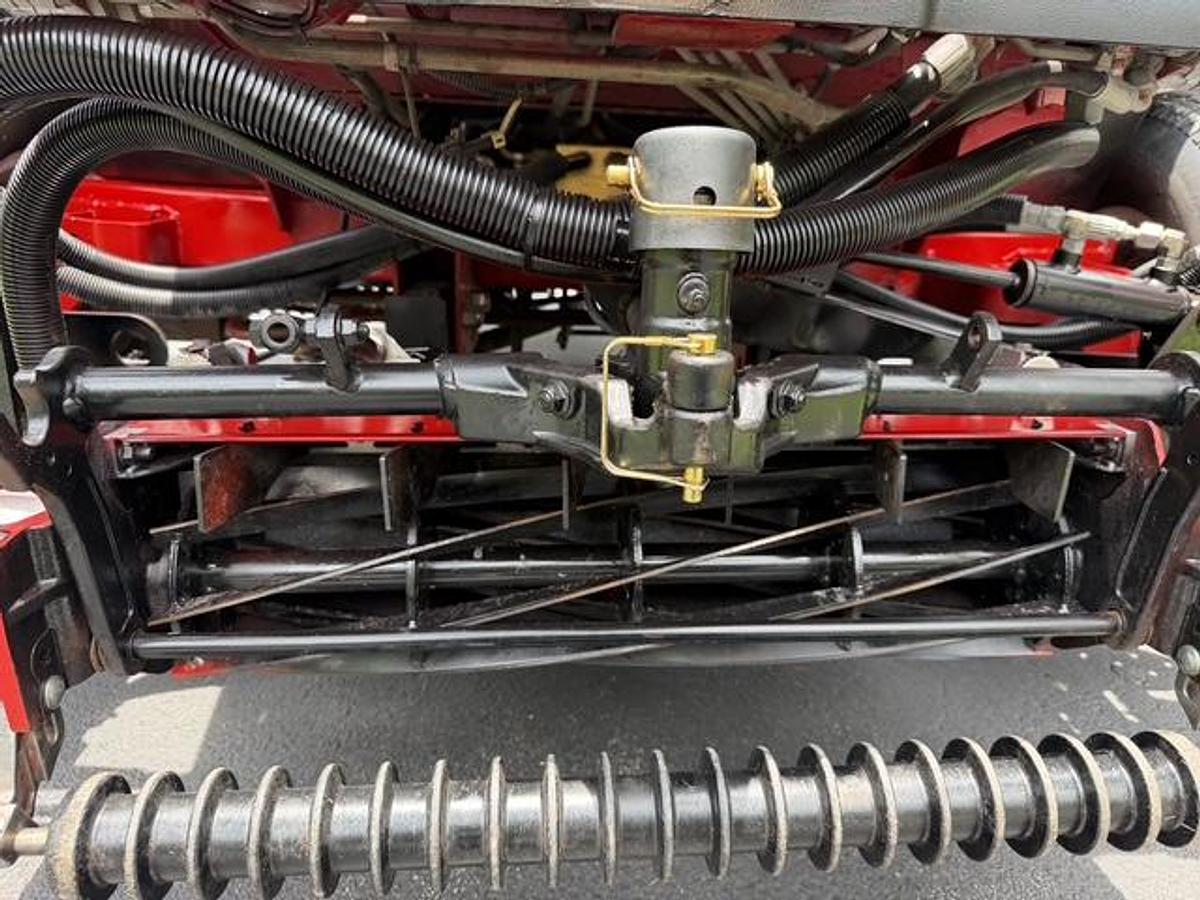

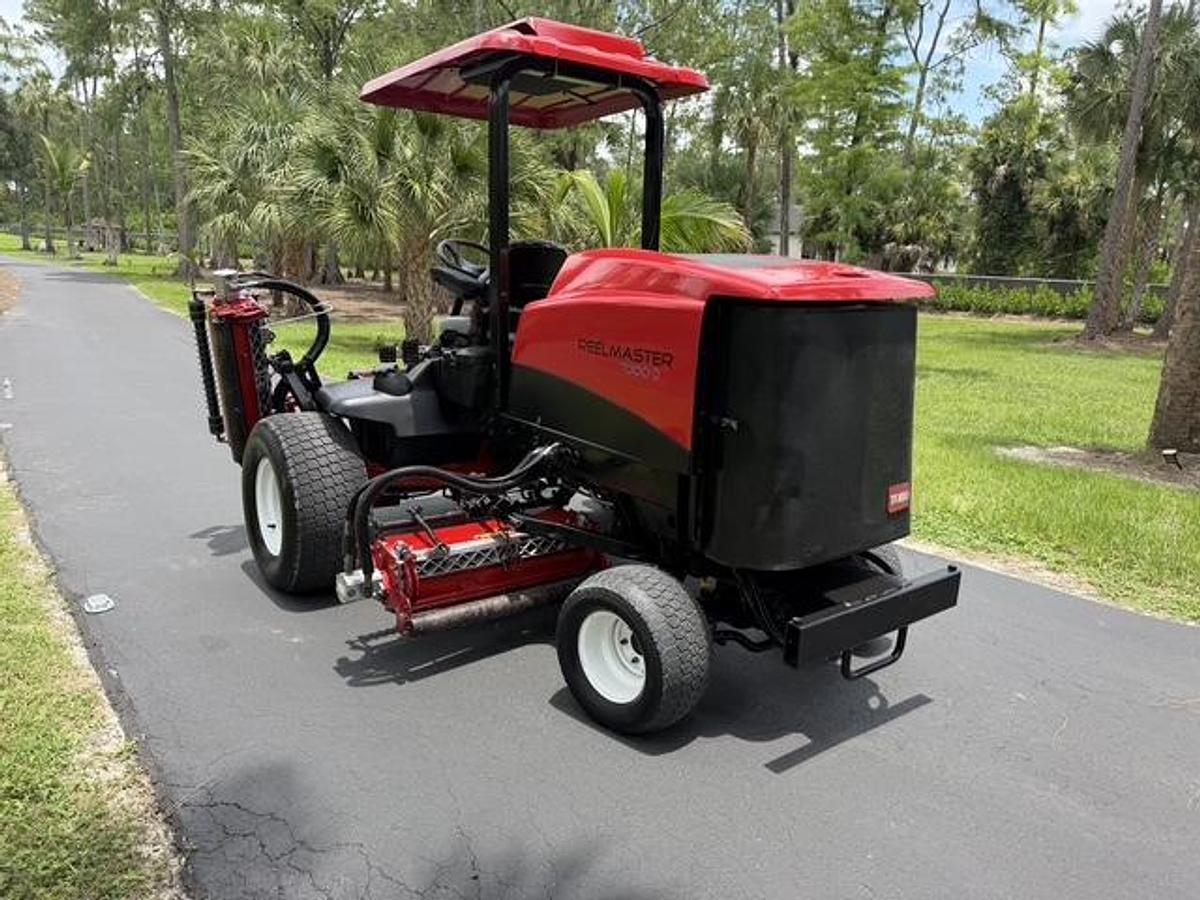

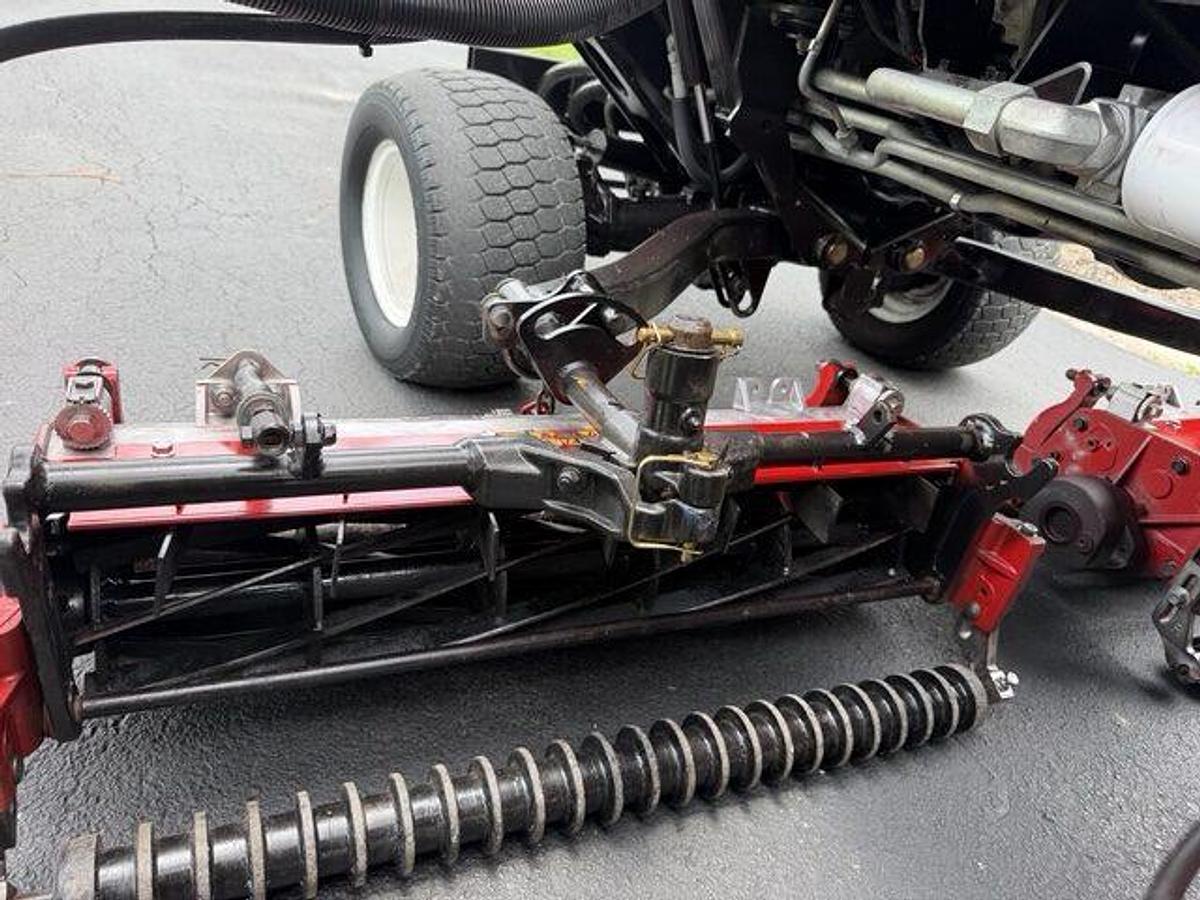

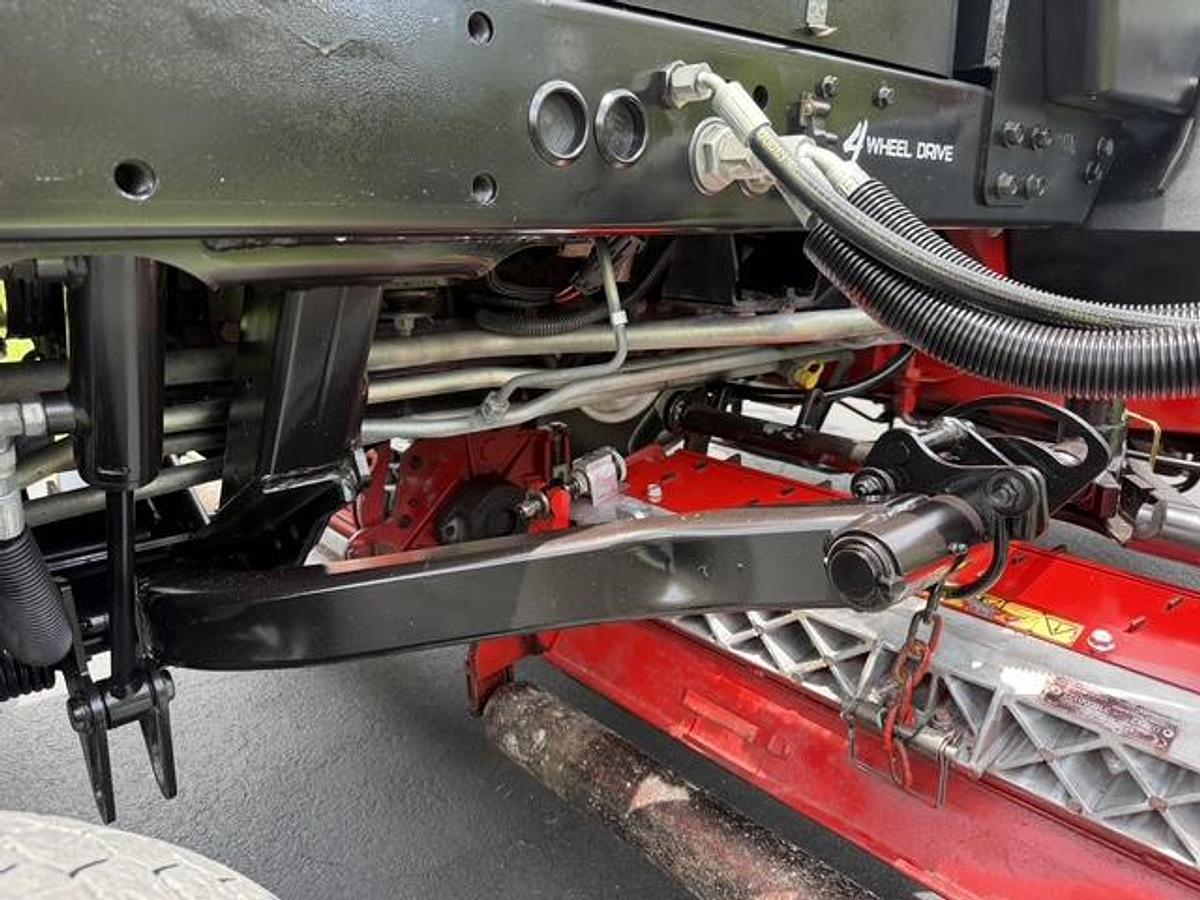

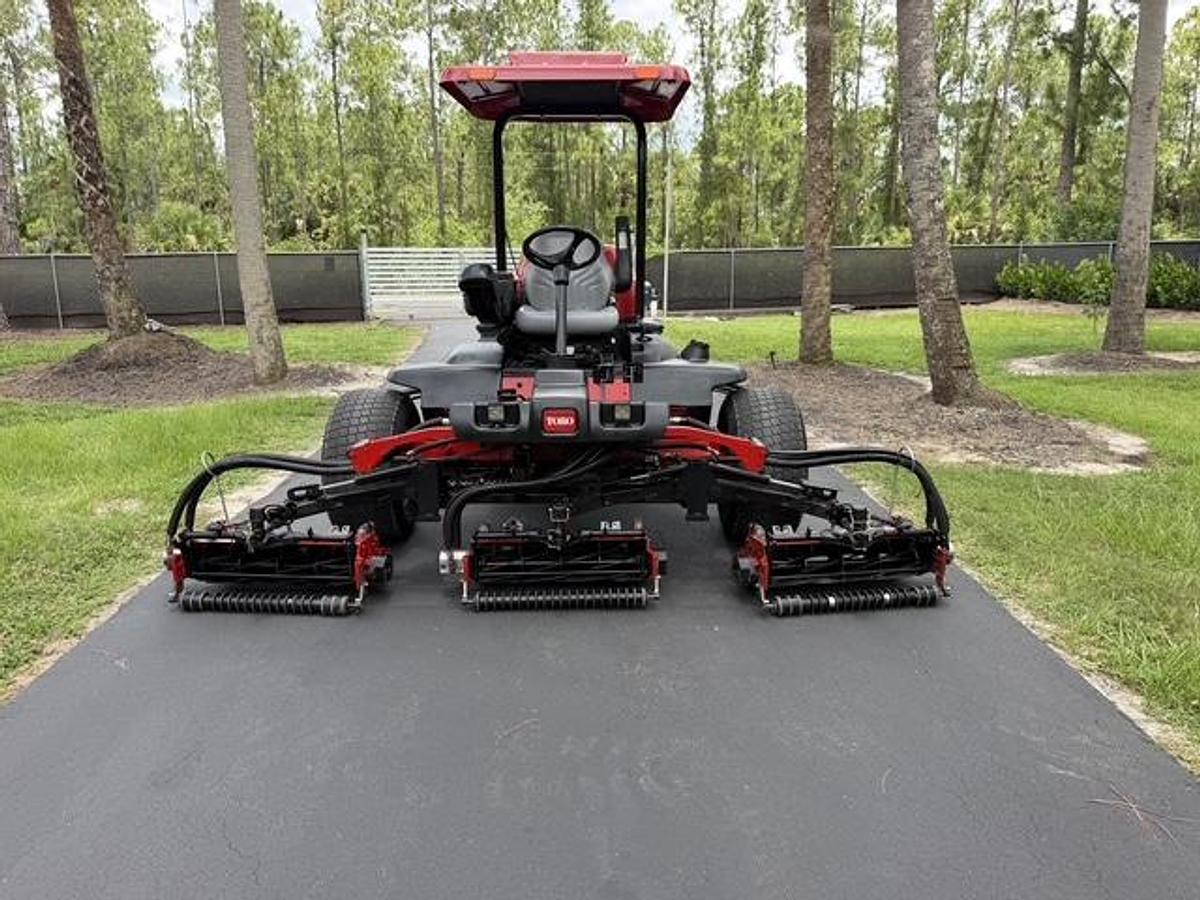

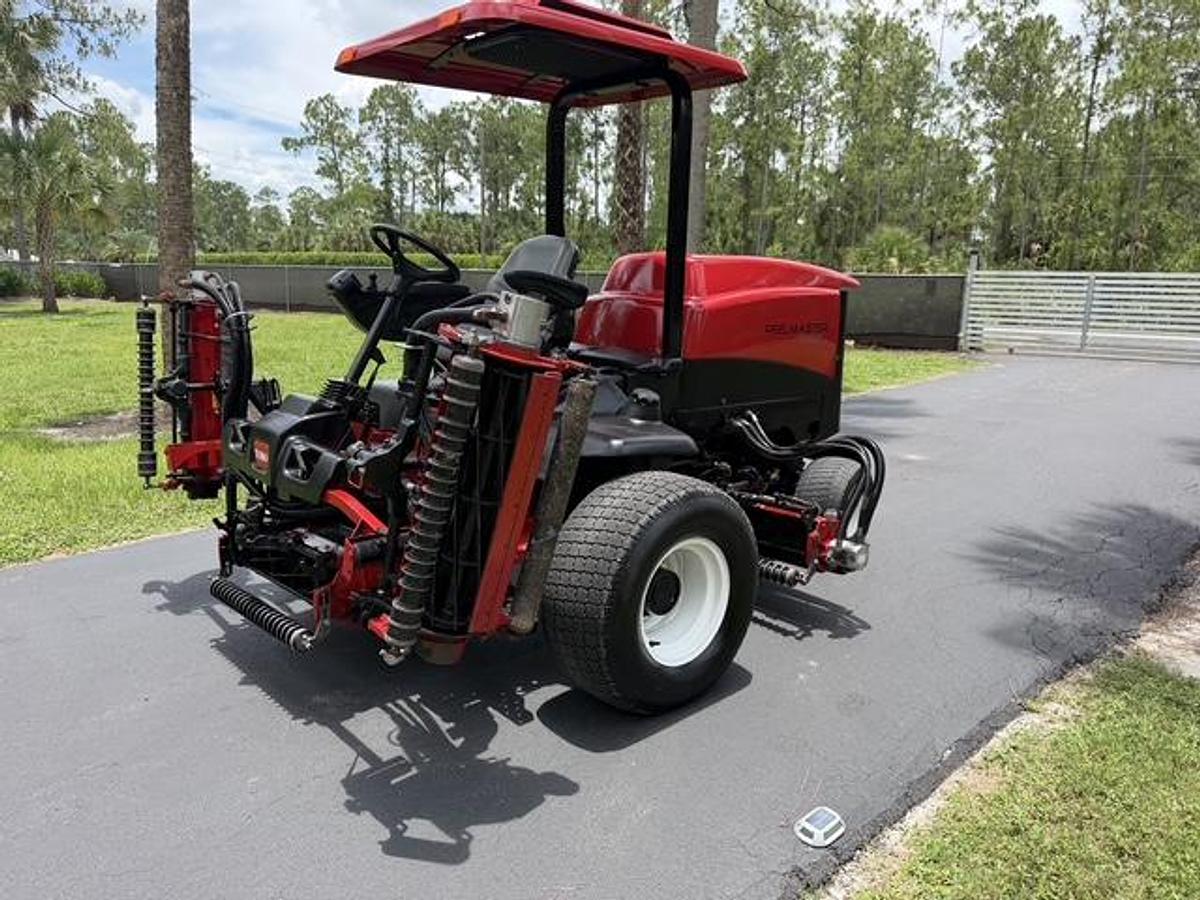

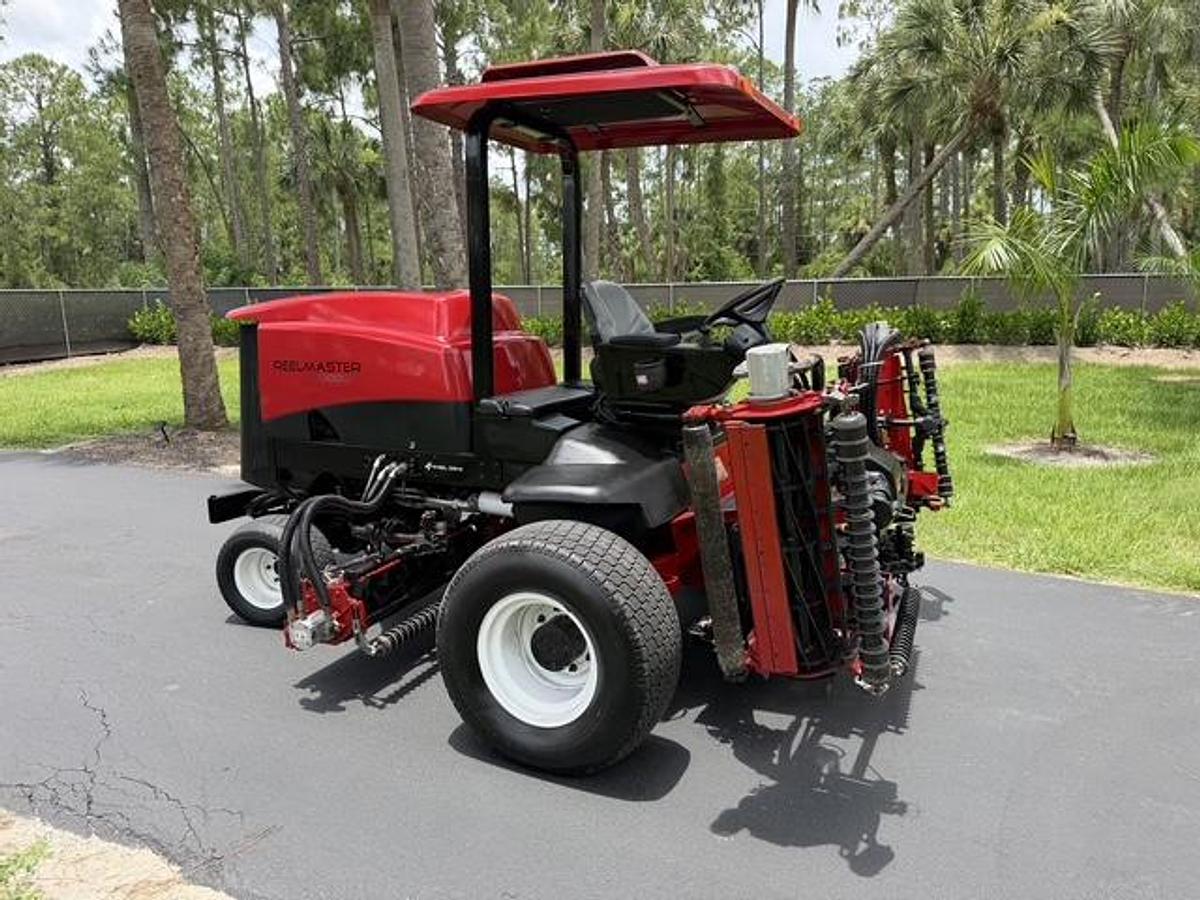

One of Toro’s most reliable mowers, this beautiful 2016 Reelmaster 7000D is ready to work anytime. It’s in excellent condition, with the paint in great condition, fresh oil change and filters, 3700 hours on the unit, freshly sharpened and grinded reels set at a HOC of 1.5 inches with front wide wiehle rollers, and sunshade with fan kit. It’s 4 wheel drive, diesel, and boasts the rear 32 inch reels to make sure everything is cut at any slope.
Specifications
| Manufacturer | Toro |
| Model | 7000D |
| Year | 2016 |
| Condition | Used |
| Stock Number | 00006 |

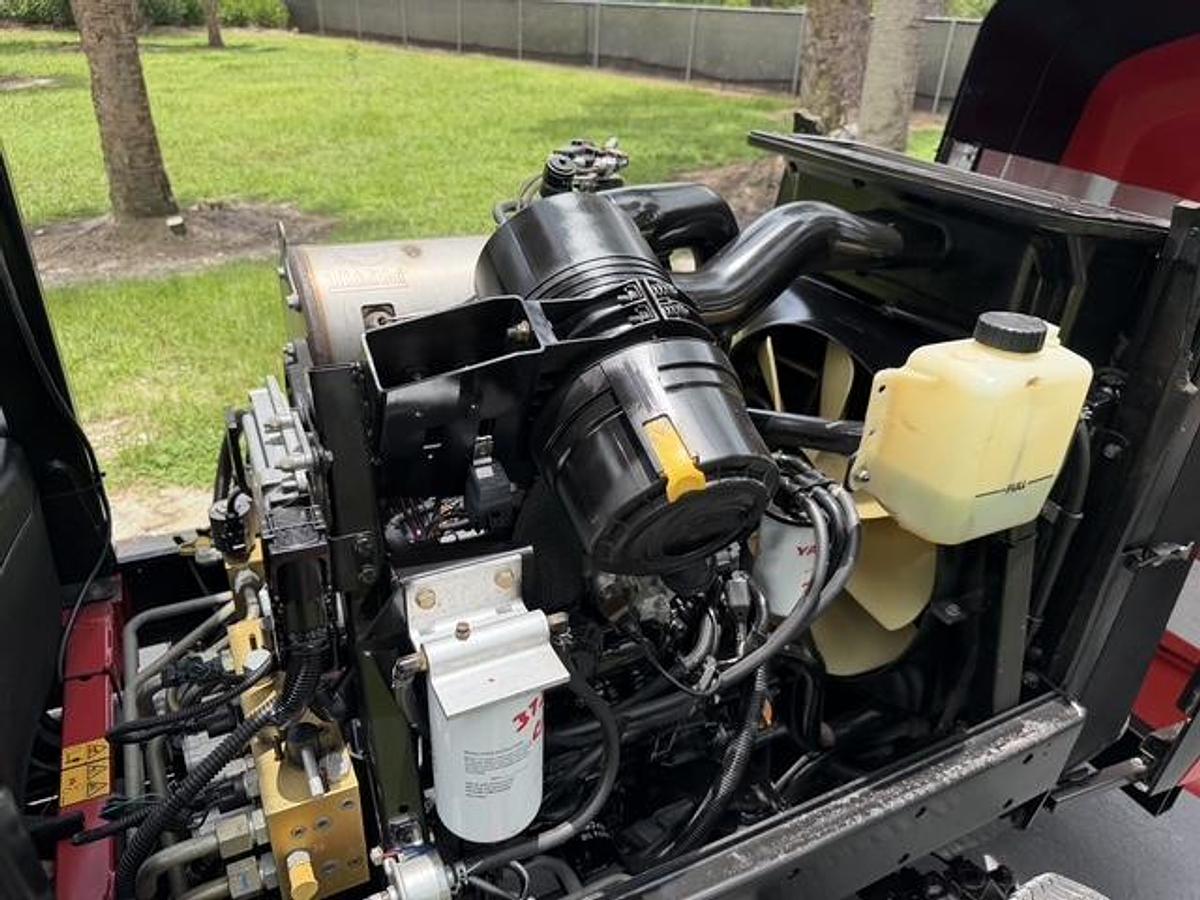

| Air Filter | Dry, replaceable primary and safety elements. |
| Armrests | Standard |
| Battery | 12V |
| Bedknife Adjustment | Dual Precision Adjustment (DPA), bedknife to reel. |
| Blade Style/Type | Reel |
| Blade Type (Description) | EdgeSeries™ DPA radial reels. |
| Cab Unit | N/A |
| Clip Frequency/Backlapping | Manually controlled, variable reel speed for control of clip frequency. Reel speeds are incrementally adjustable between 200 – 1,650 rpm with a backlap speed of 200 rpm. |

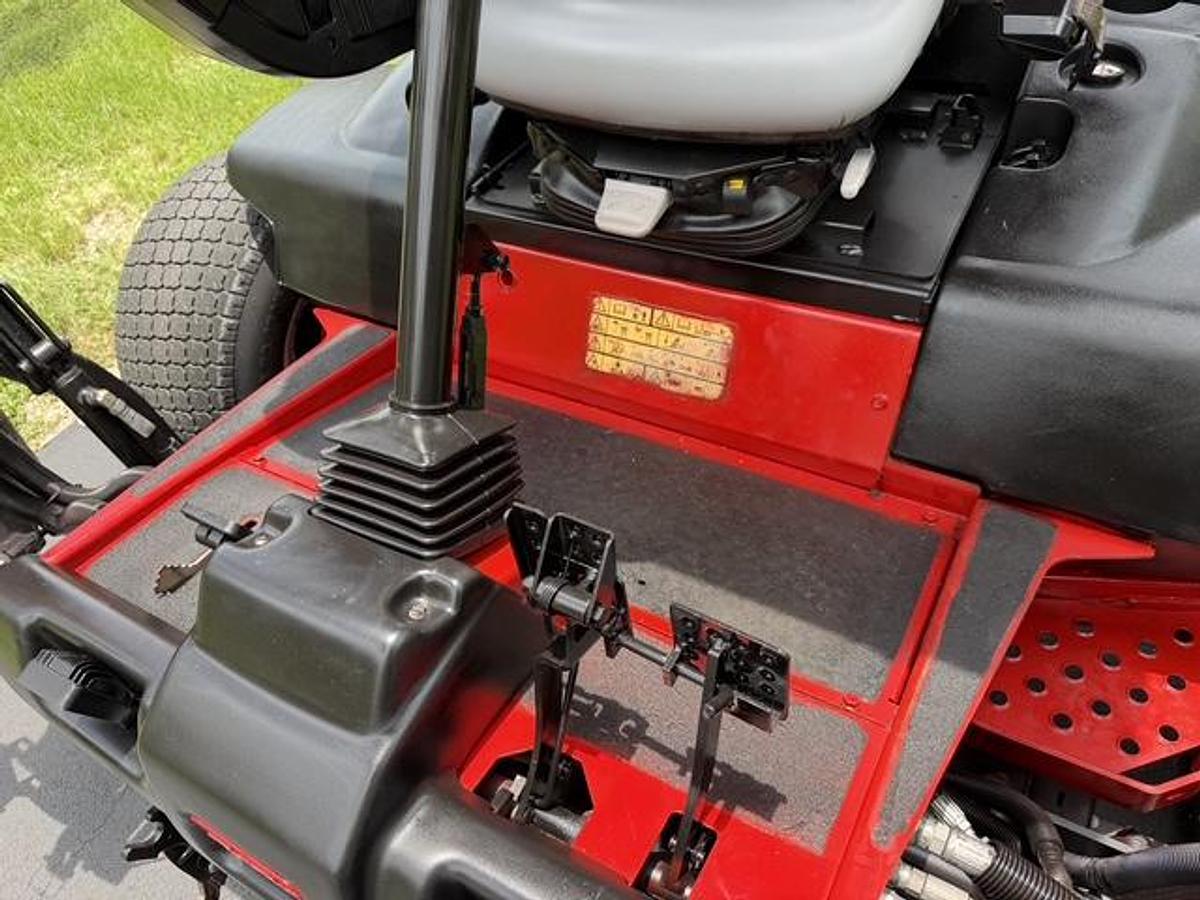

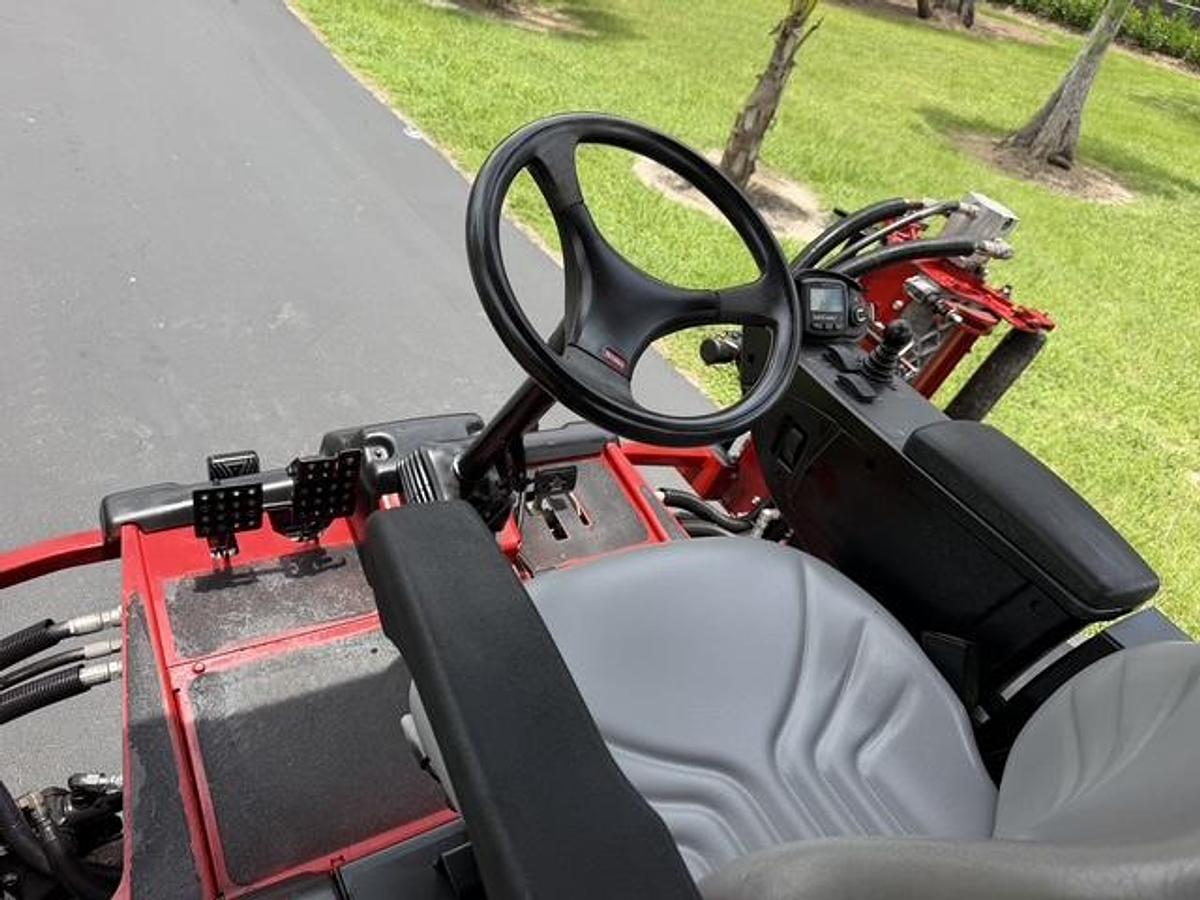

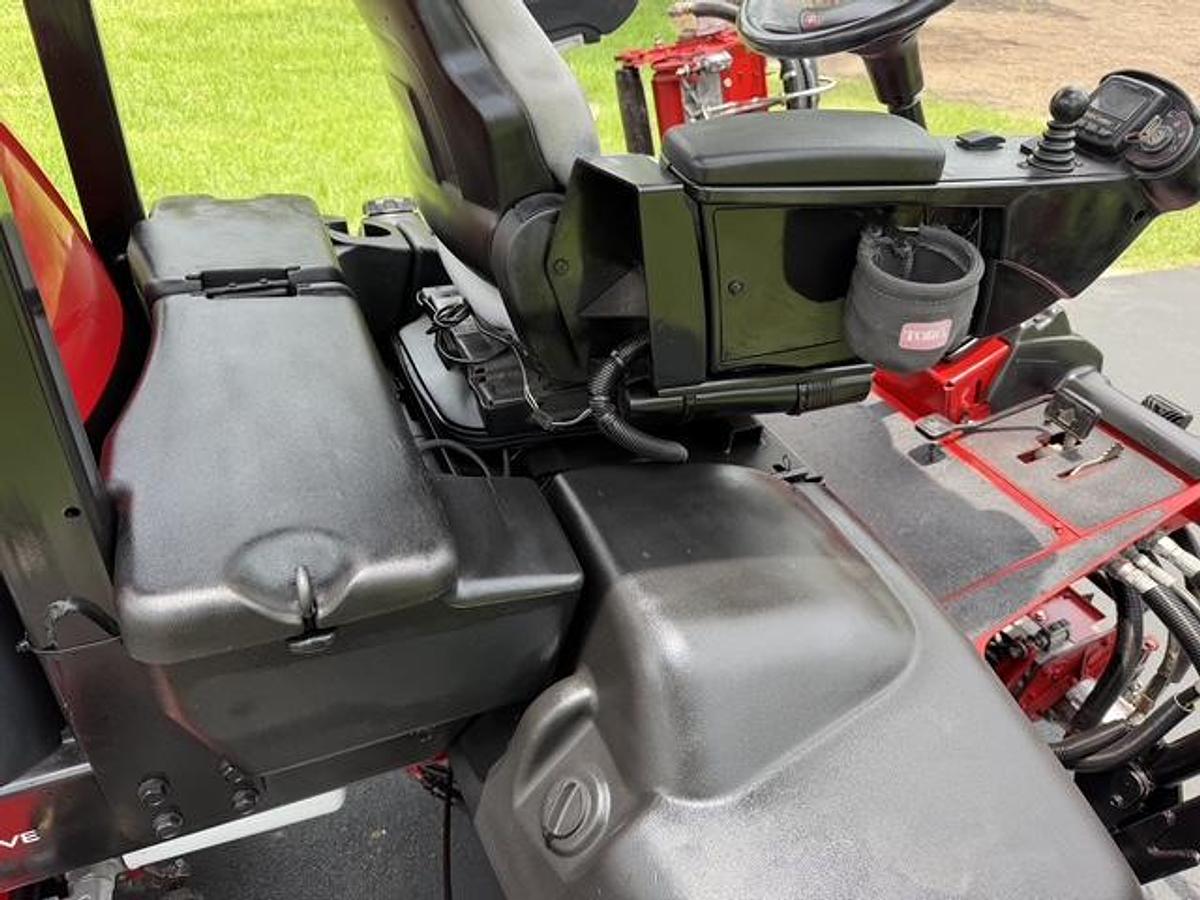

| Controls | Ignition switch, LED headlight switch, hand-operated throttle, foot-operated traction pedal, joystick for cutting unit lift, mow/transport selector switch, lockable individual brake pedals, park brake. |
| Cooling System Description | 9 row single pass cooler with tilt out for cleaning. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and manual reversing capabilities. Rear-mount aluminum radiator (6 fins per inch, 9 quart (8.5 liters) capacity). |
| Cup Holder | Standard |

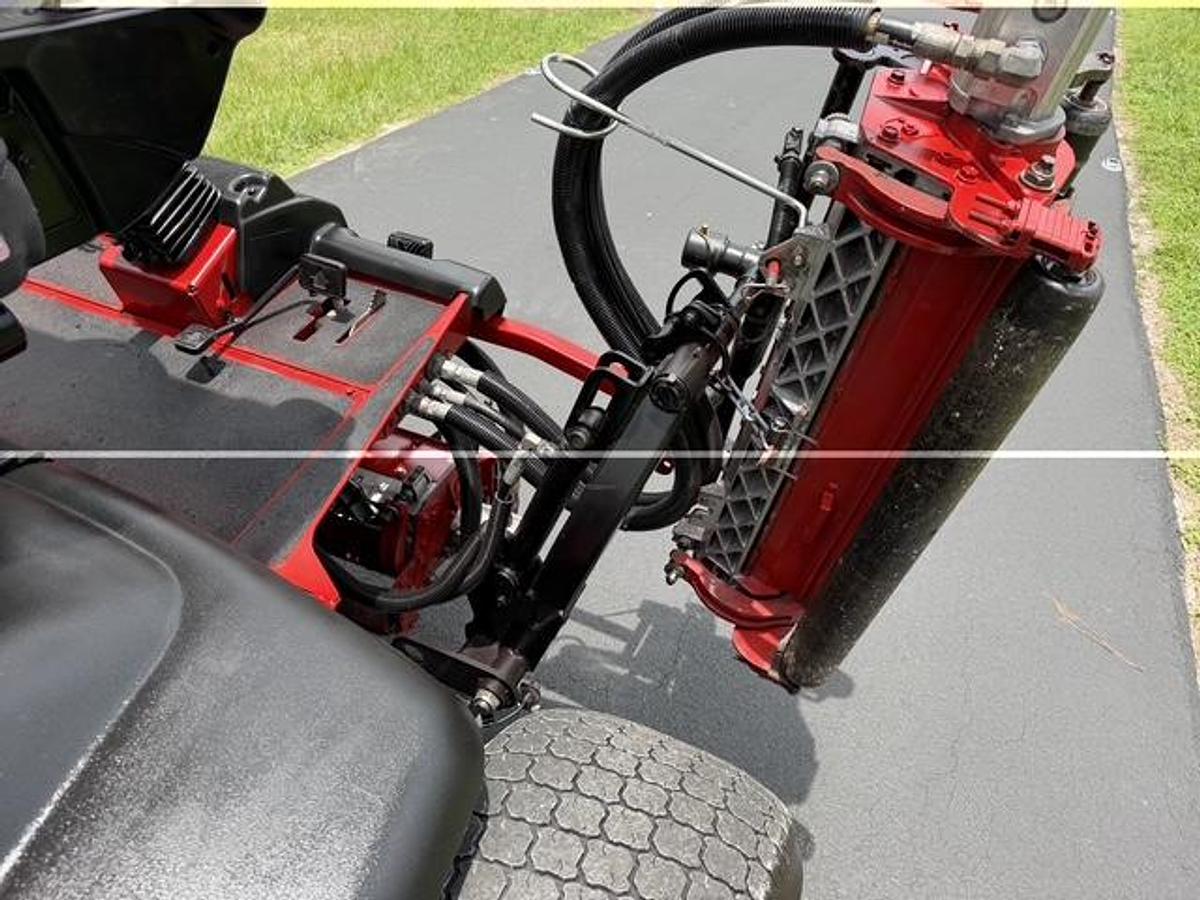

| Cutting Unit Lift/Lower | Hydraulic – front and rear cutting unit lift/lower are sequenced for uniform starting and ending points. |

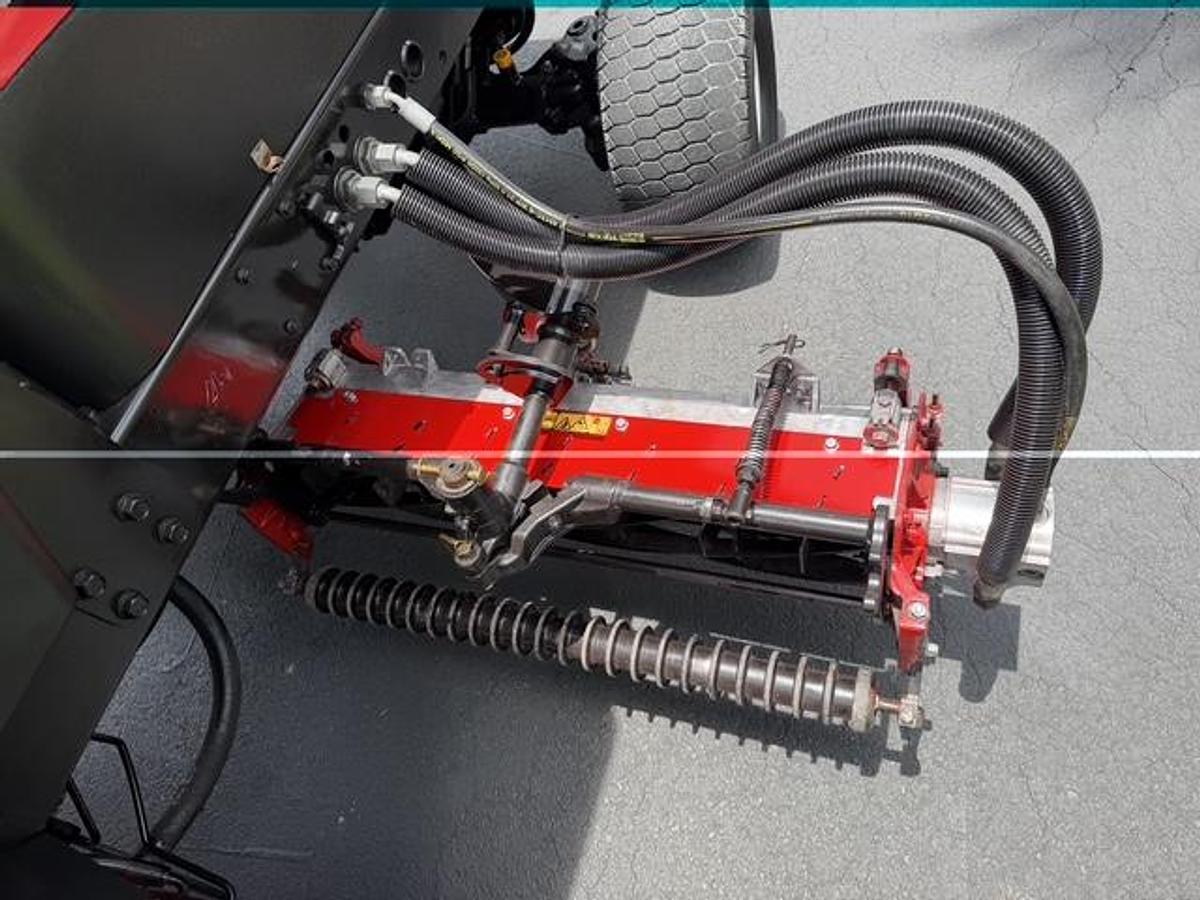

| Cutting Unit Type/Configuration | Hydraulically driven, with adjustable rear weight transfer spring. Interchangeable to all positions with rear throw capability. |
| Drivetrain | Diesel |

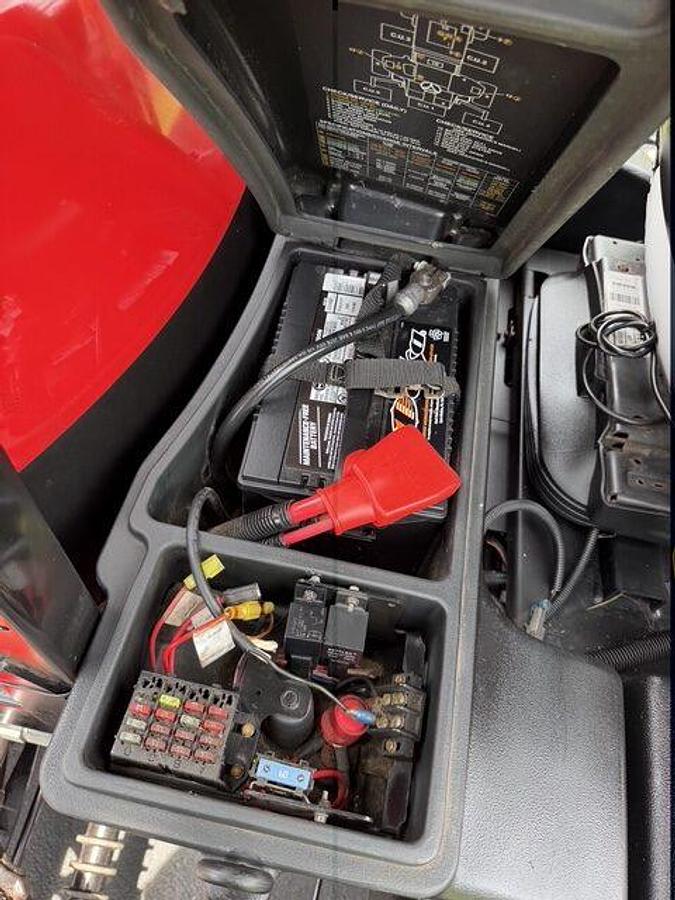

| Electrical System | 12-volt, 650 CCA battery, 80 amp alternator. Overload protection with automotive type fuses. |
| Engine Cooling | Liquid Cooled |
| Fuel / Power Source | Diesel / Biodiesel |
| Fuel Capacity | 22 U.S. gal. (83 L) |
| Fuel Filter | Spin-on fuel filter. |

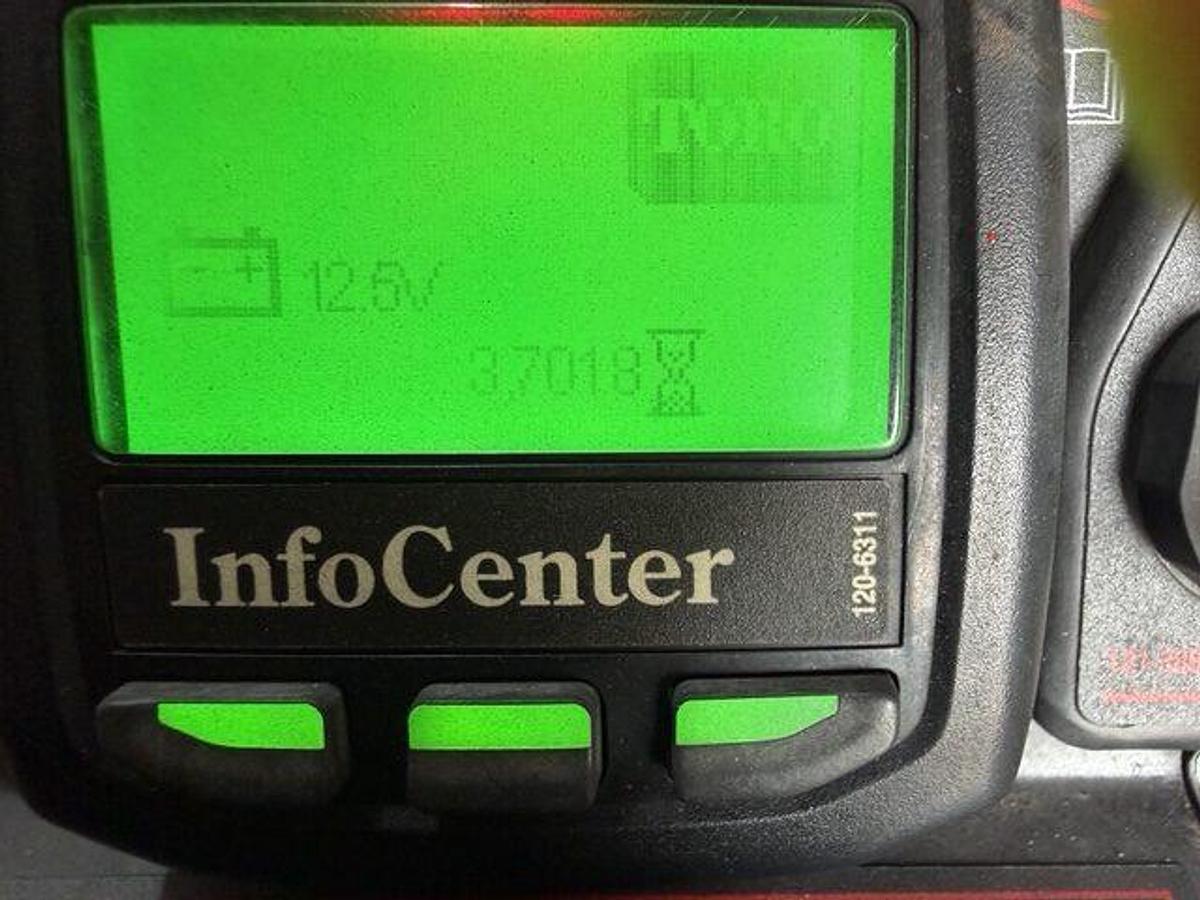

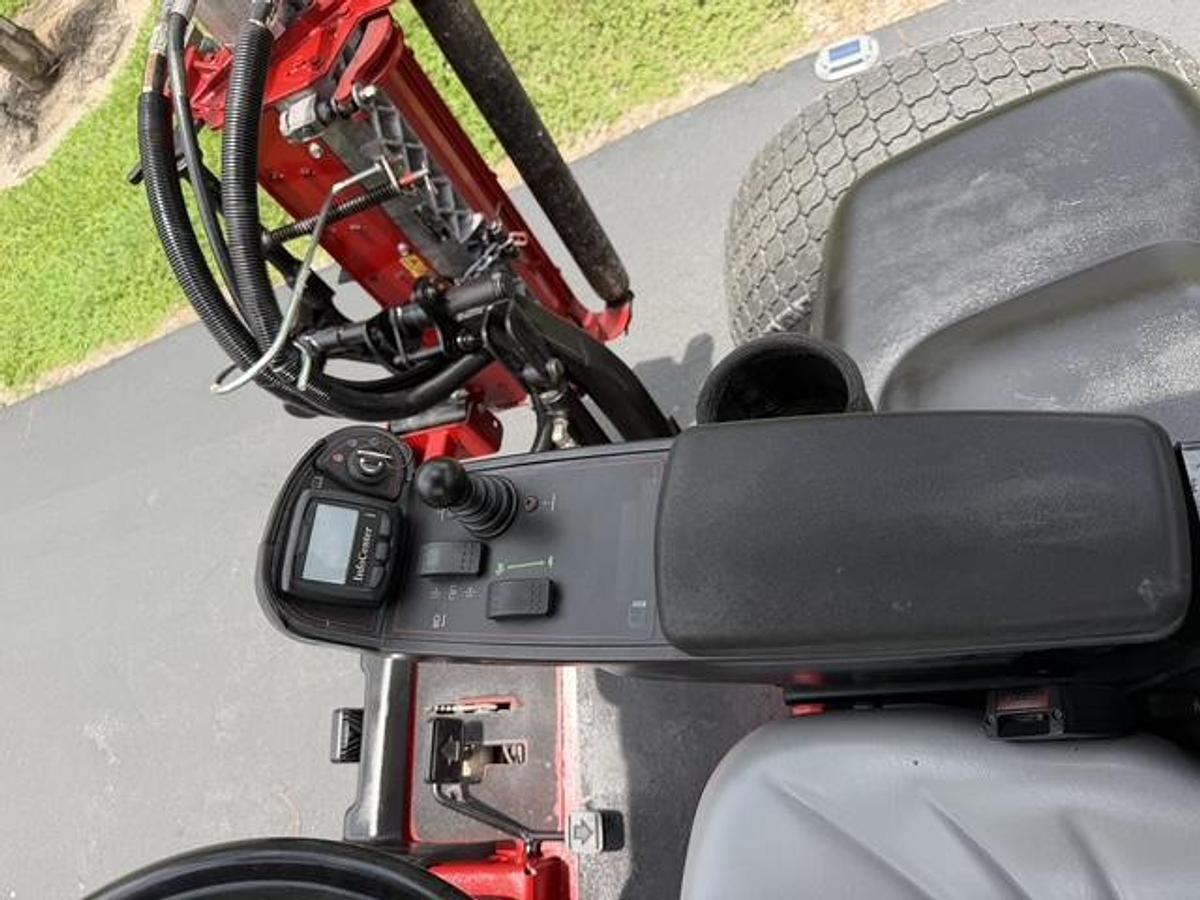

| Gauges/Instrumentation | InfoCenter™: Onboard LCD display shows alerts, faults, service reminders, electrical systems diagnostics, coolant temp., low oil pressure, alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator, lift/lower indicator. |
| Ground Speed – Forward | 0 – 14 mph (0 – 22.5 km/h) |
| Ground Speed – Reverse | 0 – 7 mph (0 – 11 km/h) |
| Height | 87″ (220 cm) |
| Height of Cut Range | 8-Blade: 0.5″ – 2.5″ (13 mm – 64 mm) 11-Blade: 0.25″ – 0.75″ (6 mm – 19 mm) |
| Hydraulic Fluid Capacity | 8.25 U.S. gal. (31.3 L) |
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid |
| IntelliDash™ Capable | Yes |
| Interlocks | Starting, operator presence, mowing, transport and parking brake. |
| Lighting | Standard |
| Main Frame/Chassis | All welded formed-steel frame with integral tie-down anchors. |
| Max Slope Angle | Refer to operator’s manual. |
| Mowing Speed | 0 – 7 mph (0 – 11 km/h) |
| Number of Blades | 11, 8 |
| Oil Capacity | 6 U.S. qt. (5.7 L) |
| Oil Cooler Description | Aluminum side-mounted cooler. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and manual reversing capabilities |

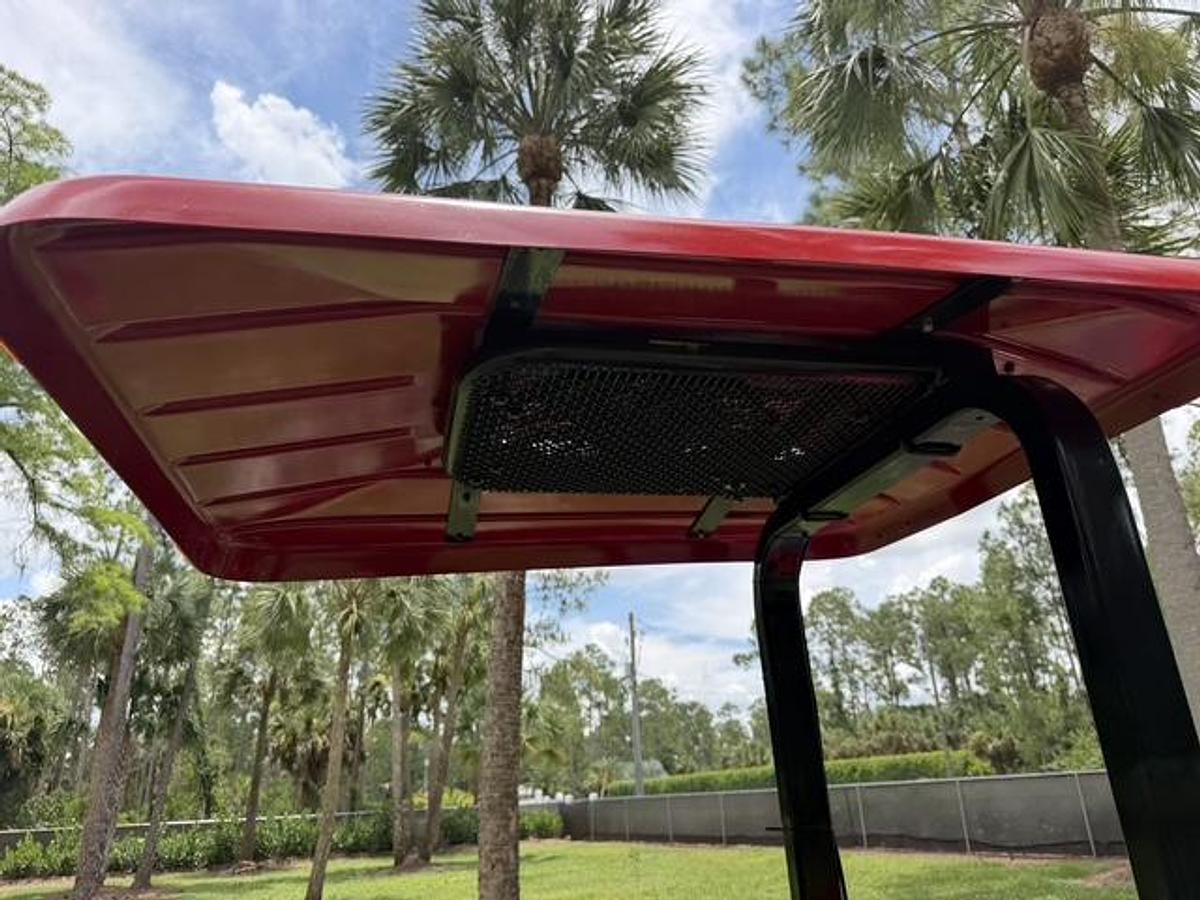

| Optional Accessories | Sunshade with operator cooling fan. |
| Overall Width | 121″ (307 cm) with 27″ cutting units, 126″ (320 cm) with 32″ cutting units |
| Parking/Service Brakes | Mechanically actuated, internal wet disc brakes. Individual foot-operated steering brake control of left and right wheel or lock pedals together. |
| Power Steering | Yes |

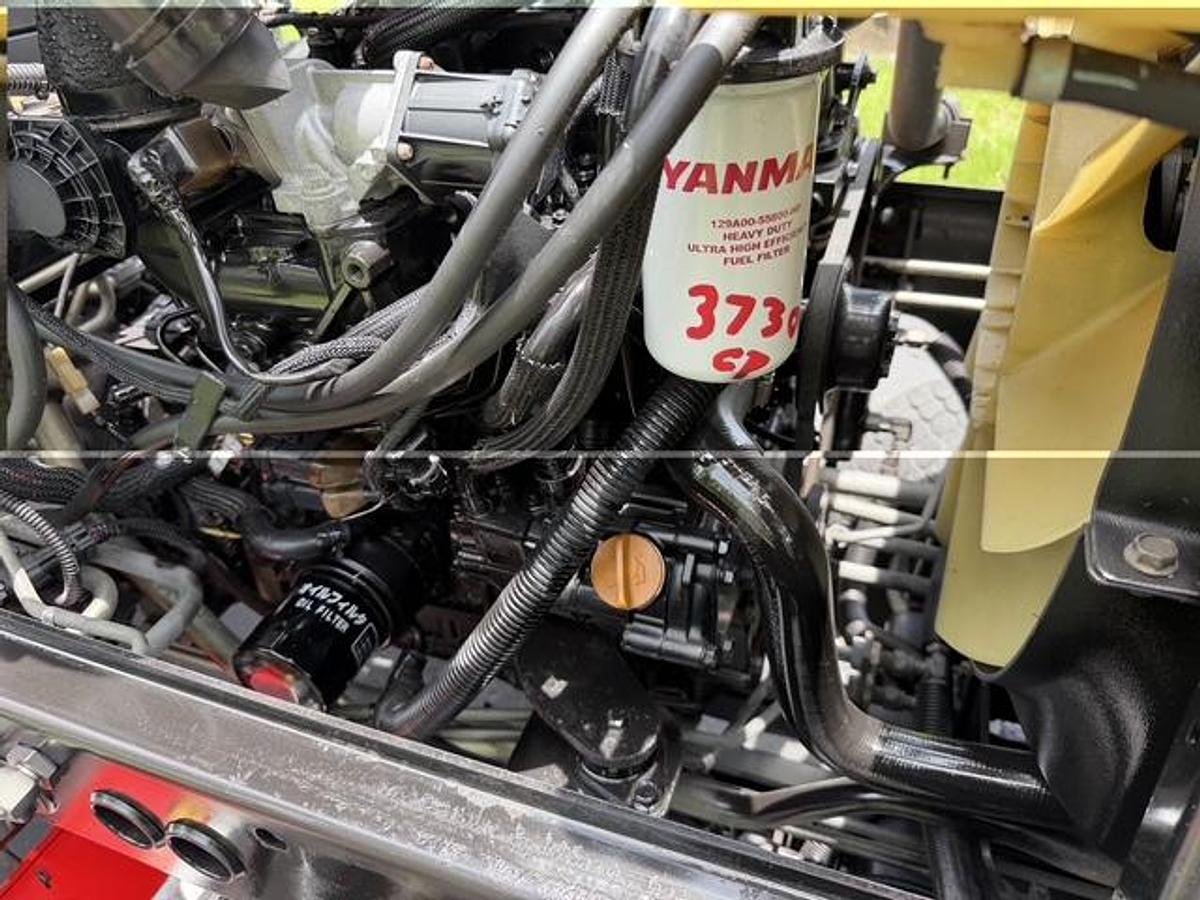

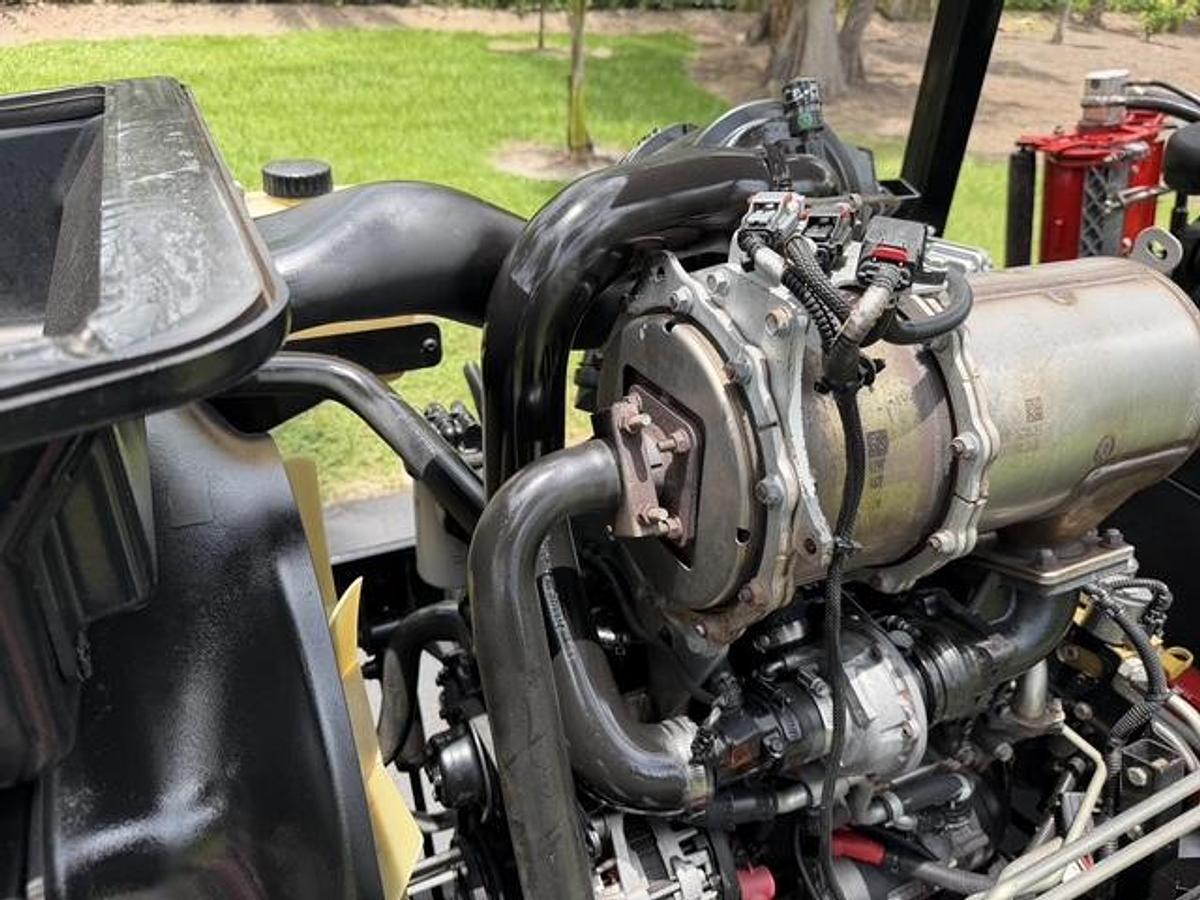

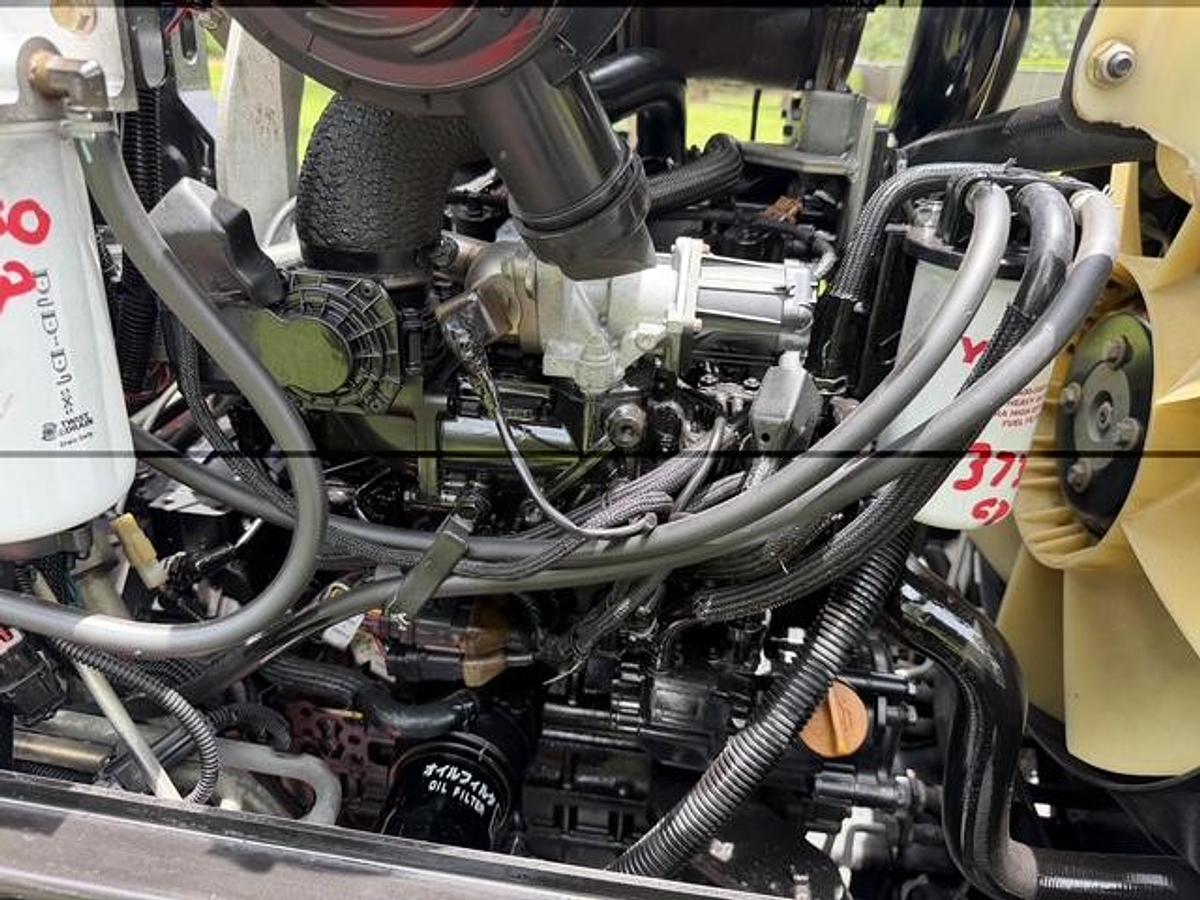

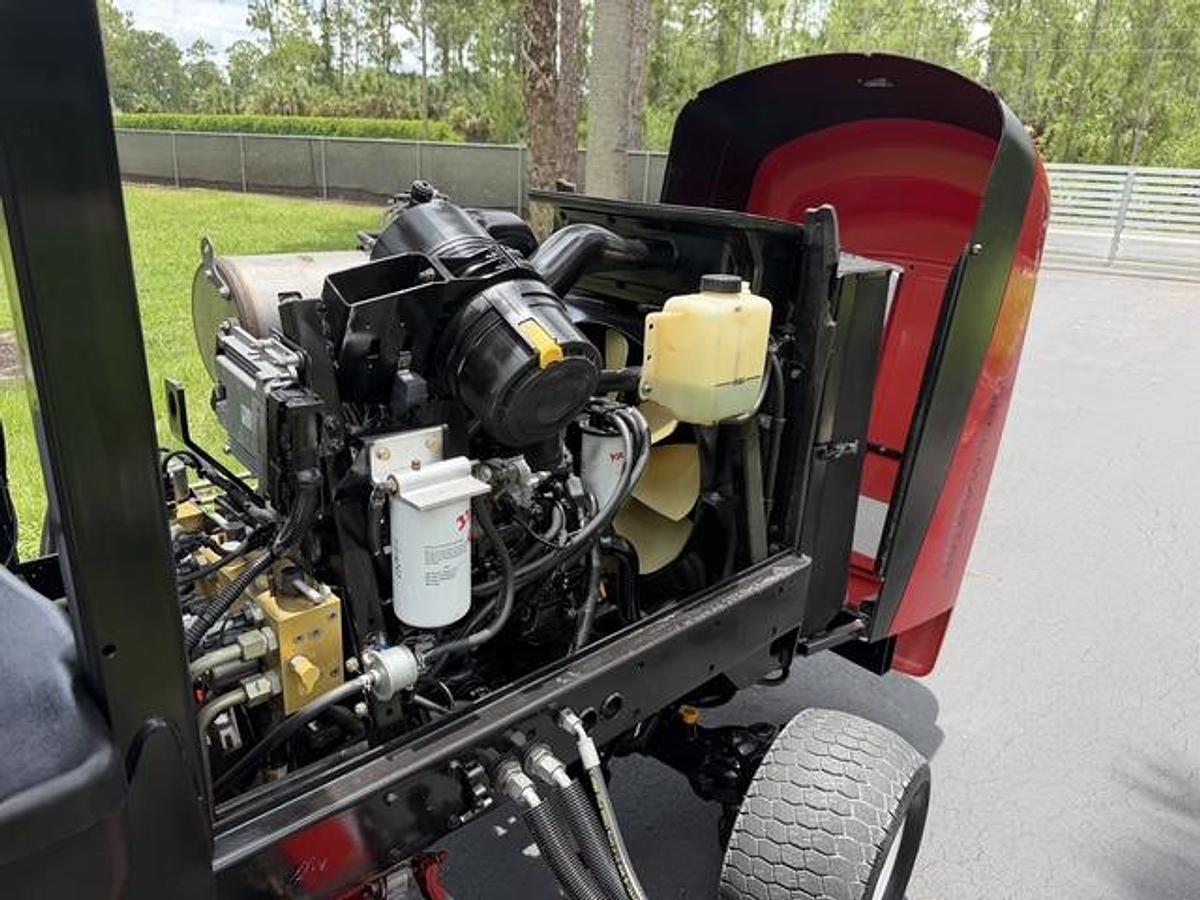

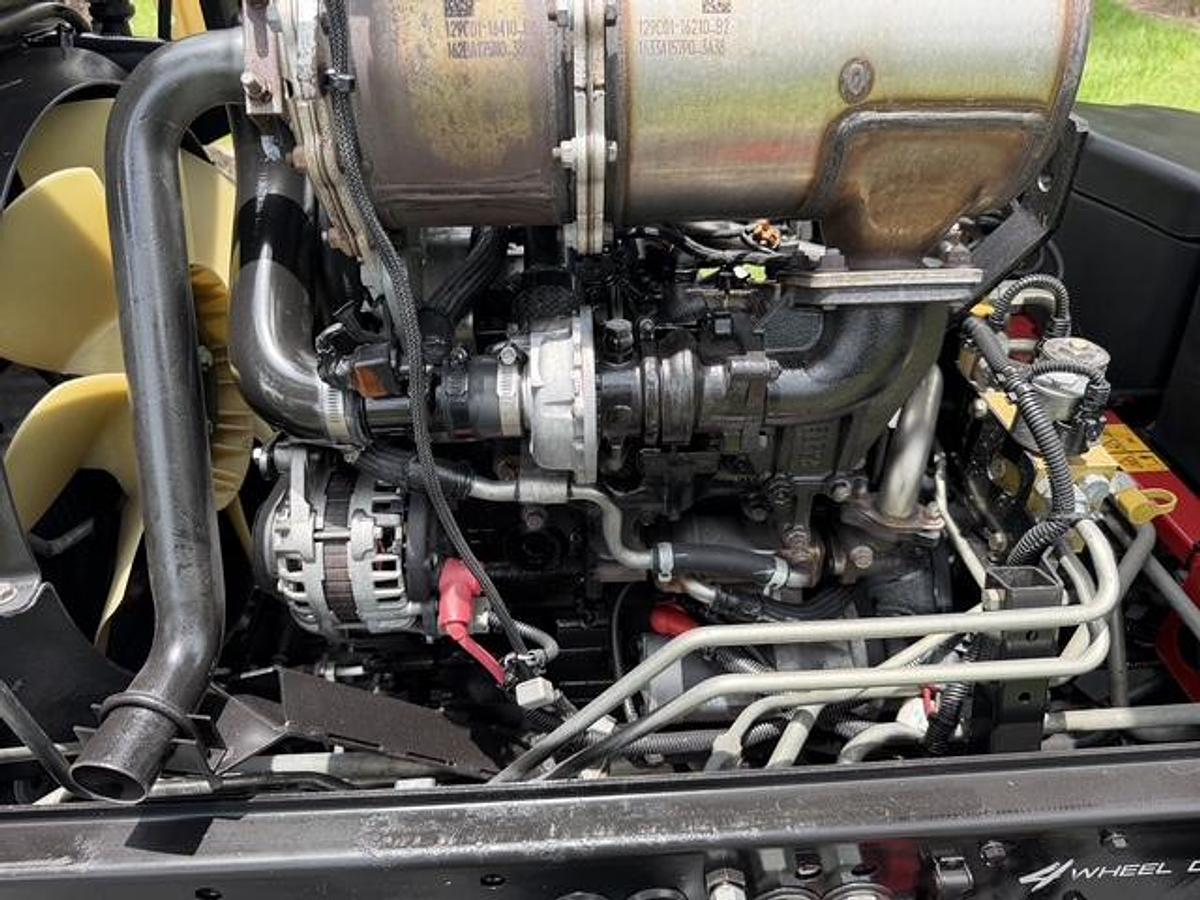

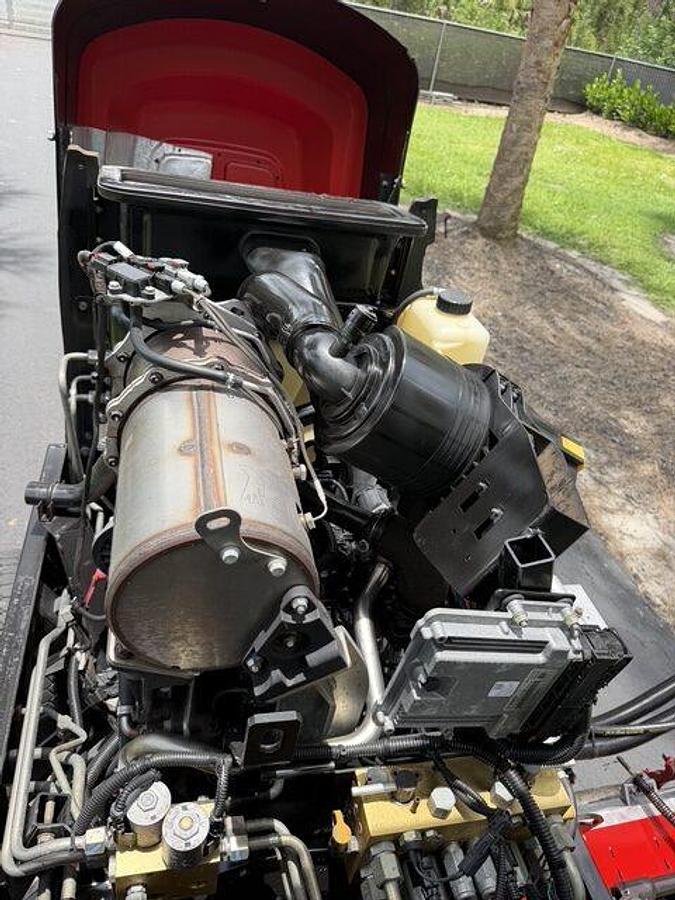

| Power Train (Engine Description) | Yanmar® 4-cylinder, liquid-cooled diesel engine, 55 hp (41 kW). Tier IV compliant. |
| Product Length | 136″ (345 cm) with 27″ cutting units, 141″ (358 cm) with 32″ cutting units |
| Reel Diameter | 7 in. (17.8cm) |
| Reel/Cylinder Drive | Hydraulic |

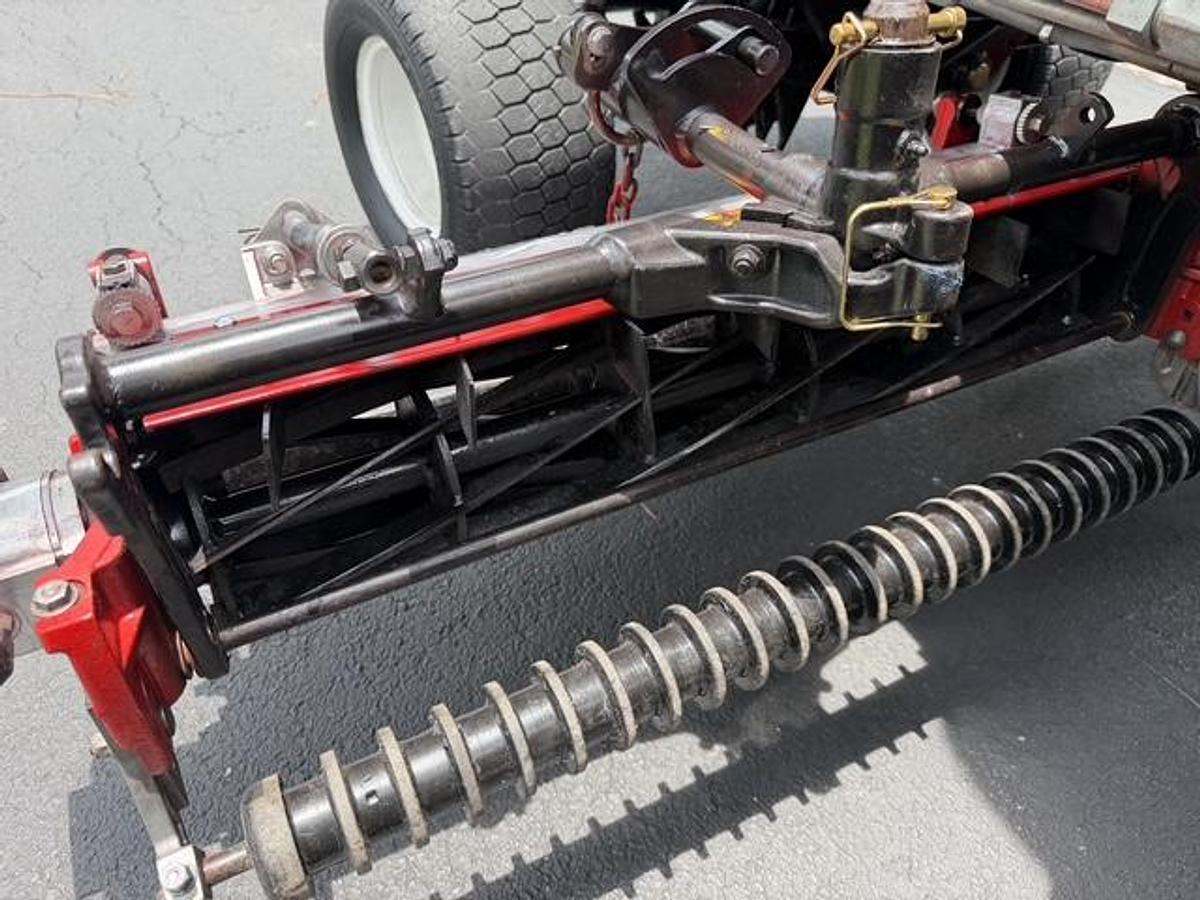

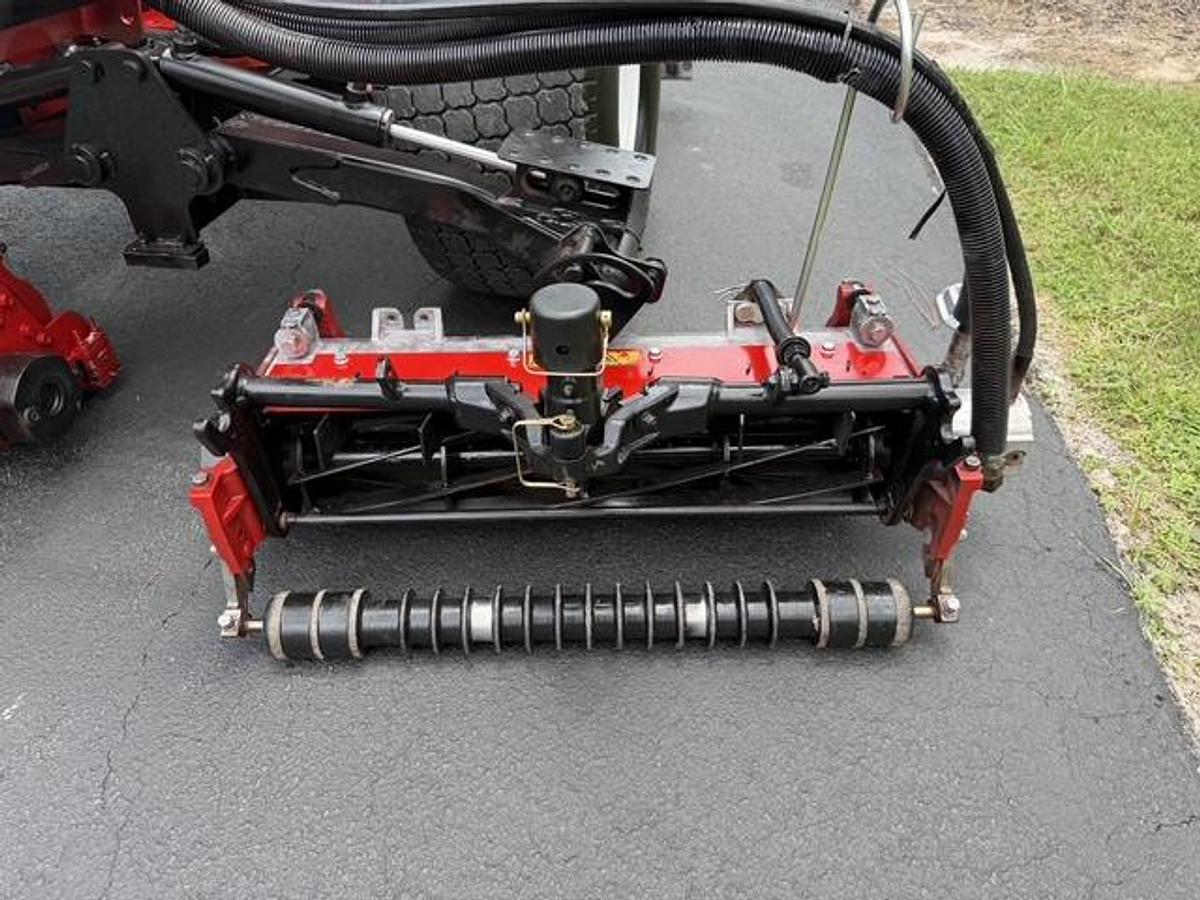

| Rollers | 3″ (7.6 cm) diameter, deep groove plastic front Wiehle roller. 3.0″ |
| Safety/Operator Safety | 2-post ROPS and retractable seat belts standard. |

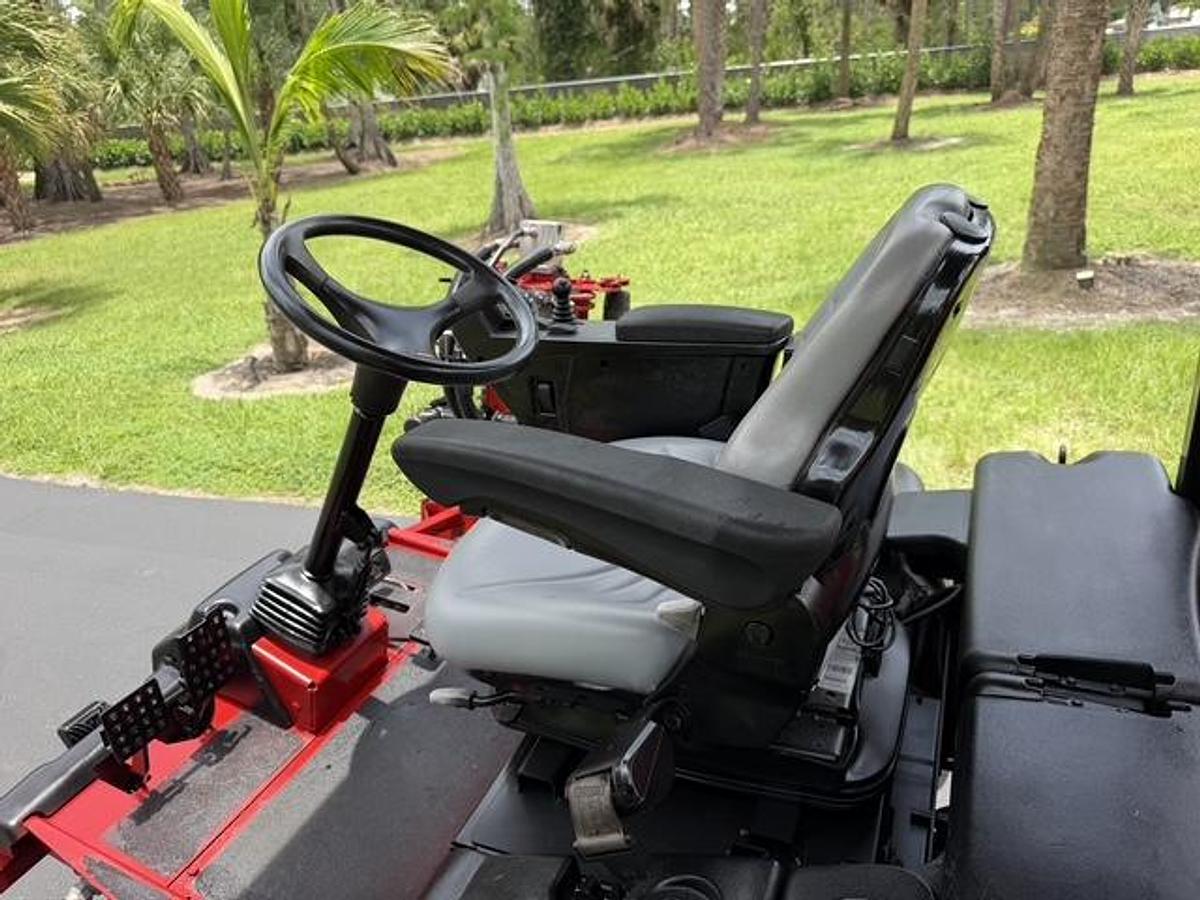

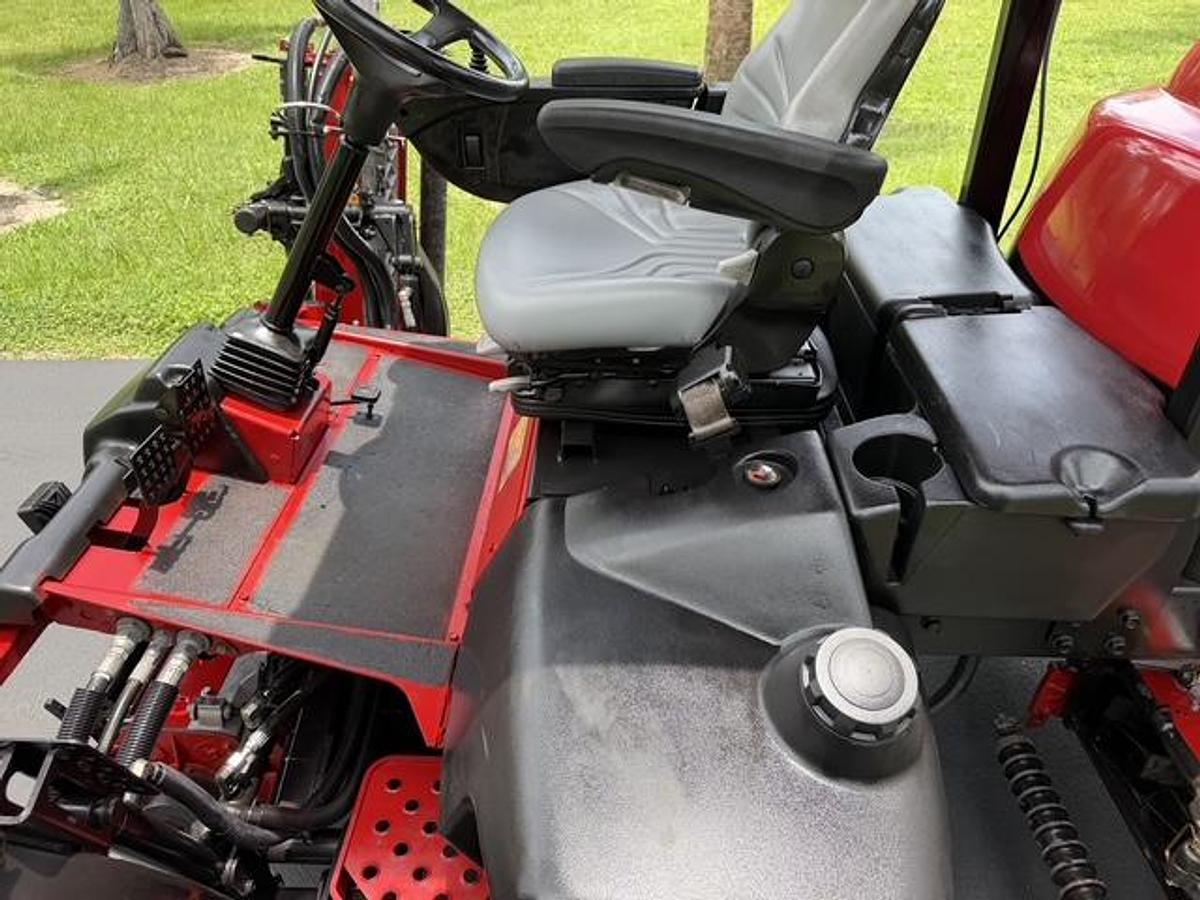

| Seat | Premium air ride suspension seat with full range of adjustments; retractable seat belt. |
| Starting | Switch |
| Steering System Description | Power steering with dedicated power source, tilt steering. |
| Tires – Front | 31″ x 13.5″ – 15″, 4-ply, Turf Tire |
| Tires – Rear | 20″ x 12″ – 10″, 4-ply, Turf Tread |
| Traction Drive | 4WD |
| Traction Drive (System) | Full-time, bi-directional, hydrostatic, closed-loop, 4WD transmission. |
| Transport Width | 94″ (239 cm) |
| Turning Circle (Diameter) | 119″ (302.3 cm) transport |
| Weight | 4,300 lbs. (1950 kg) – with full fluids, no cutting units. |
| Width of Cut | 121″ (307 cm) or 126″ (320 cm) |
