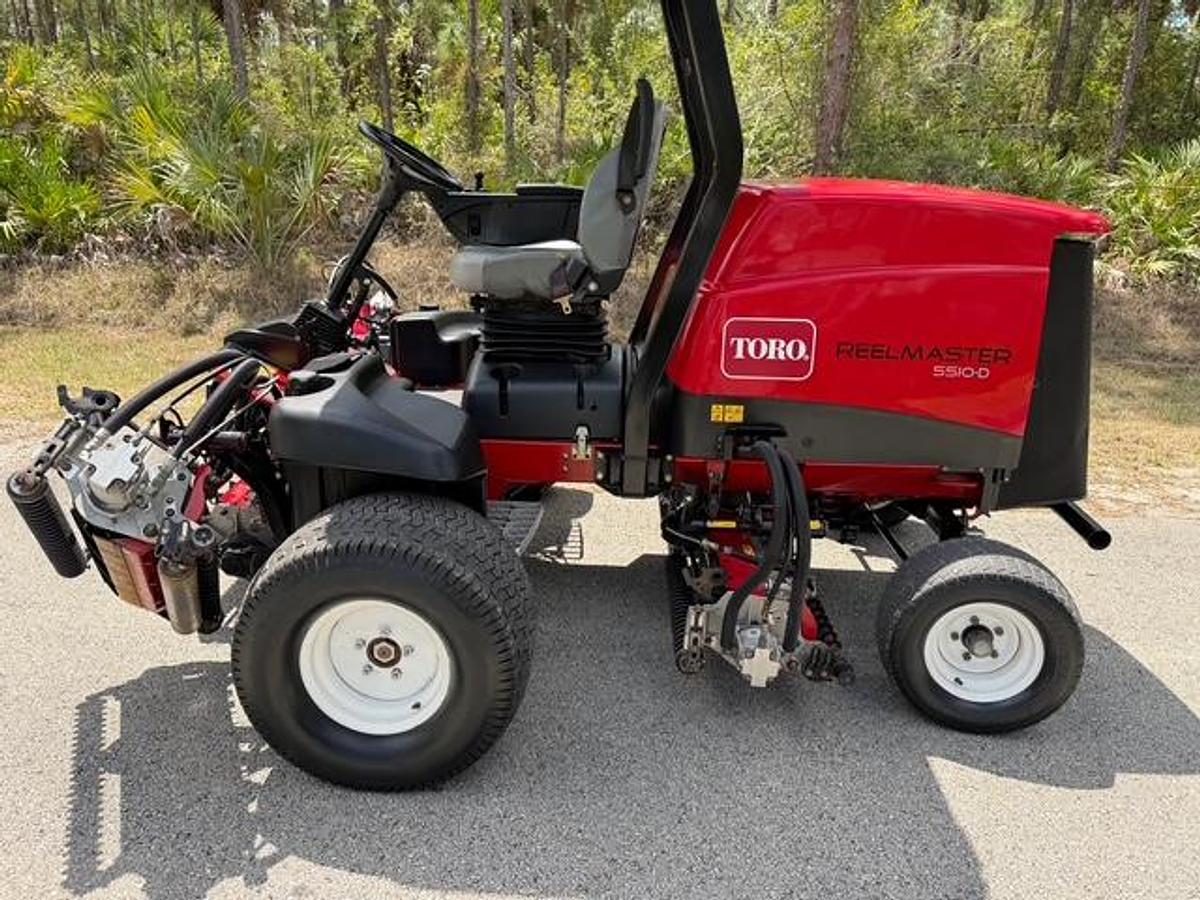

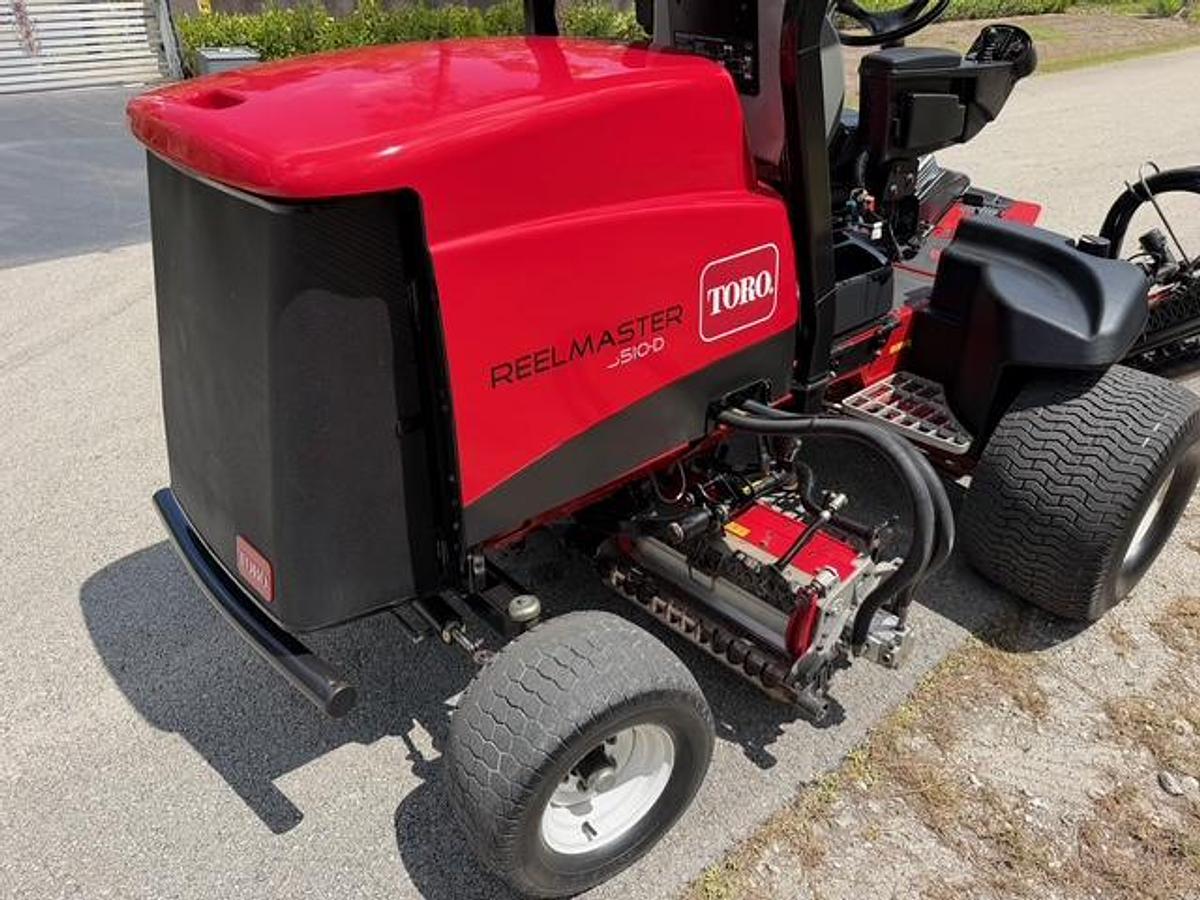

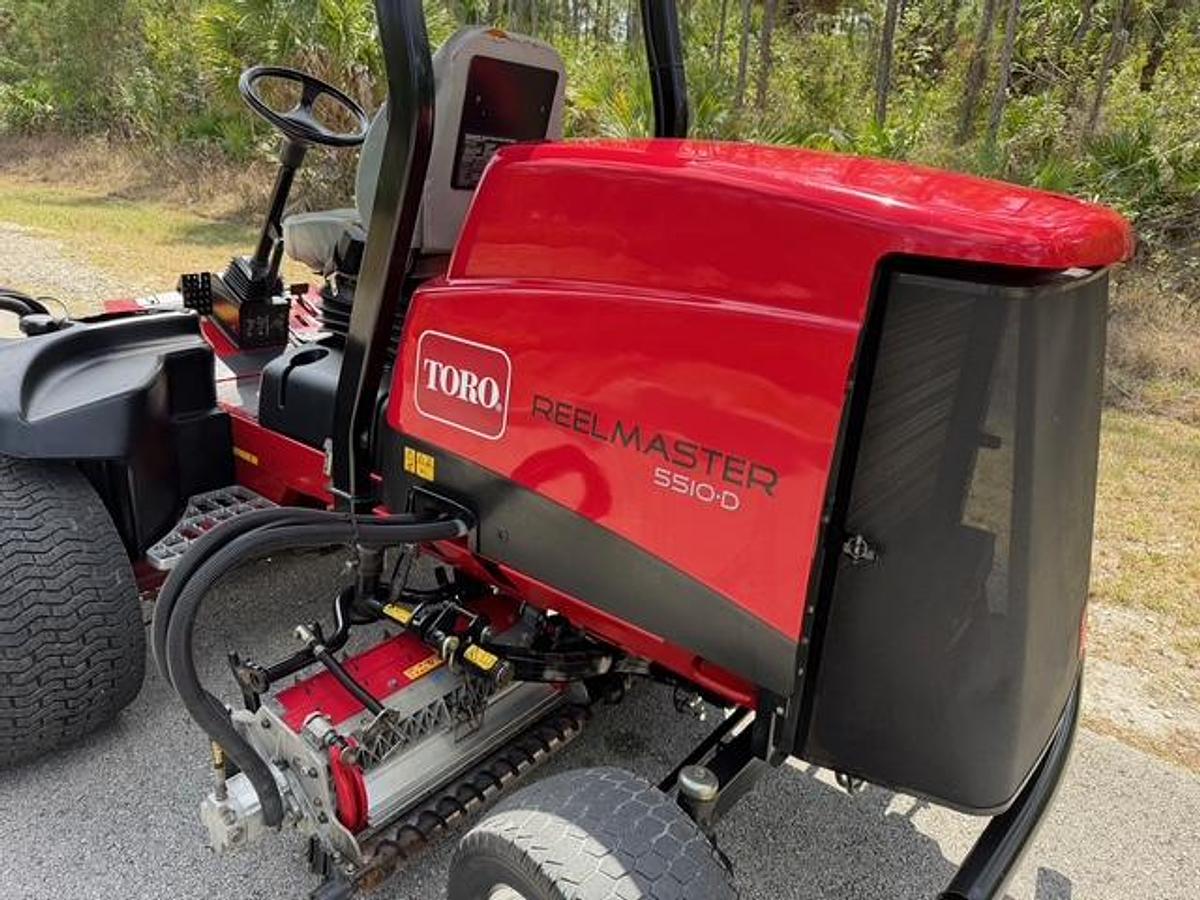

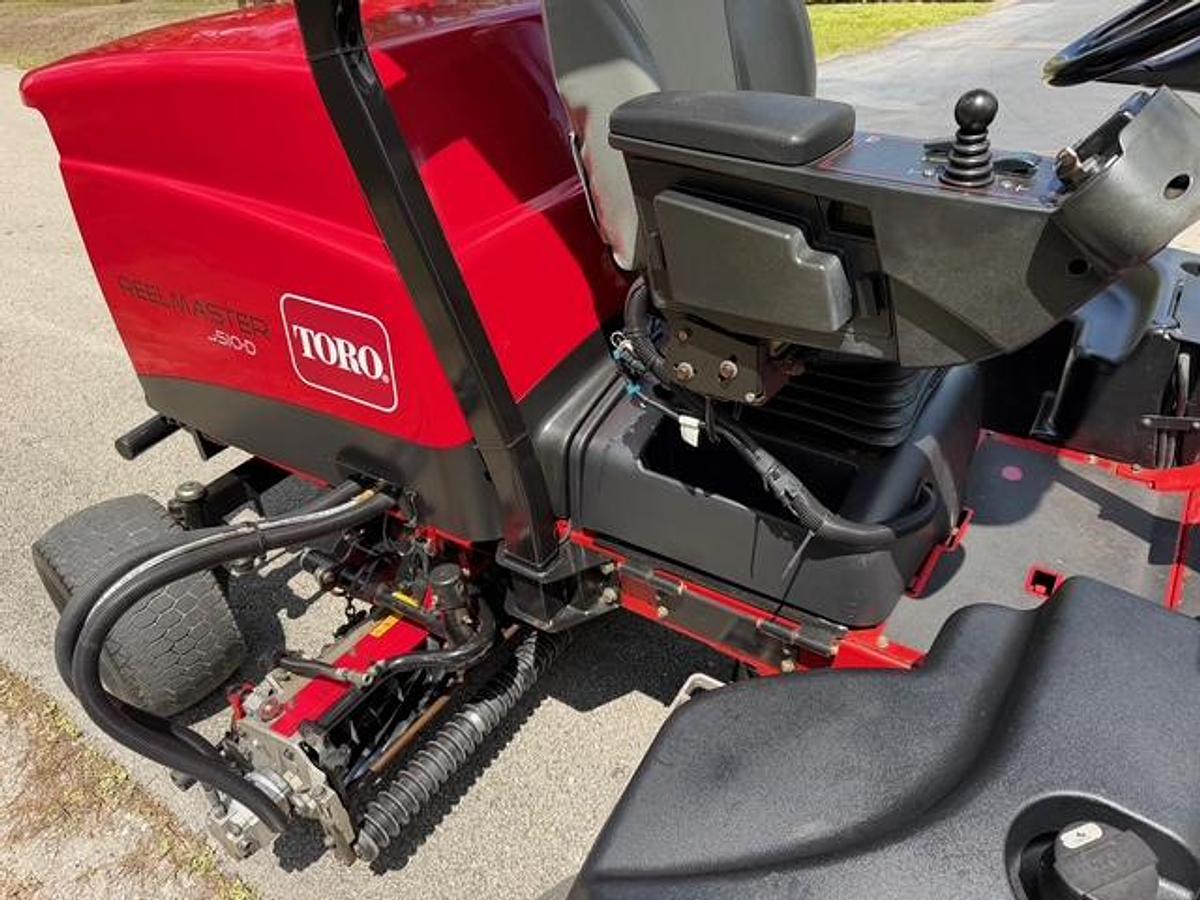

2020 Toro Reelmaster 5510-D Model 03607 with New Reels
$32,500
Description

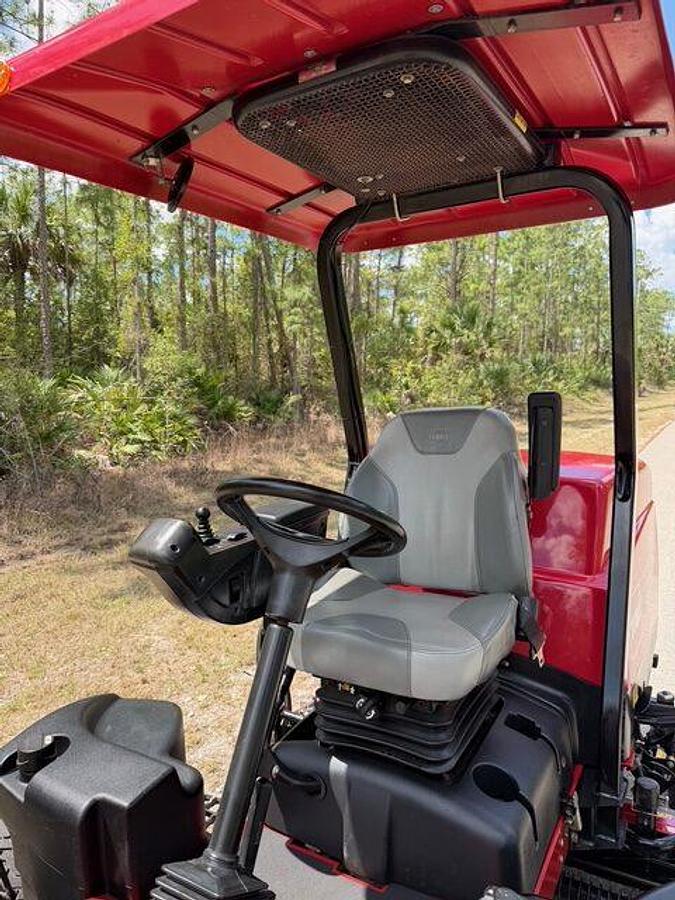

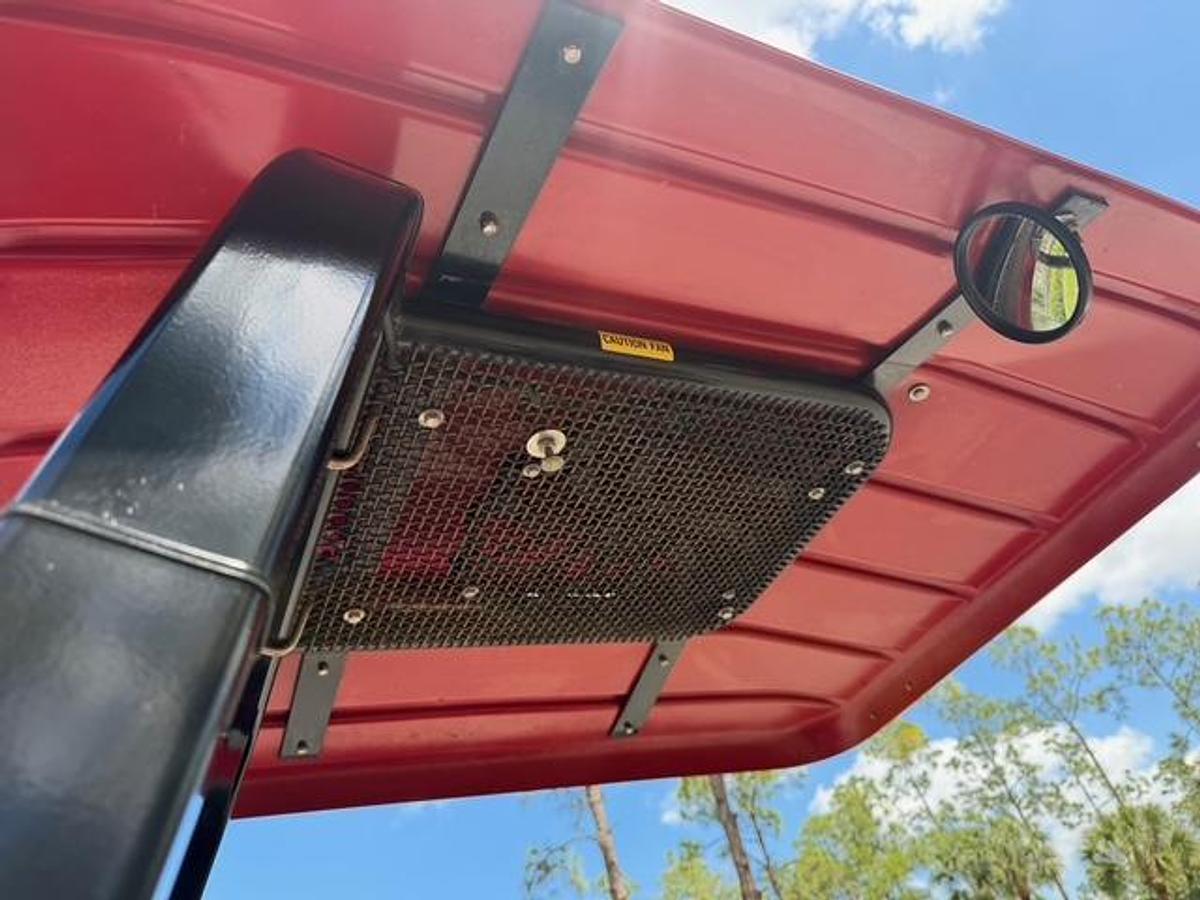

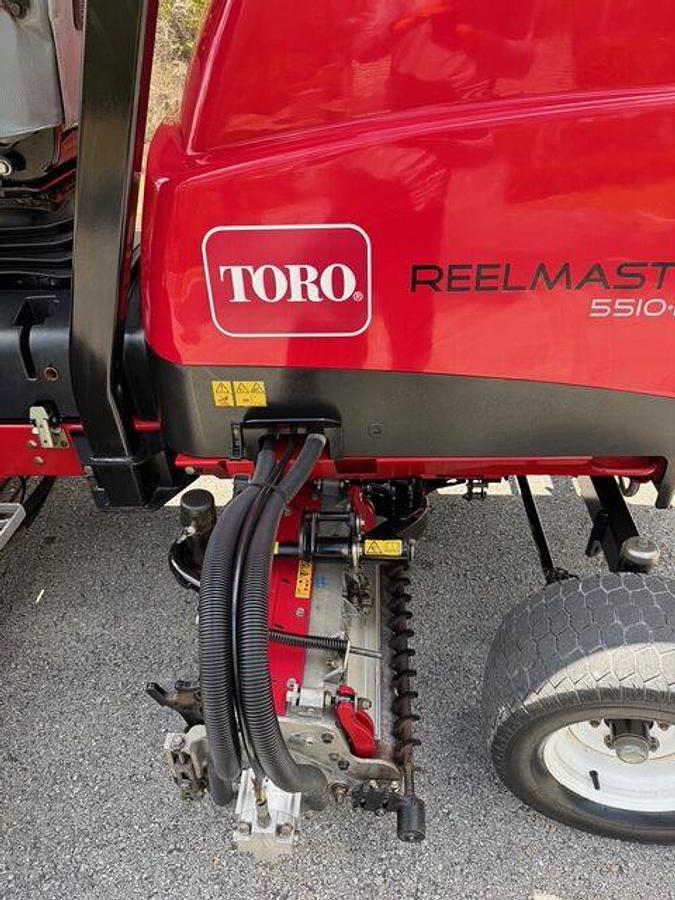

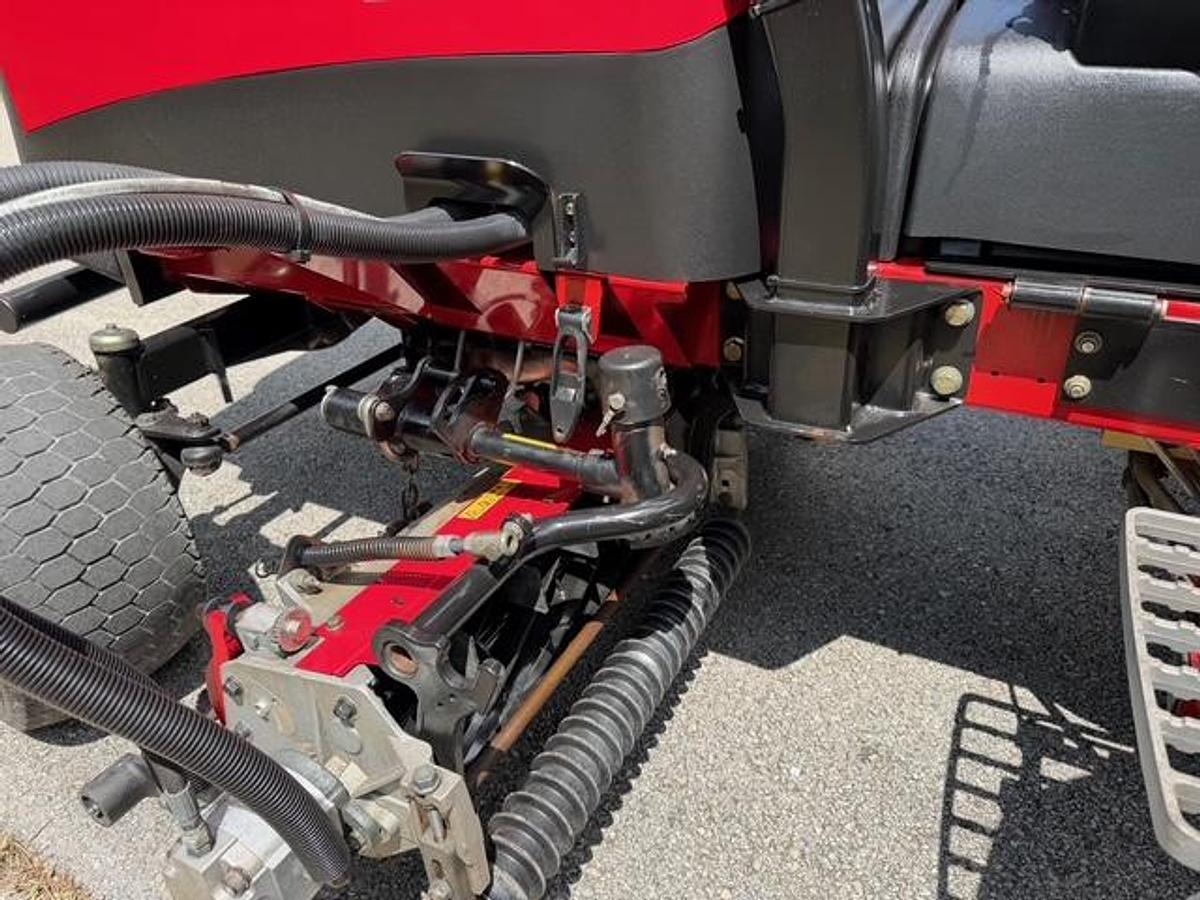

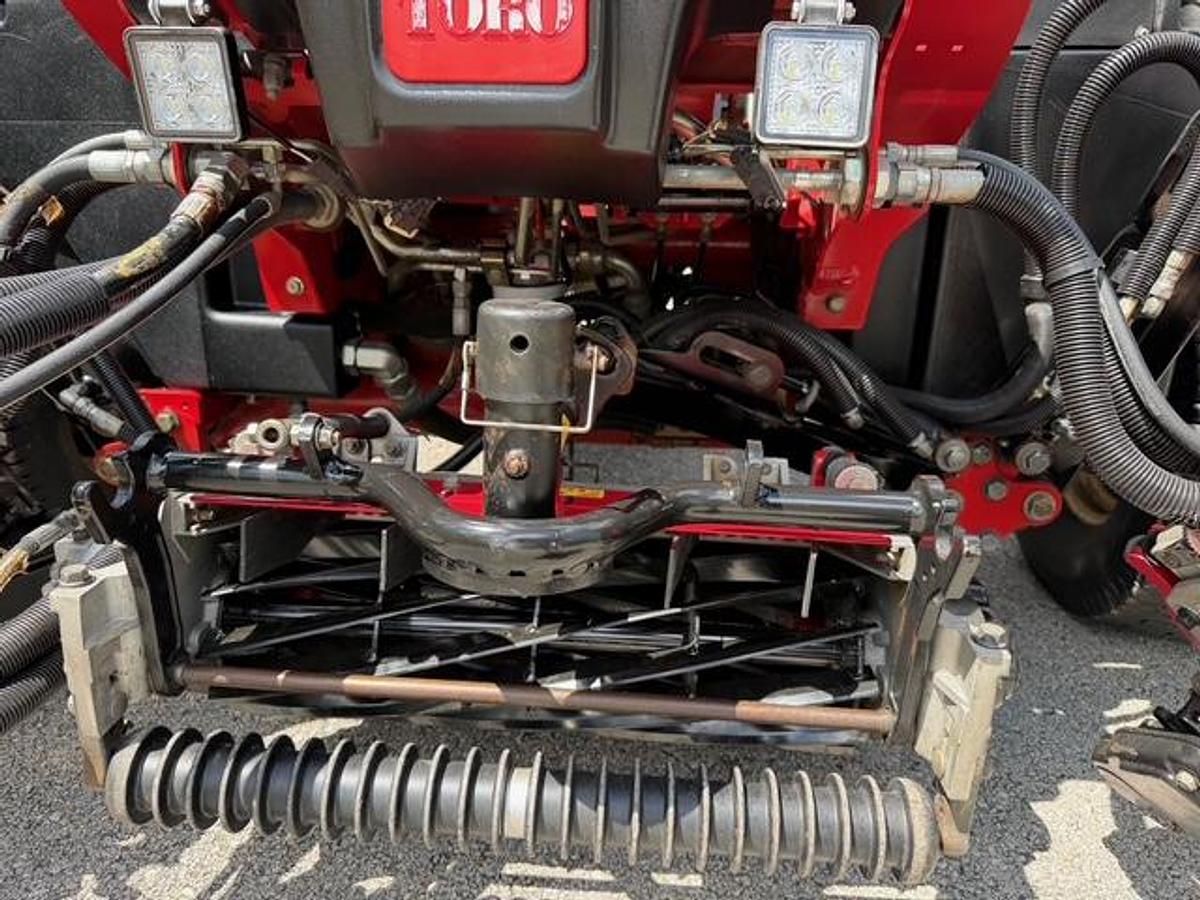

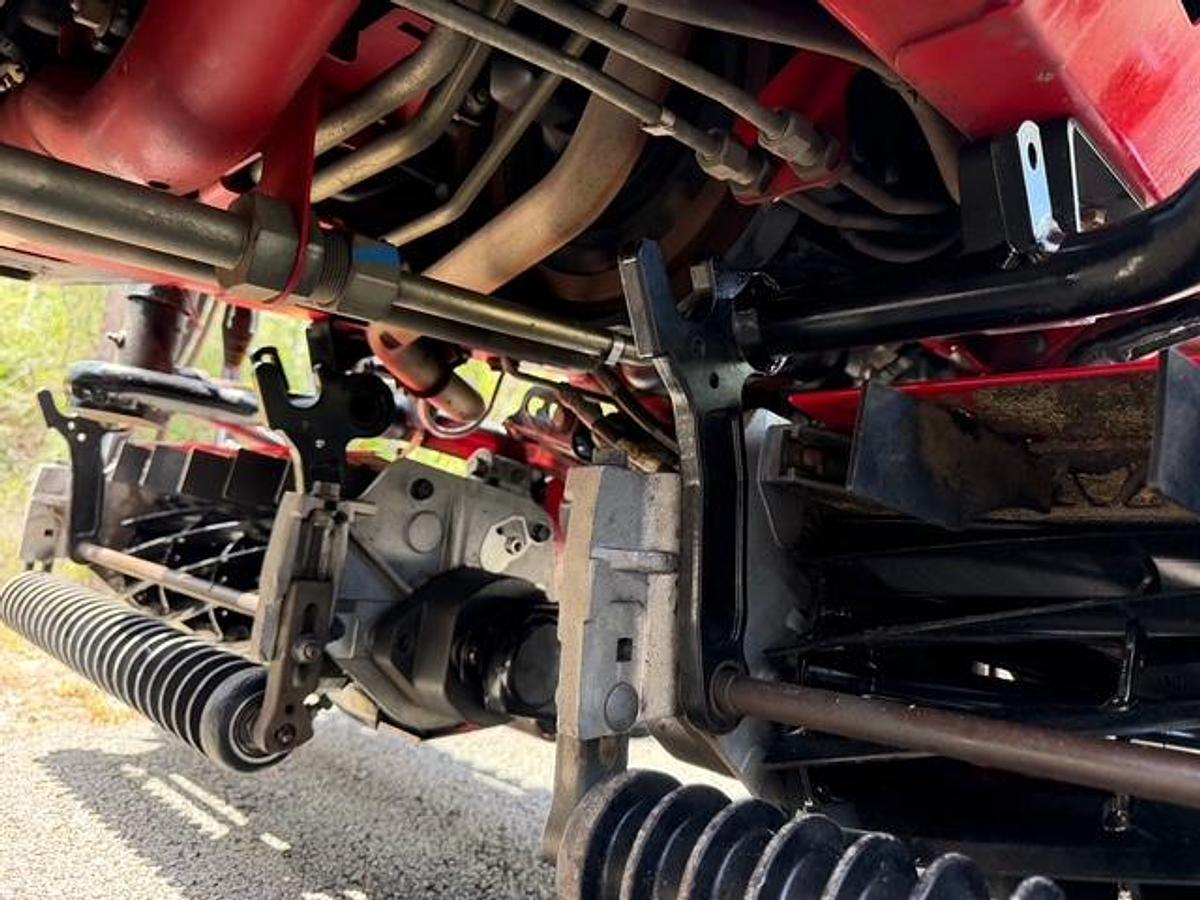

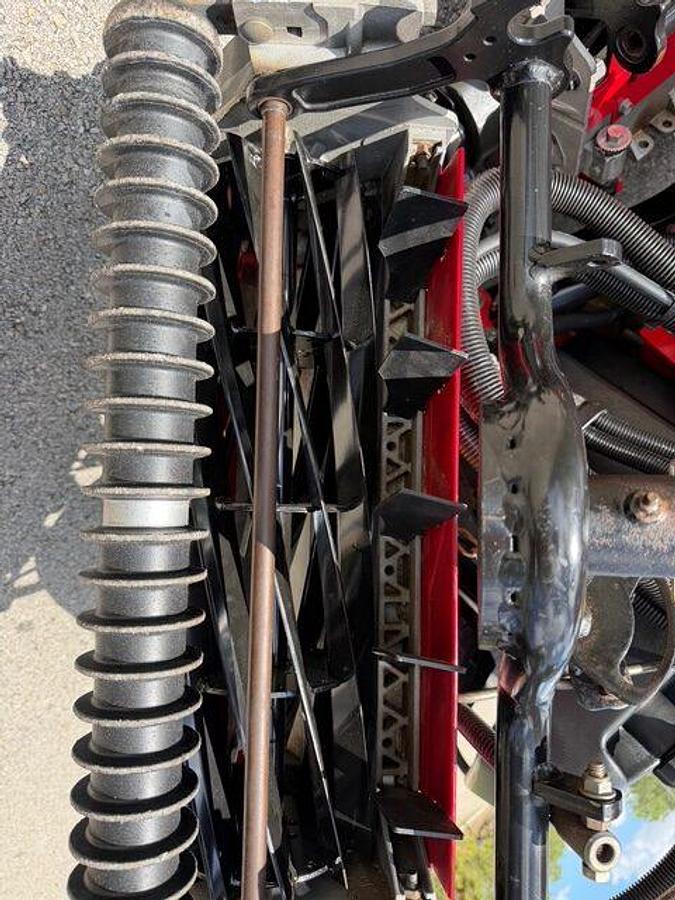

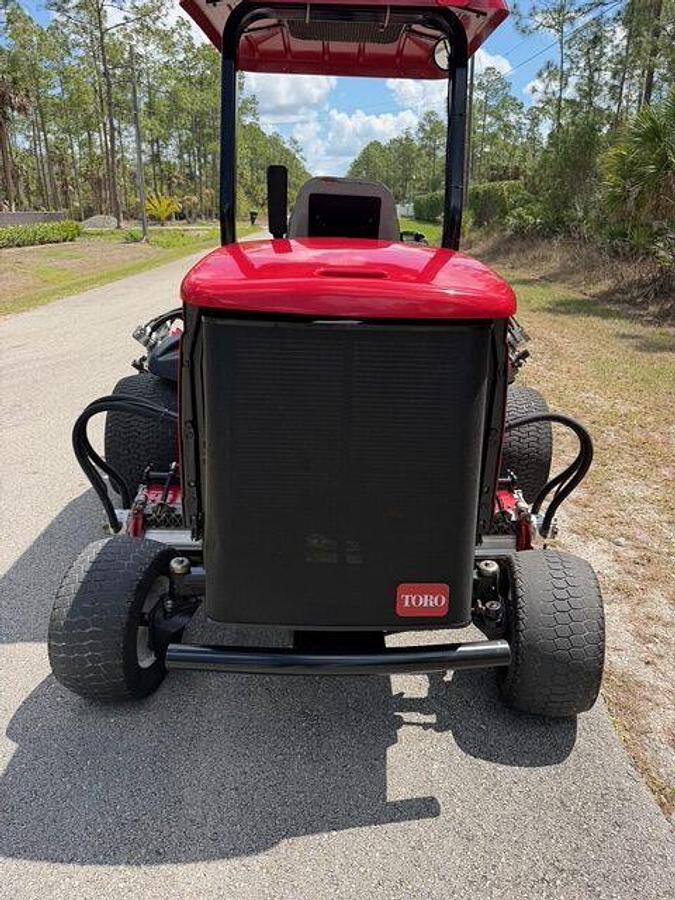

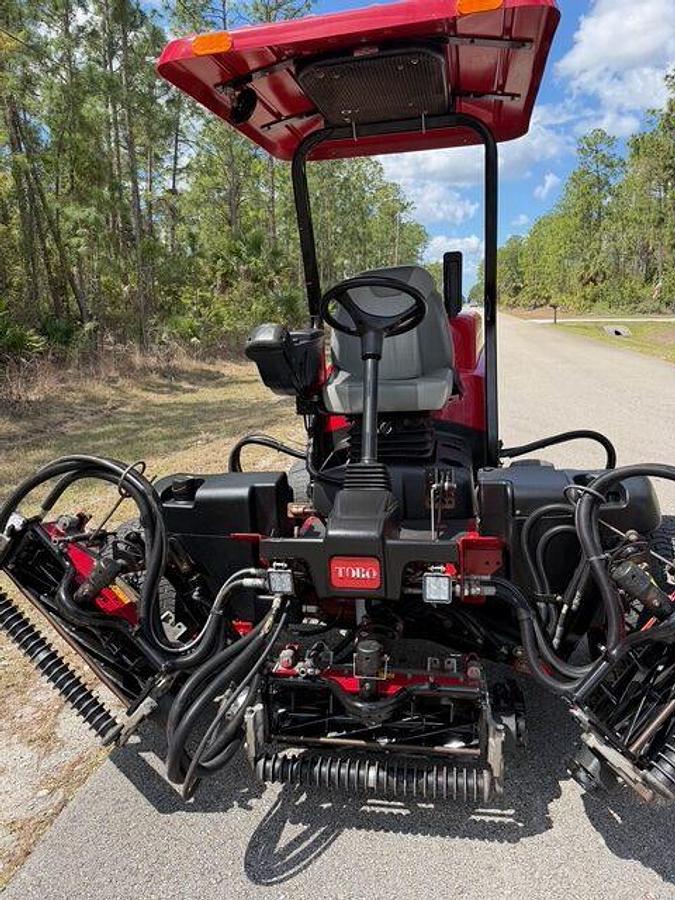

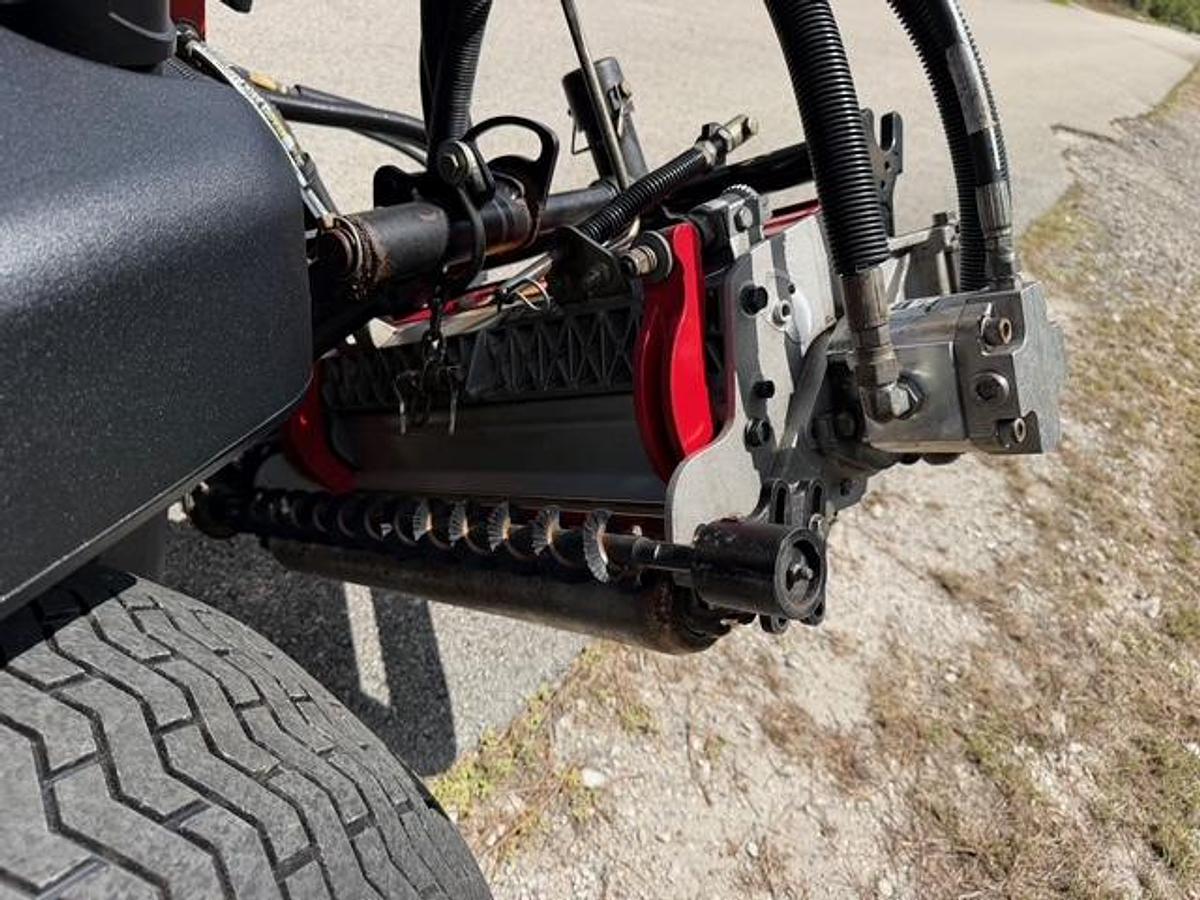

Excellent 2020 Toro Reelmaster 5510-D Model 03607 with new 11 blade reels and 2495.8 hours that runs like new. Has the cooling roof and fan accessory. Gently used and in excellent condition. Reels have front wiehle rollers, rear brush rollers, and new reels with 100% life. Please contact us for additional details or package deals.
Specifications
| Manufacturer | Toro |
| Year | 2020 |
| Condition | Used |
| Stock Number | 00006 |
| Air Filter | Heavy-duty three-stage, radial seal air cleaner with restriction indicator. |
| Armrests | Standard |
| Battery | 12V |
| Bedknife Adjustment | Dual Precision Adjustment (DPA), bedknife to reel. |
| Blade Style/Type | Reel |
| Blade Type (Description) | EdgeSeries™ DPA radial or forward swept reels. |
| Clip Frequency/Backlapping | Manually controlled, variable reel speed for control of clip frequency. Reel speeds are incrementally adjustable between 200 -1,650 rpm with a backlap speed of 200 rpm. Standard on-board backlapping. |

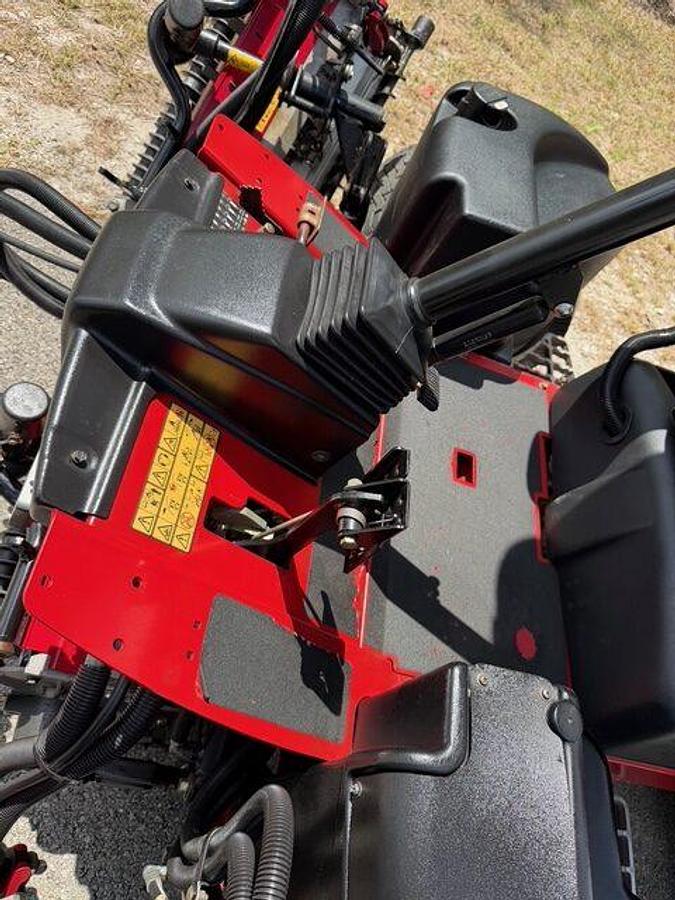

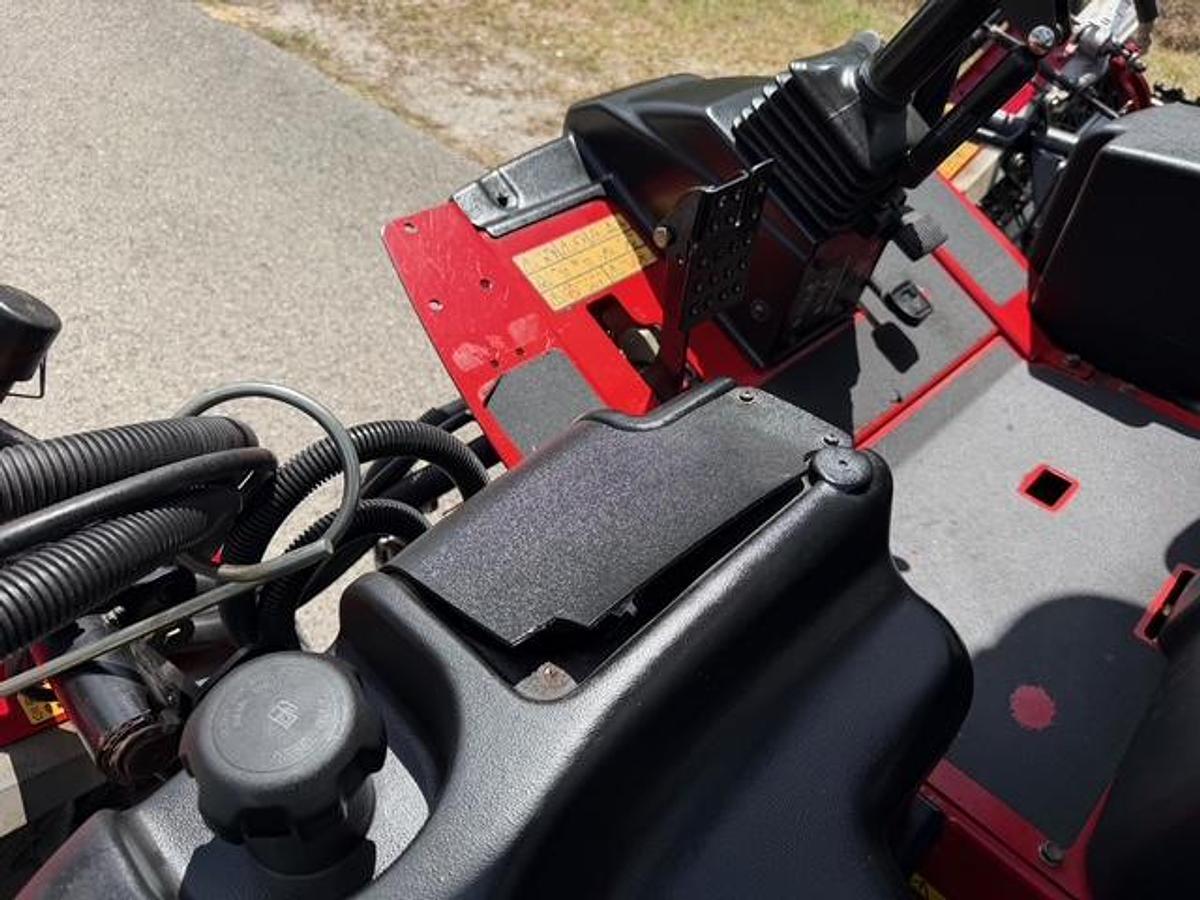

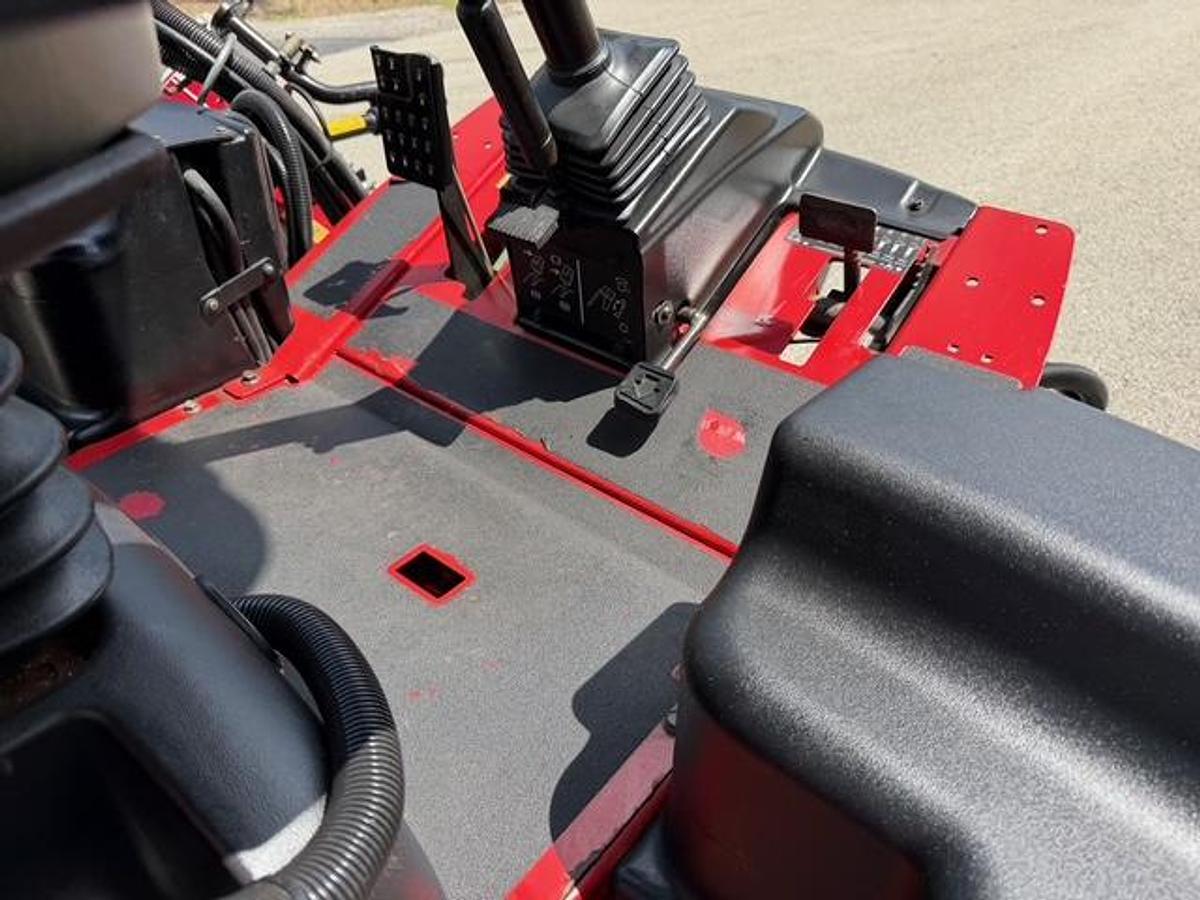

| Controls | Single foot-operated traction pedal, foot actuated mow speed limiter, foot actuated service and parking brake. Hand-operated key ignition switch, throttle, isochronous engine speed control, cutting unit raise/lower joystick, cutting unit engage switch, and LED headlight switch, all positioned on right hand pivoting control console. |

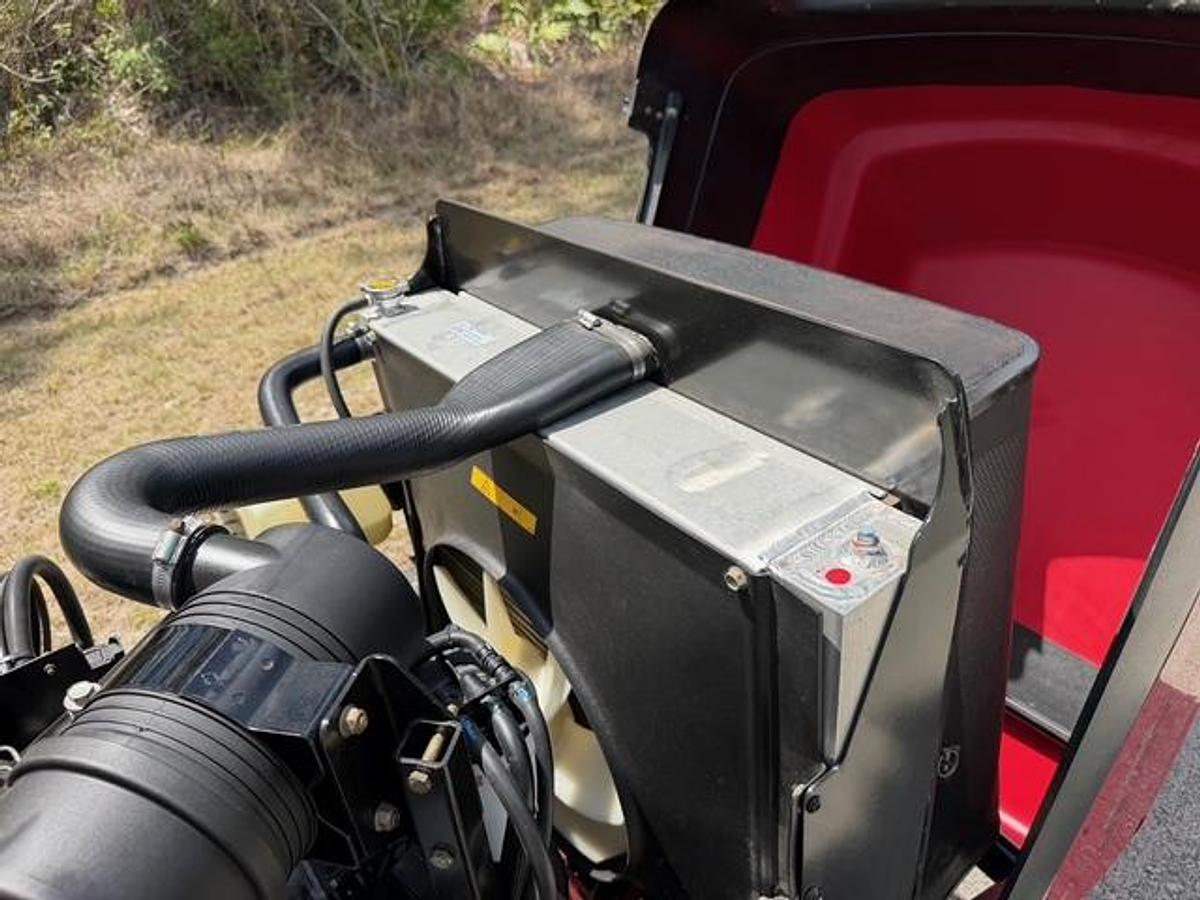

| Cooling System Description | Plate and bar radiator/oil cooler combination, 6.3 fins per inch, 10 quart (9.5 liter) capacity. |
| Cup Holder | Standard |
| Cutting Unit Lift/Lower | Hydraulic – front and rear cutting unit lift/lower are sequenced for uniform starting and ending points. |
| Cutting Unit Type/Configuration | 5-plex, hydraulically driven, balanced cutting units with adjustable rear weight transfer spring. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Cutting units also feature rear throw capability. |
| Drivetrain | Diesel |
| Electrical System | Heavy-duty 12-volt battery, 570 CCA, 55 amp alternator. Electronic control unit is a microprocessor based, solid state control unit with diagnostic capabilities. |
| Engine Cooling | Liquid Cooled |
| Fuel / Power Source | Diesel / Biodiesel |
| Fuel Capacity | 14 U.S. gal. (53 L) |

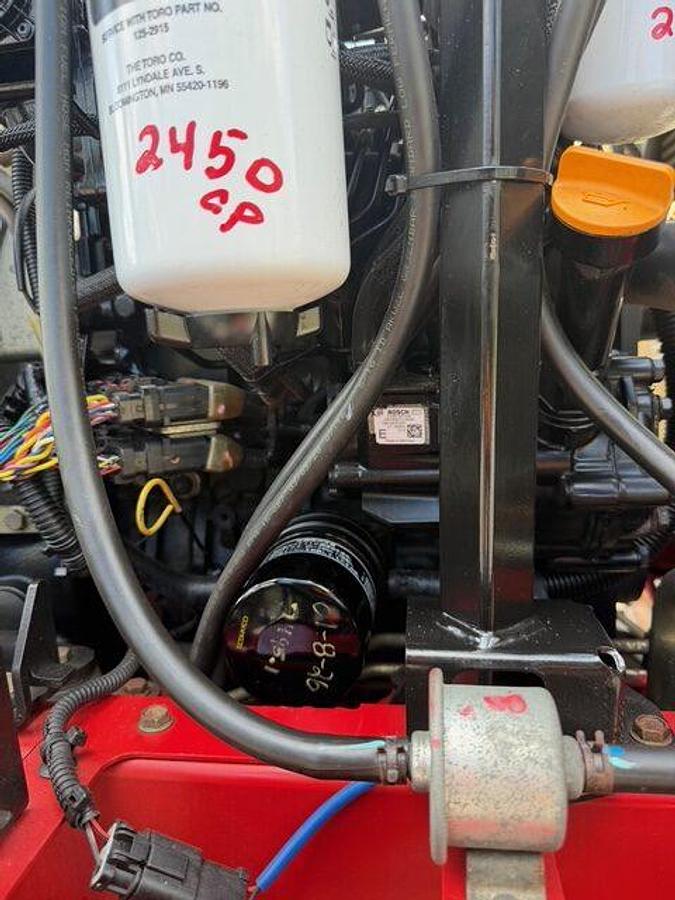

| Fuel Filter | Replaceable spin-on fuel filter/water separator. |

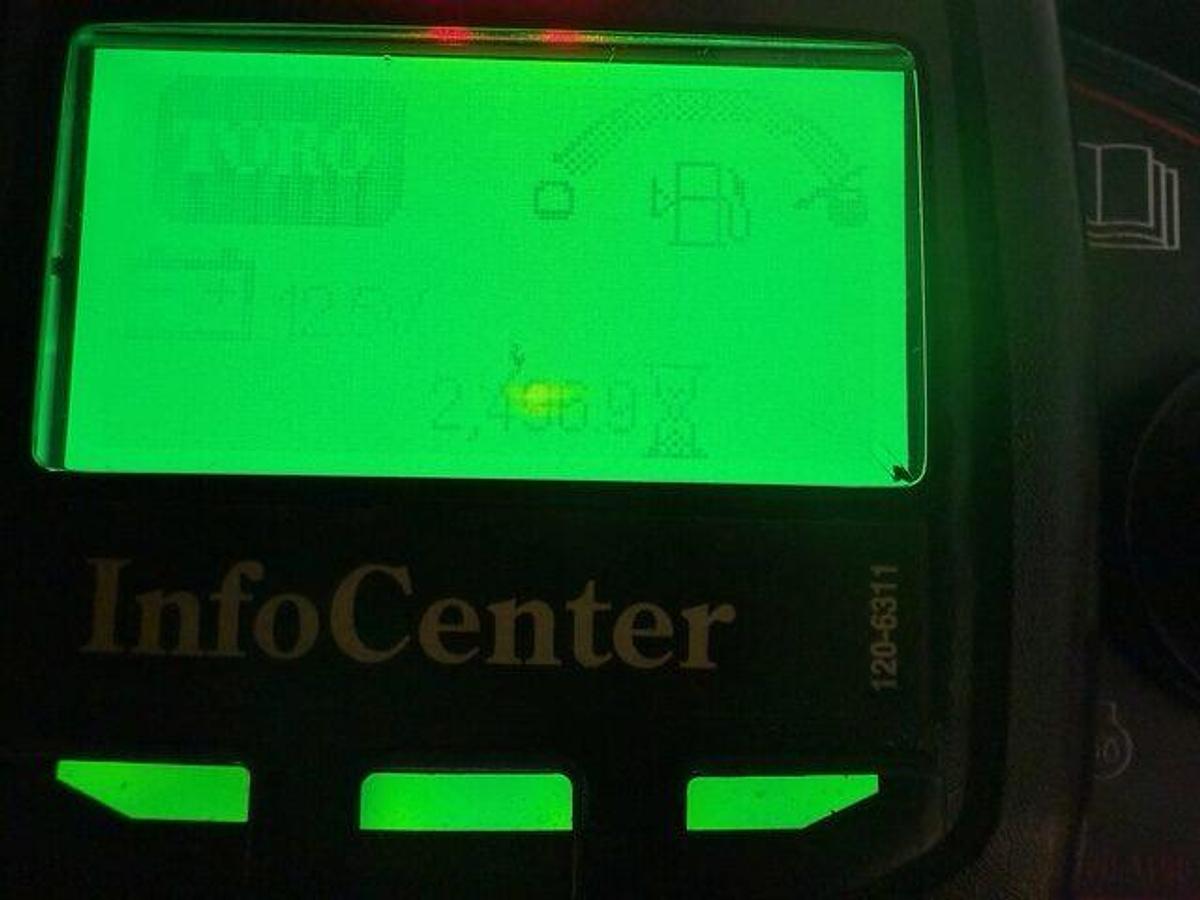

| Gauges/Instrumentation | InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, indicates fuel level, coolant temp., low oil pressure, alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator (diesel), lift/lower indicator. |
| Ground Speed – Forward | 0 – 10 mph (0 – 16.1 km/h) |
| Ground Speed – Reverse | 0 – 4 mph (0 – 6.4 km/h) |
| Height | 63″ (160 cm) seat top, 85″ (217.2 cm) top of ROPS. |
| Height of Cut Range | 8-Blade: 0.5″ – 2.0″ (13 mm -51 mm) 11-Blade: 0.25″ – 0.75″ (6 mm – 19 mm) |
| Hydraulic Fluid Capacity | 15 U.S. gal. (56.8 L) |
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid |
| IntelliDash™ Capable | Yes |
| Interlocks | Traction pedal, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches. |
| Lighting | Standard |
| Main Frame/Chassis | High strength steel frame with welded construction. |
| Max Slope Angle | Refer to operator’s manual. |
| Mowing Speed | 0 – 8 mph (0 – 12.8 km/h) |
| Number of Blades | 11, 8 |
| Oil Capacity | 5 U.S. qt. (4.7 L) |
| Oil Cooler Description | Pressurized lubrication system. |
| Optional Accessories | Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon), 2-post ROPS Extension Kit (with optional windshield, operator cooling fan, LED work lights, rotating amber beacon and safety and security cage) |
| Overall Width | 116″ (288.3 cm) |
| Parking/Service Brakes | Individual left and right drum-type front wheel brakes. Brakes may be actuated for service braking via left foot pedal. Integrated foot pedal lock provides parking brake. Dynamic braking through hydrostatic traction drive system. |
| Power Steering | Yes |

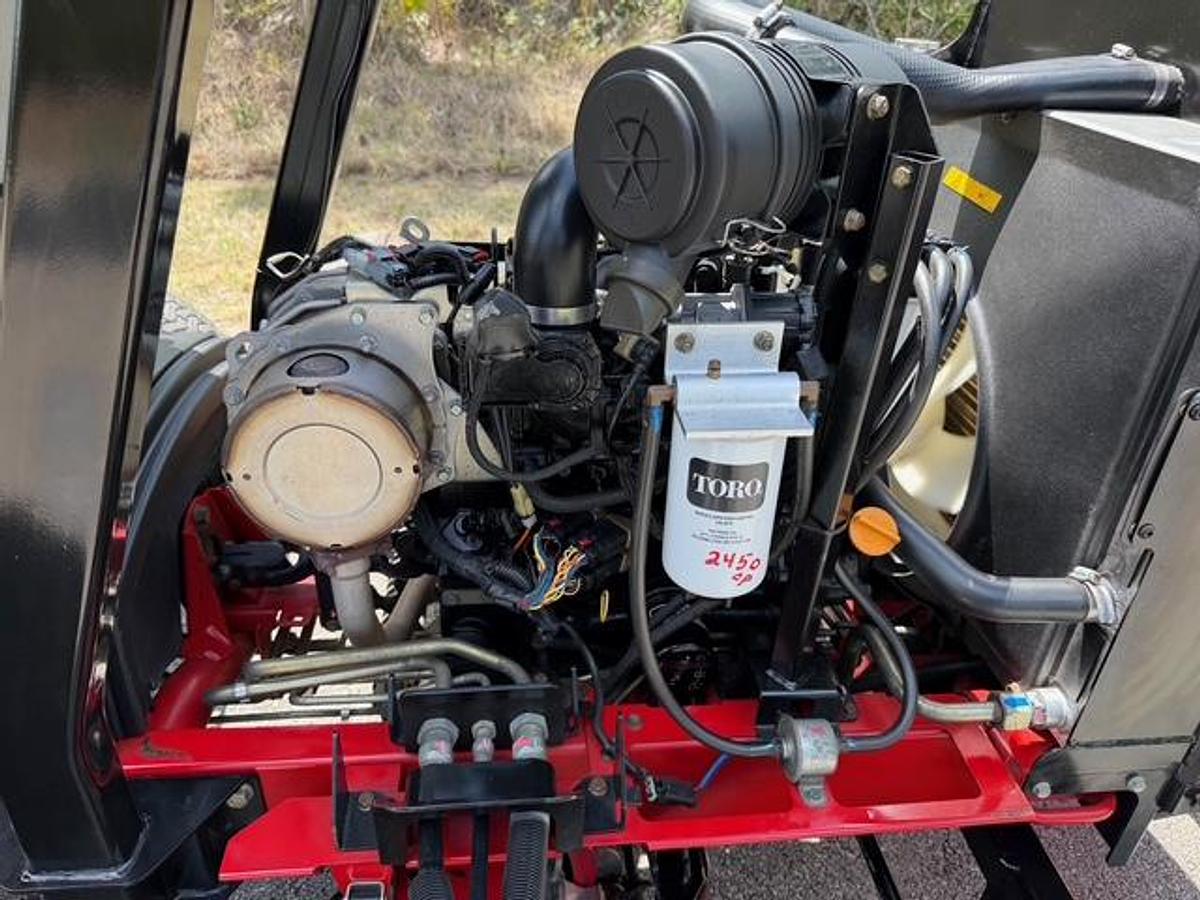

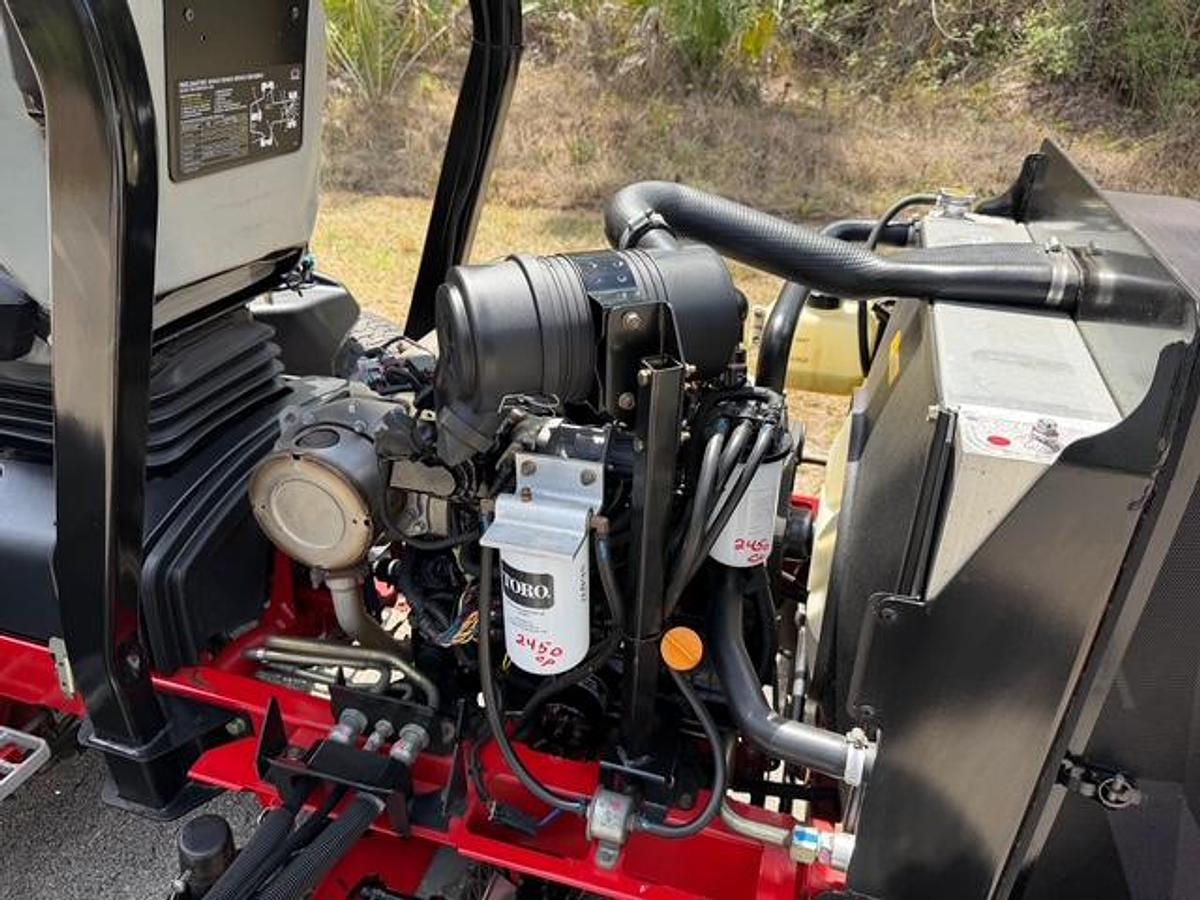

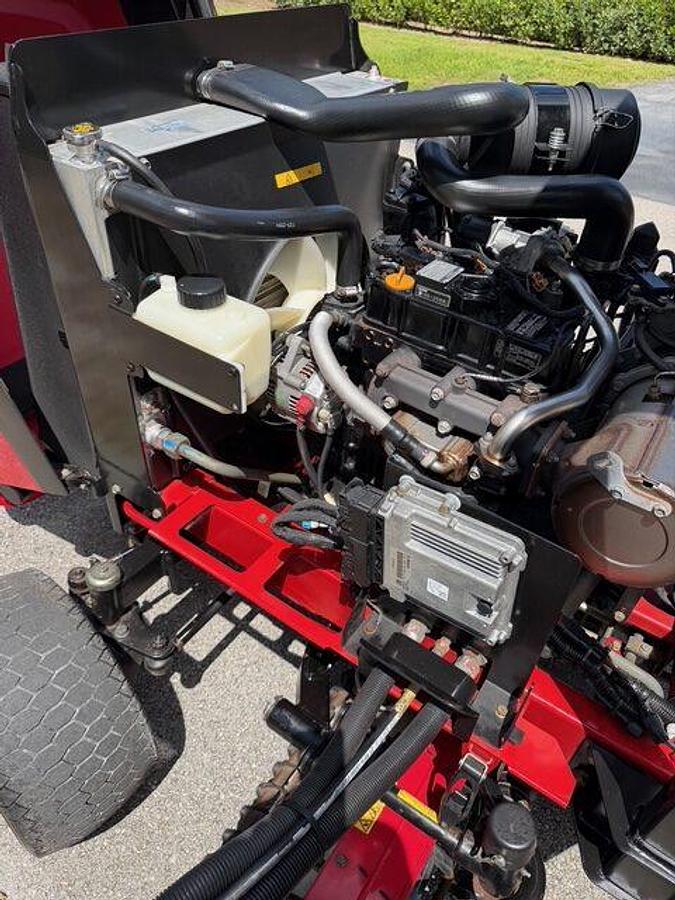

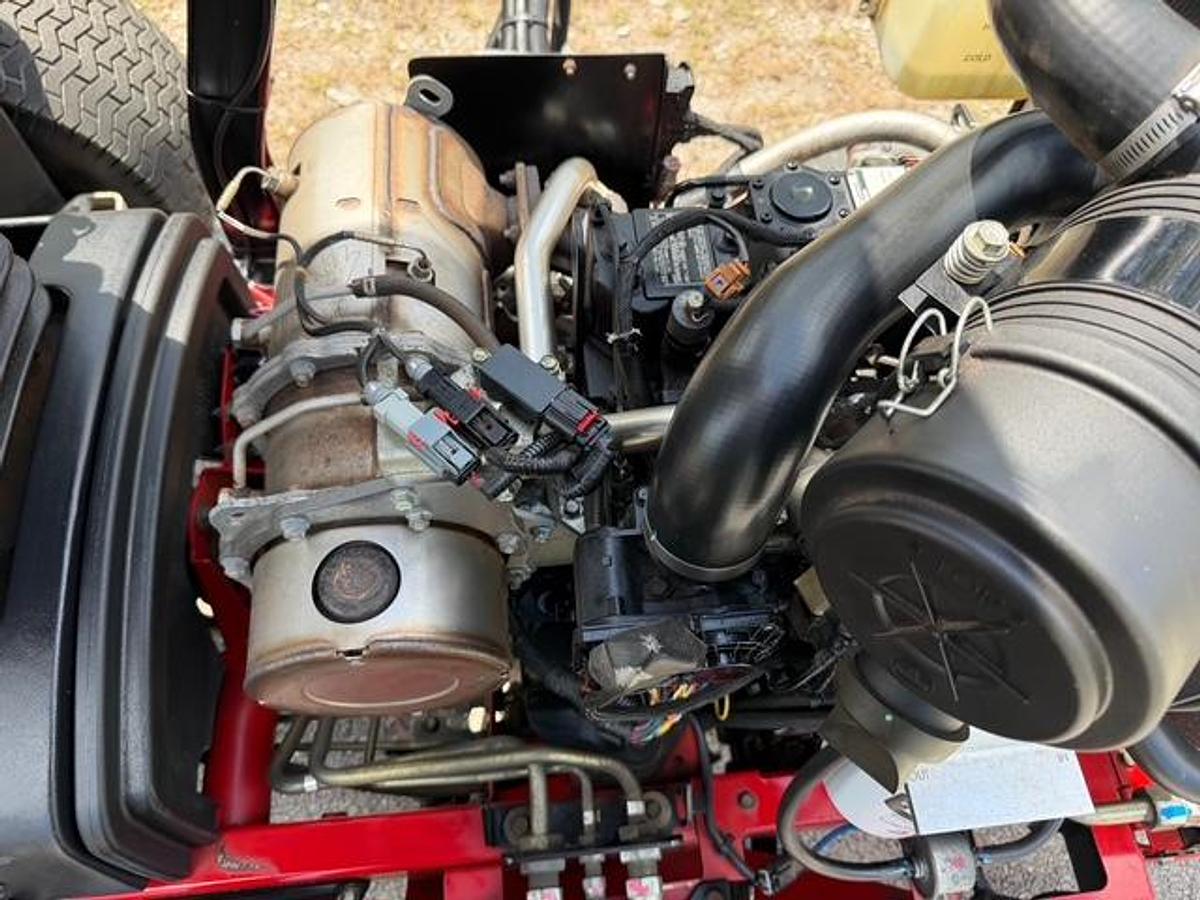

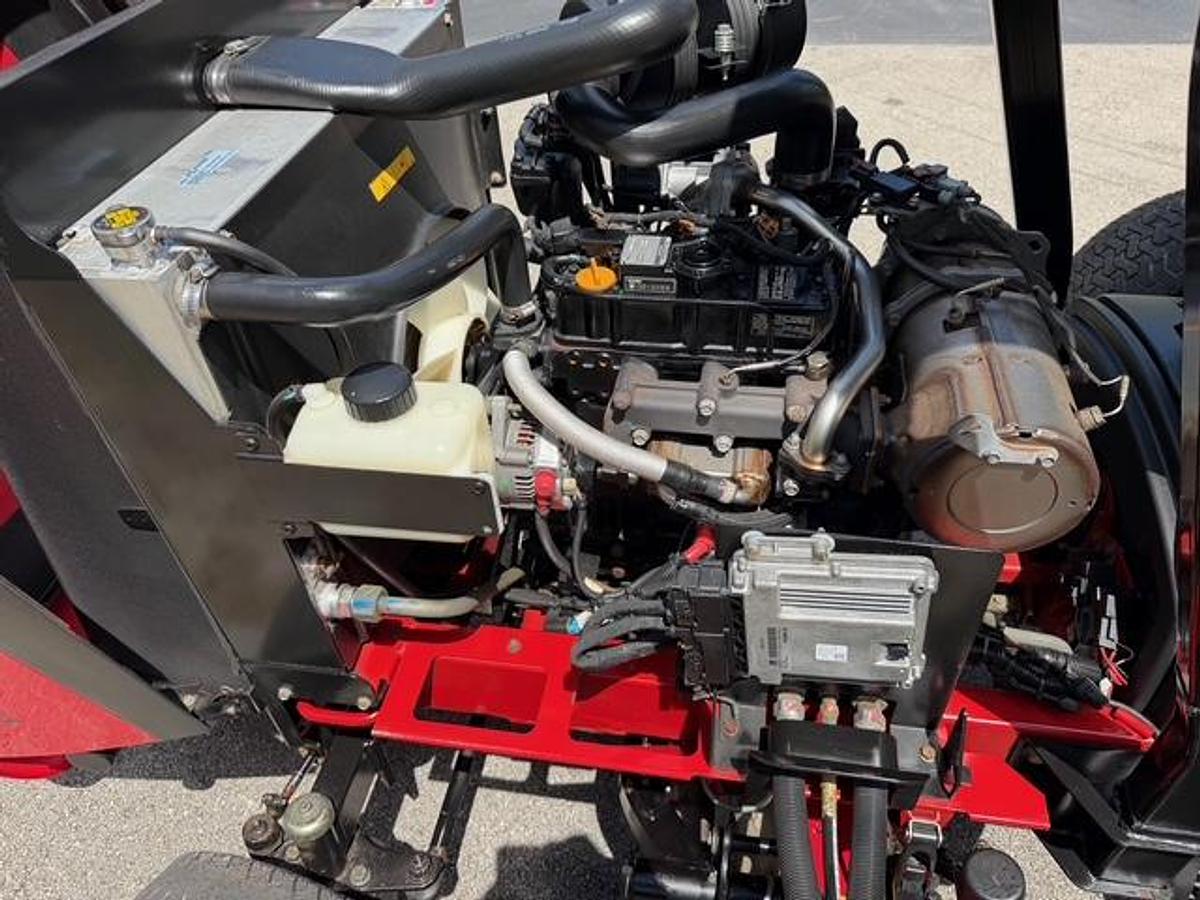

| Power Train (Engine Description) | Yanmar® 3-cylinder, liquid-cooled, diesel engine. 36.8 hp (27.5 kW), 74.4 ft. lbs. (105 Nm) torque, 1.64 liter displacement. Tier IV compliant. |
| Product Length | 111″ (281.9 cm) |
| Reel Diameter | 7 in. (17.8cm) |
| Reel/Cylinder Drive | Hydraulic |
| Safety/Operator Safety | 2-post ROPS and retractable seat belts standard. |

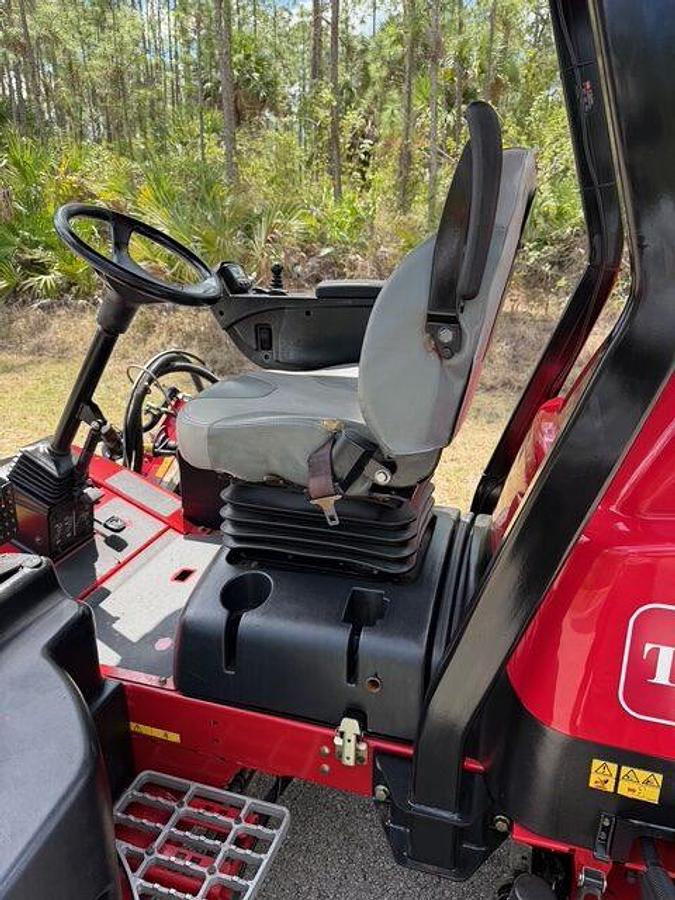

| Seat | Deluxe high back suspension seat with fore, aft, height and weight adjustment. |
| Starting | Switch |
| Steering System Description | Rear wheel, power steering with an independent hydraulic pump and circuit. |
| Tires – Front | 26.5″ x 14″ – 12″, 4-ply, Turf Tire |
| Tires – Rear | 20″ x 12″ – 10″, 4-ply, Turf Tread |
| Tool Box | Standard |
| Traction Drive | Front-Wheel Drive |
| Traction Drive (System) | Front drive wheels powered by a hydrostatic pump with individual wheel motors. All-wheel drive optional with CrossTrax® All-Wheel Drive system, which transfers power from the front wheels to the opposite rear wheels via independent rear wheel motors. |
| Transport Width | 92″ (233.7 cm) |
| Weight | 3,131 lbs. (1,420 kg) (2WD), 3,241 lbs. (1,470 kg) (4WD) |
| Wheelbase | 60″ (152.4 cm) |
| Width of Cut | 100″ (254 cm) |
