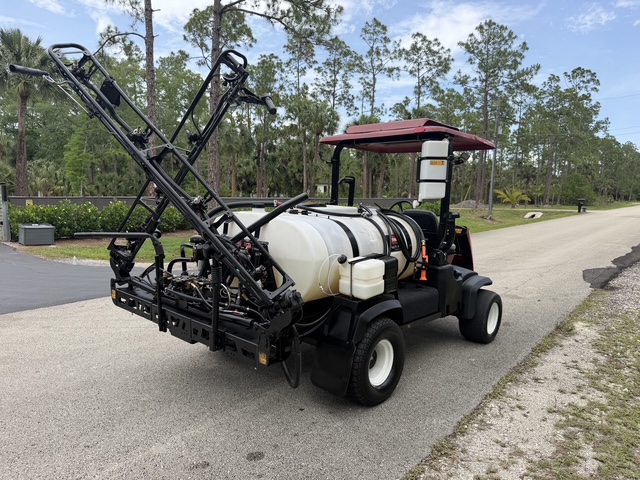

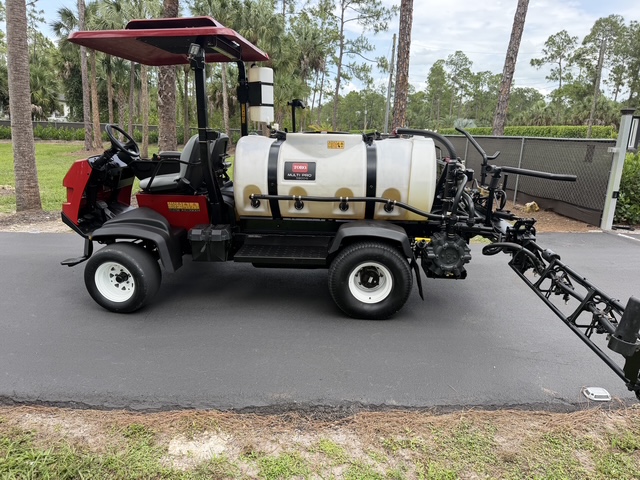

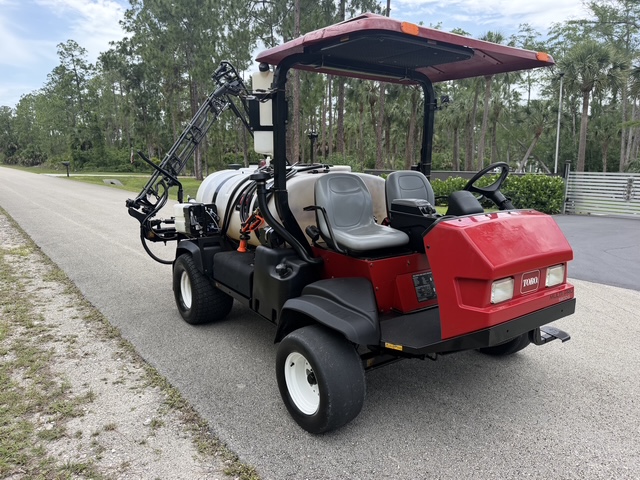

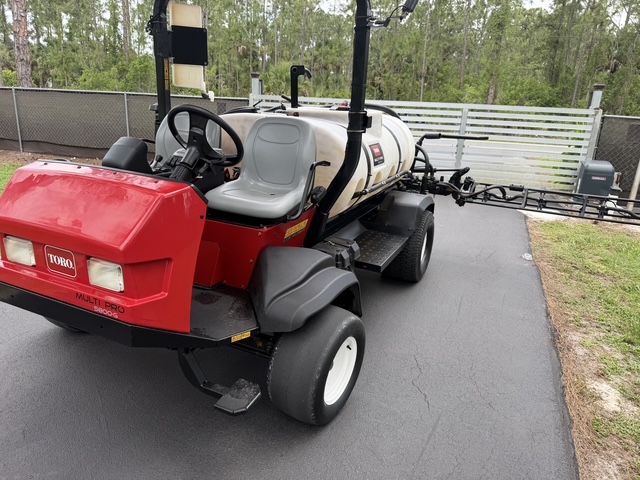

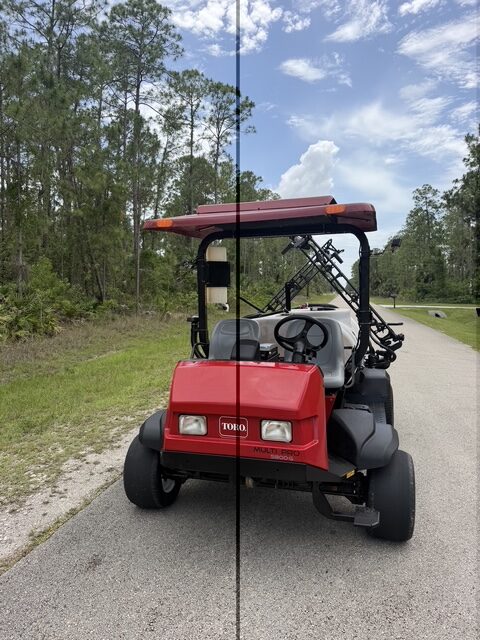

2021 Toro Multipro 5800G Sprayer Model 41394
$42,500.00
Description

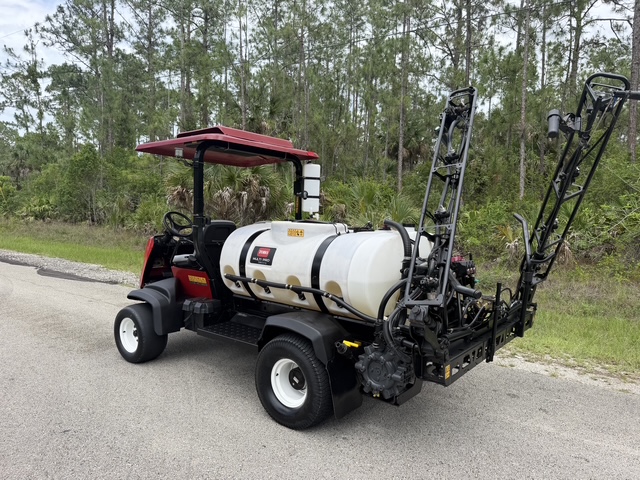

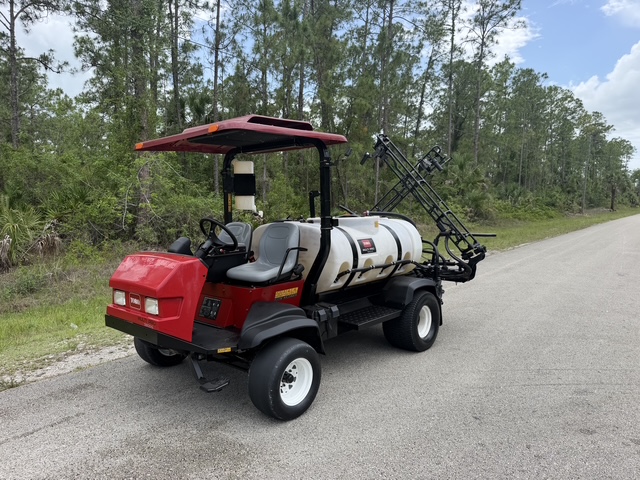

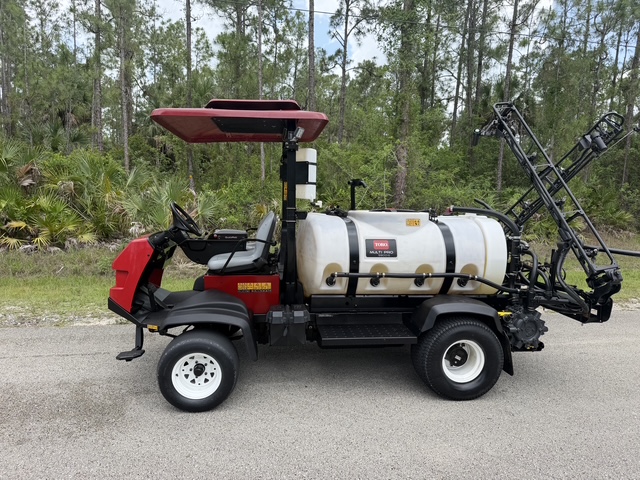

2021 Toro Multipro 5800G with only 1563 Hours! This sprayer is in impeccable condition! Beautiful clean condition, looks new, works like new, and reliable. Best of all, it comes with a foam kit, the Sonic Boom Leveling Kit, new tires, sunshade kit with the overhead fan, NO RUST, new driver seat, clean look, and ready to go! Fresh Oil Change and New Filters all around.
Specifications

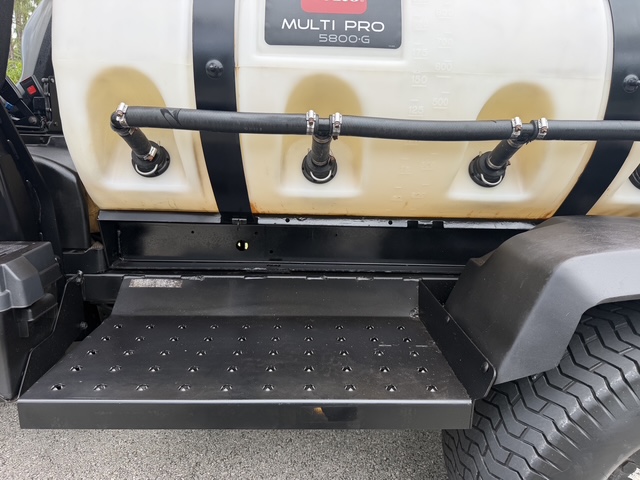

| Agitator | Four side-mounted jet agitation nozzles for full tank agitation. |
|---|---|

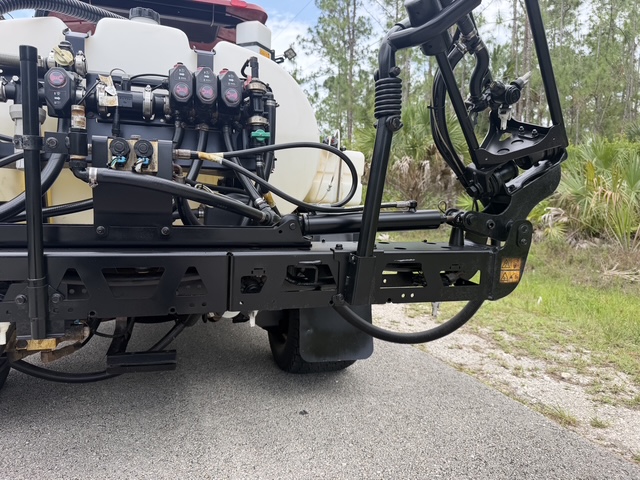

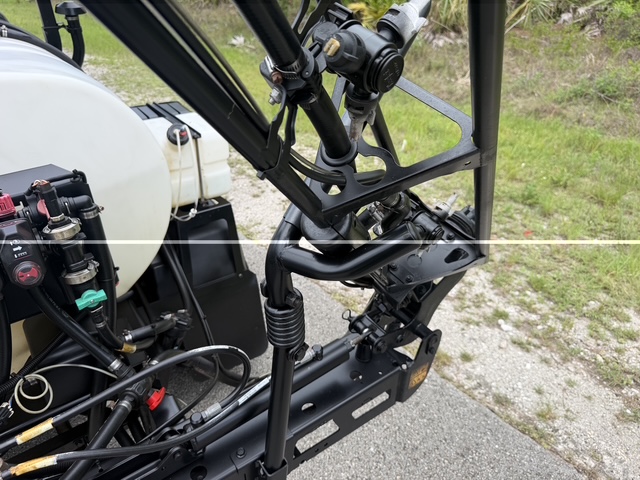

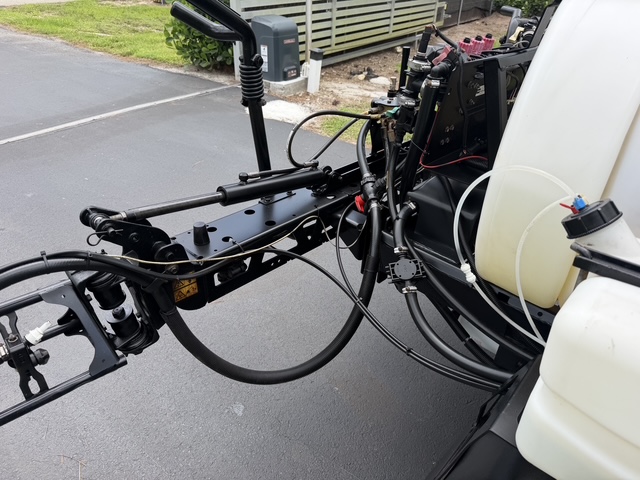

| Boom Actuators | Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4″ (4.4 cm) Bore x 10.06” (25.6 cm) stroke. |

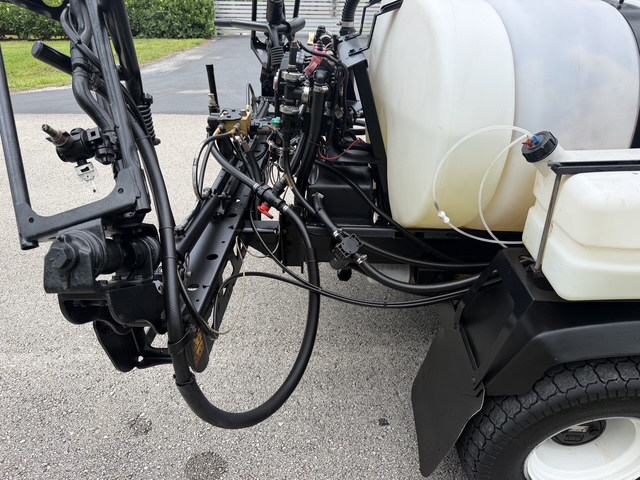

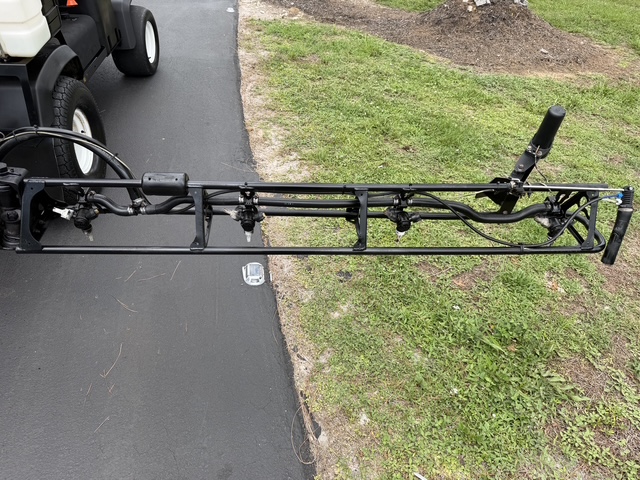

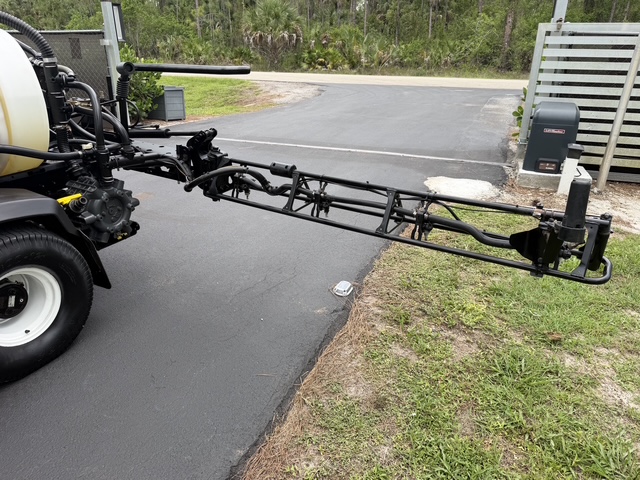

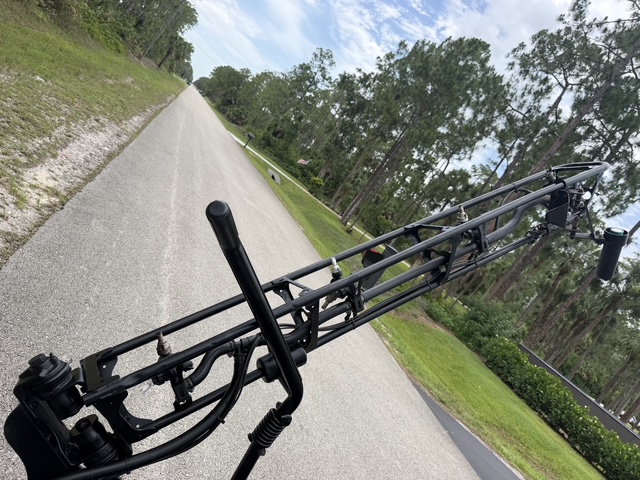

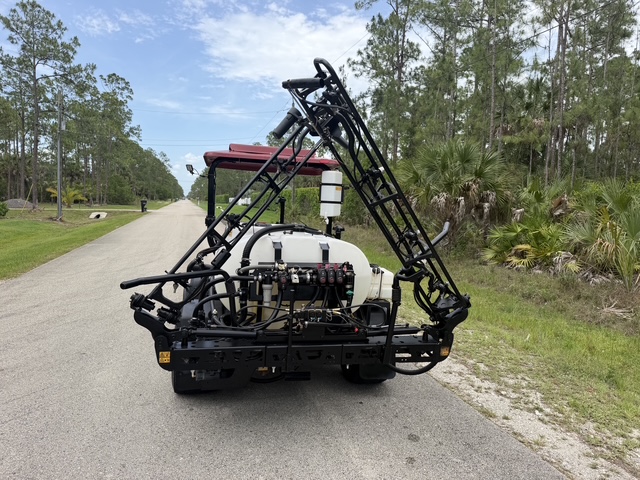

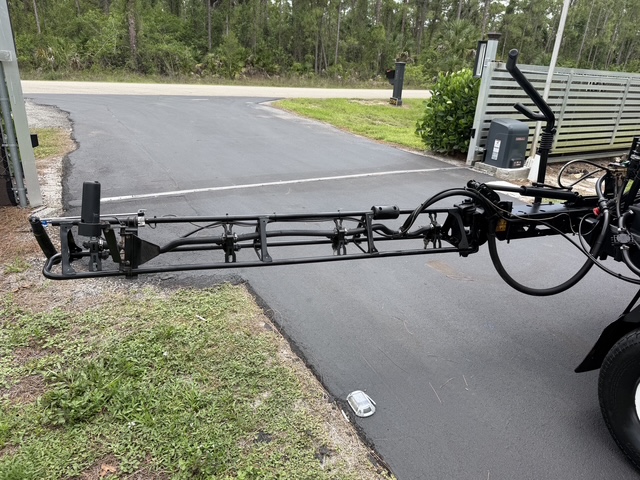

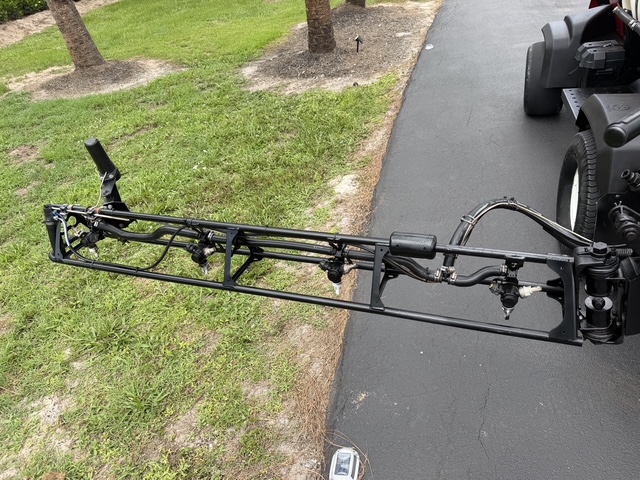

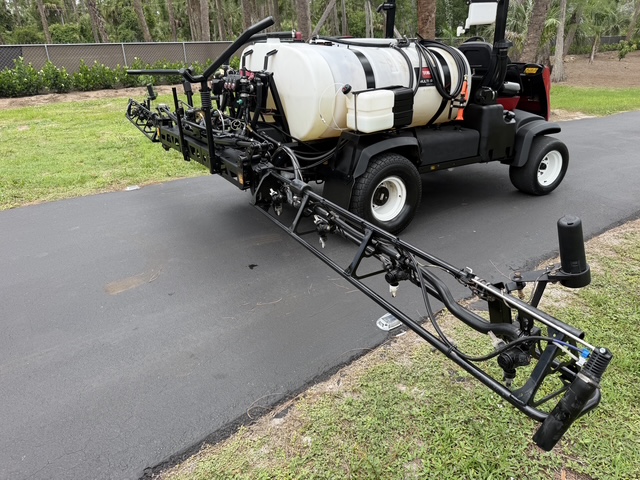

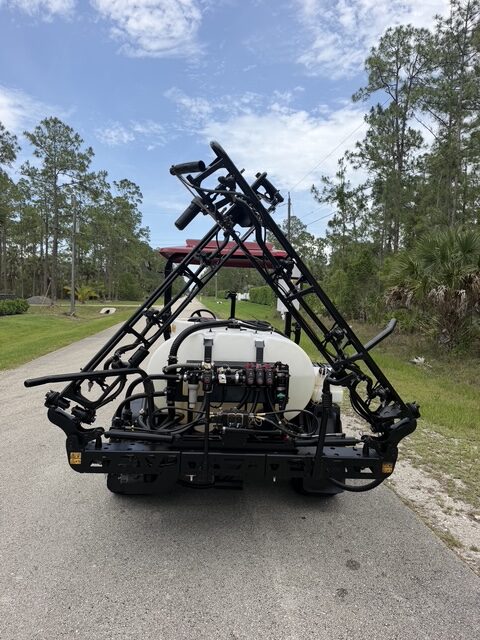

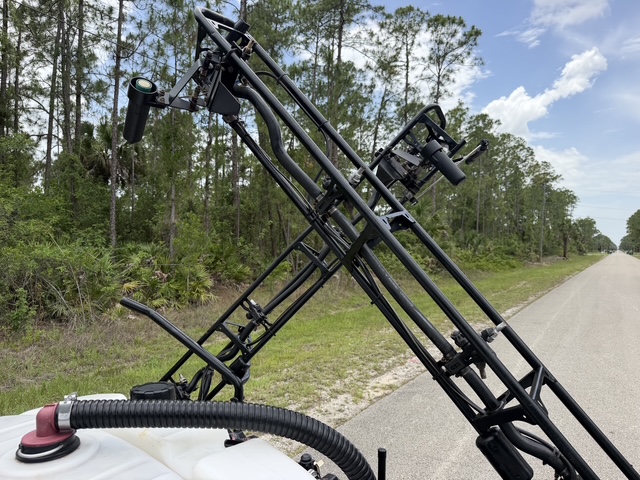

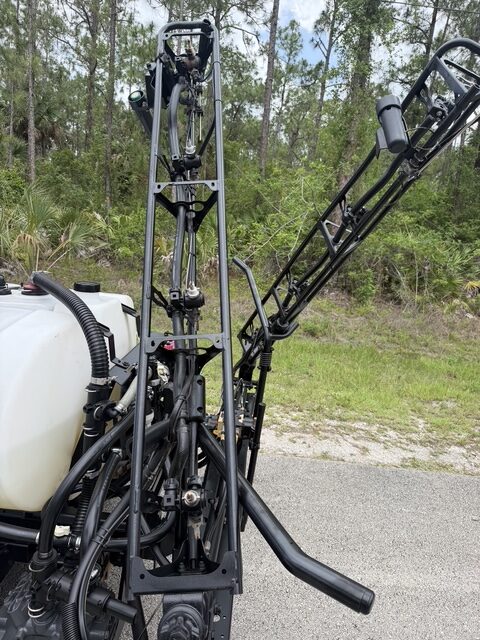

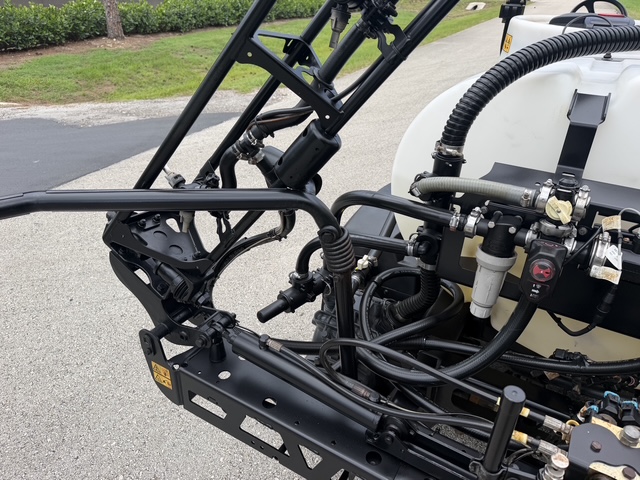

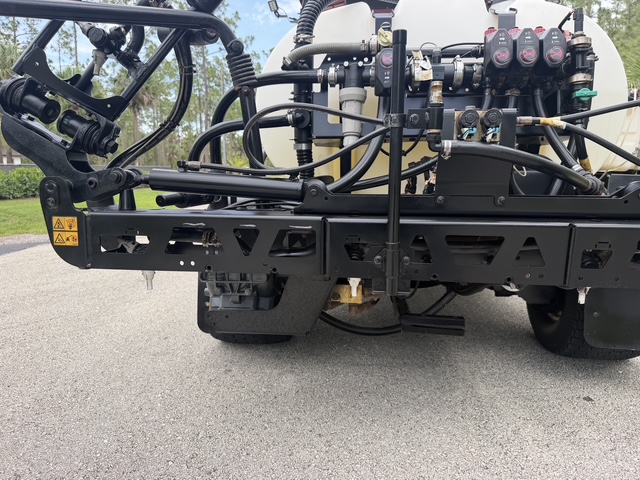

| Boom Assembly | 20.5′ (6.25 m), 4 nozzles per selection, triangular truss-style open boom. 12 total triple-turret nozzle mounts with diaphragm check valves. |
| Brakes | 2-wheel mechanical cable operated multi disc wet brakes with additional hydrostatic braking through drive train. |
| Cooling System | Mid-mounted 3.3 U.S. qt. (3.1 L) radiator with oil cooler mounted in front. |
| Electrical System | 12-volt battery, 690 cold cranking amps at 0° F (-18° C). 12-volt, 60 Amp alternator. Dash mounted ignition switch. |
| Fuel System | 12 U.S. gal. (45.4 L) polyethylene/nylon low-permeation fuel tank with 1.5″ (38 mm) opening on the passenger side for fueling; non-vented fuel cap with electronic fuel gauge on the console, in-tank fuel replacement filter, (unleaded gasoline), evaporative emission system with carbon cannister. |

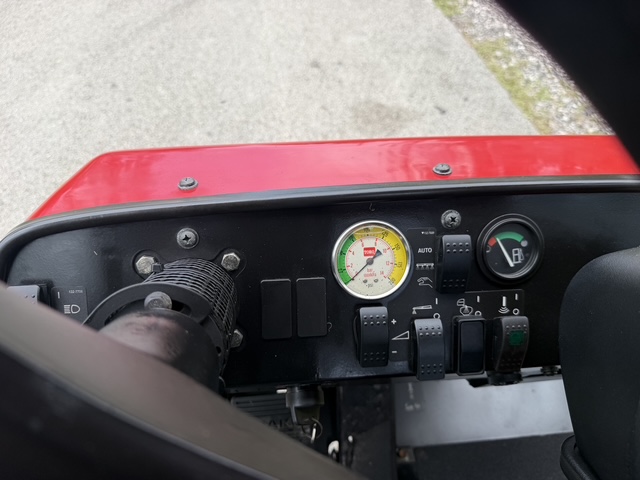

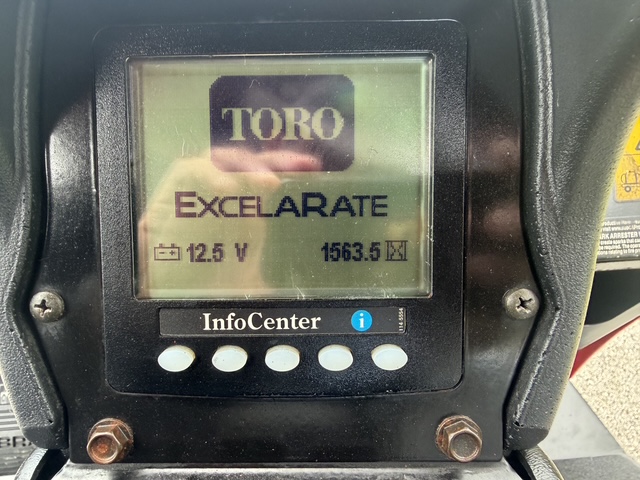

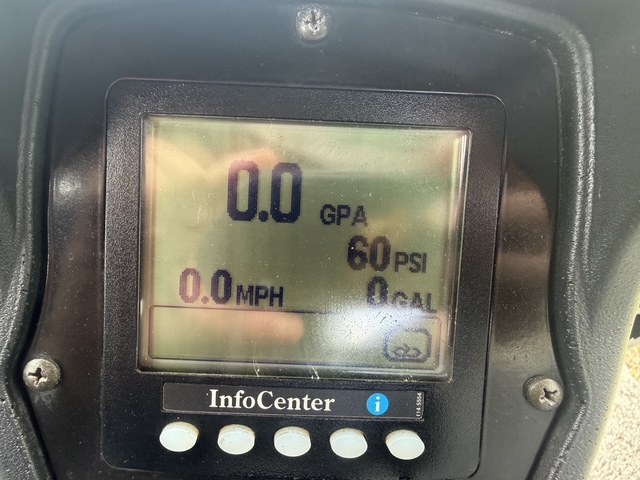

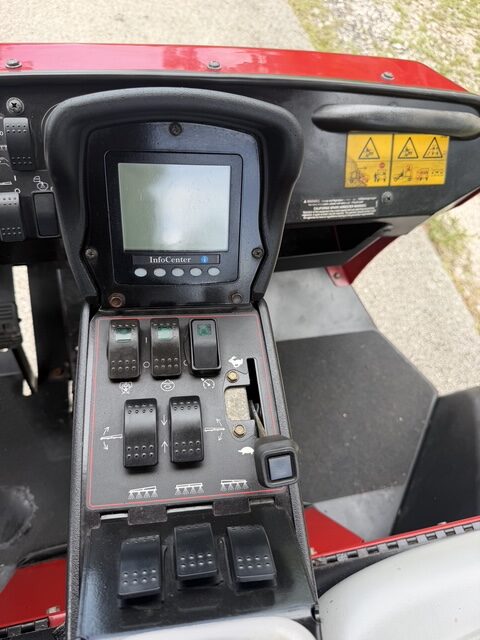

| Gauges/Instrumentation | Ignition key switch; analog spray system pressure gauge; fuel gauge; battery voltage lamp; oil pressure warning lamp; coolant temperature warning lamp; InfoCenter™ display console. |
| GeoLink® Capable | Yes |
| Ground Clearance | 7.25″ (18.4 cm) |
| Ground Speed | Forward: 0-10 mph (0-16.1 km/h) Reverse: 0-4 mph (0-6.4 km/h) |
| Height | 83.5″ (212 cm) to top of ROPS |
| Length | 154″ (391 cm) [with booms forward] |
| Lights | Rectangular 12-volt, 37.5 watt halogen sealed beam headlights. |
| Main Frame/Chassis | Welded high strength steel tubular construction. |

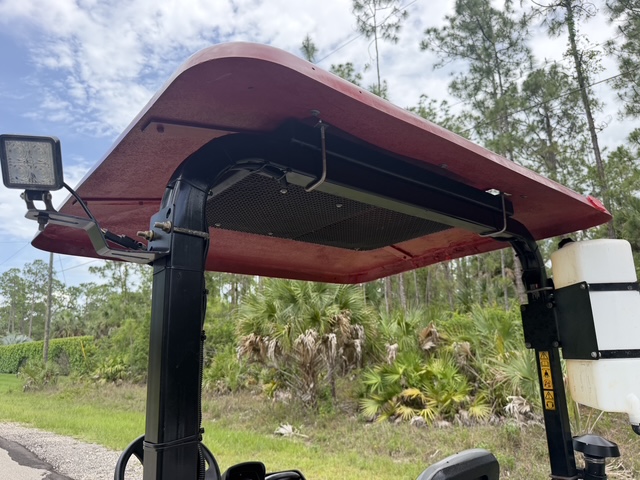

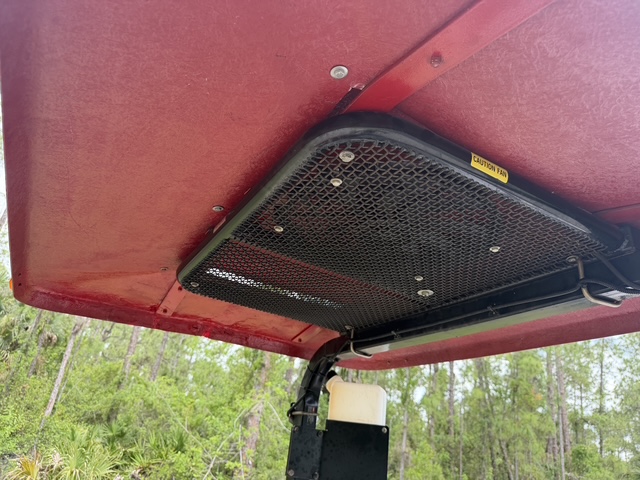

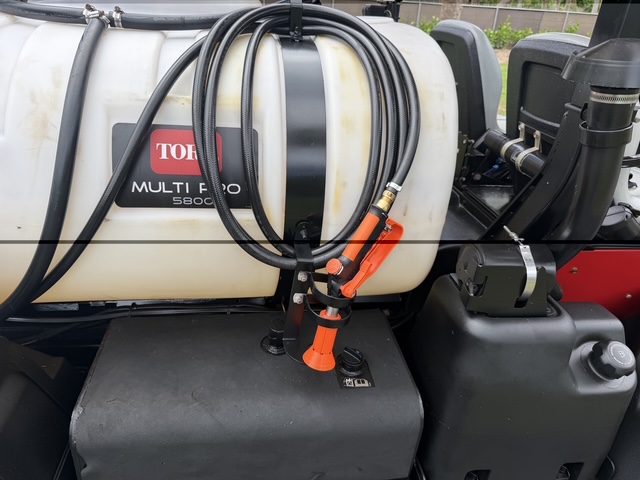

| Accessories | CleanLoad™ eductor, fresh water rinse kit, Pro Foam™ marking kit, Pro Foam™, Ultra Sonic Boom™ kit, universal sunshade with cooling fan, hand spray wand kit. |
| Overall Width | 88″ (224 cm) [with booms forward] |

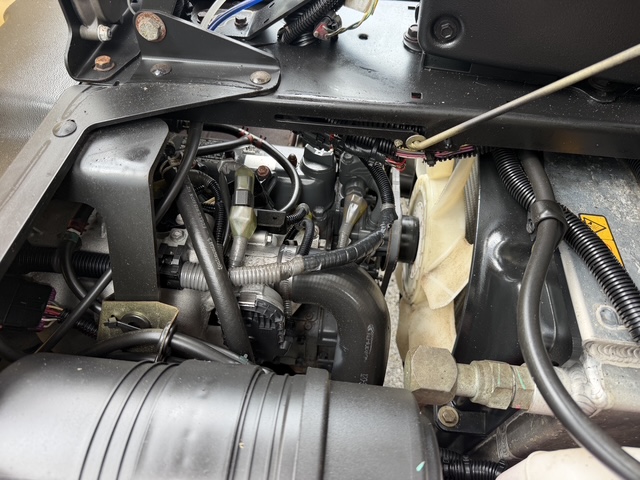

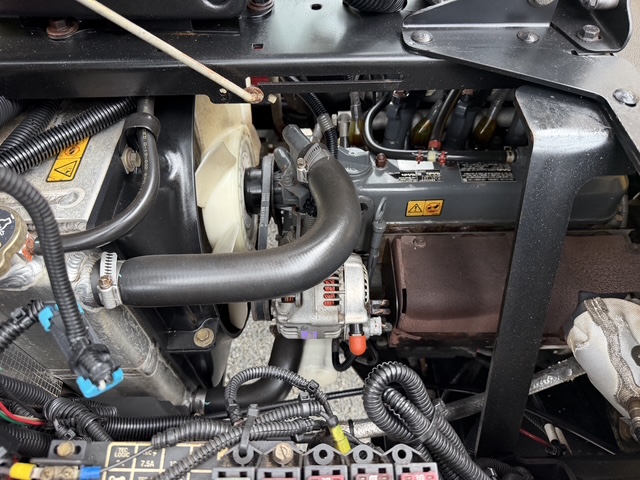

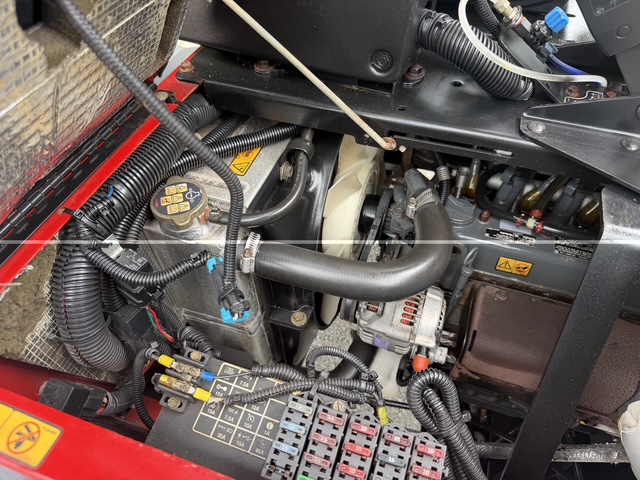

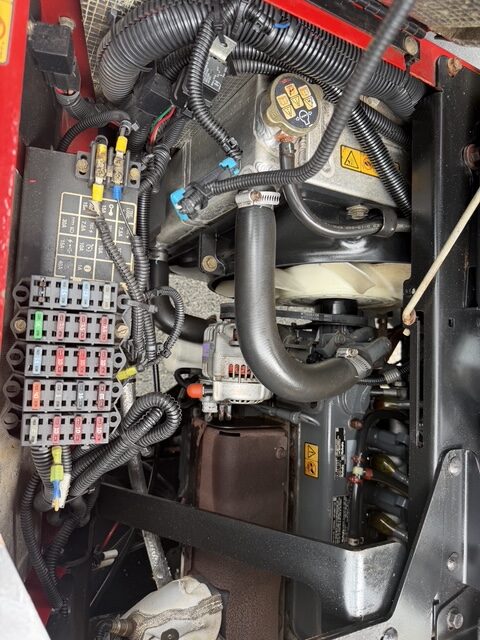

| Power Train (Engine Description) | Kubota® WG1605, rated output: 50 hp (37.3 kW), 1.6 liter, 4-cylinder liquid-cooled gasoline engine with electronic fuel injection, throttle control, three-way catalytic converter, gear-driven valve train, and a diagnostic port. |
| Rated Capacity | 300 U.S. gal. (1,135.6 L) |

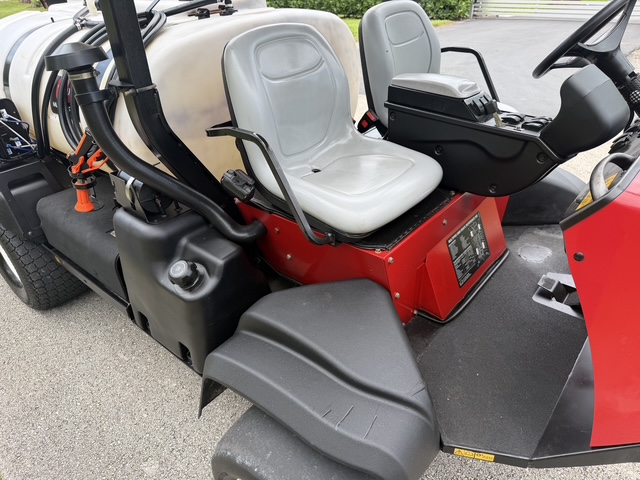

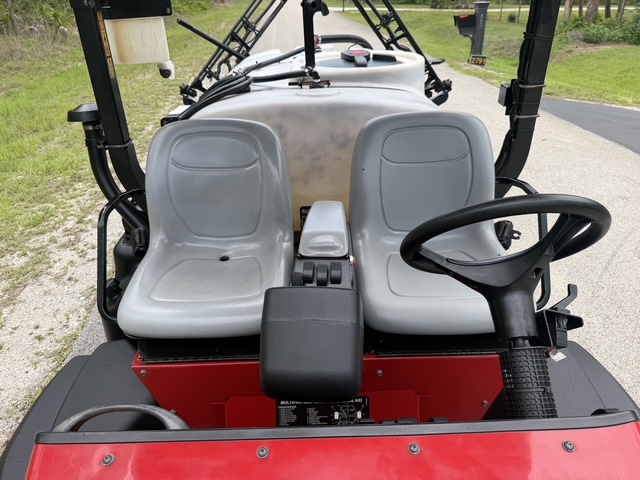

| Seat | Bucket seats with easy tilt forward bracket; removable bolts allow for adjustment for various seat positions; seats are interchangeable from left to right. |

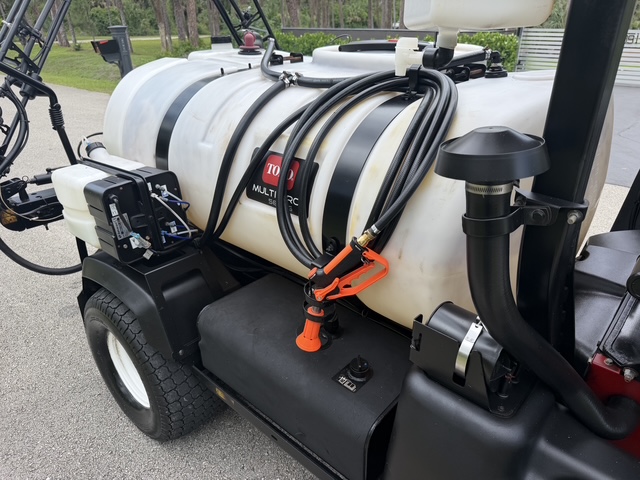

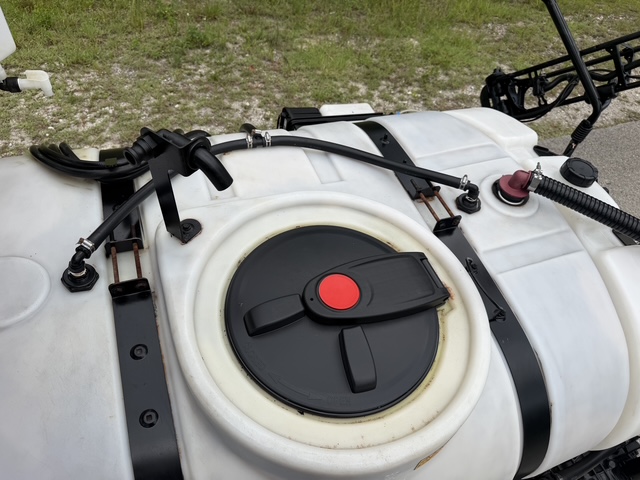

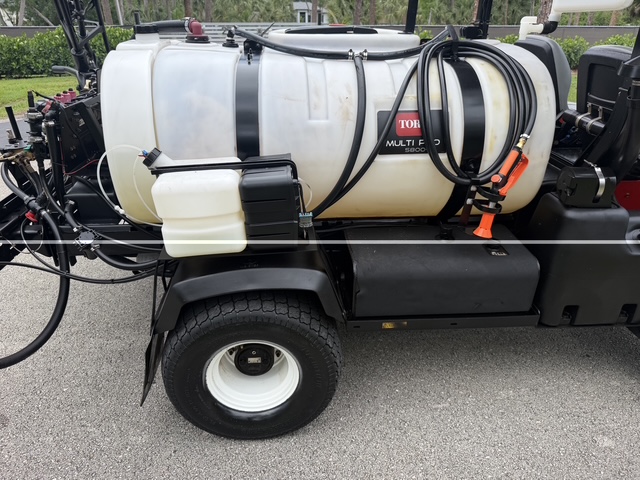

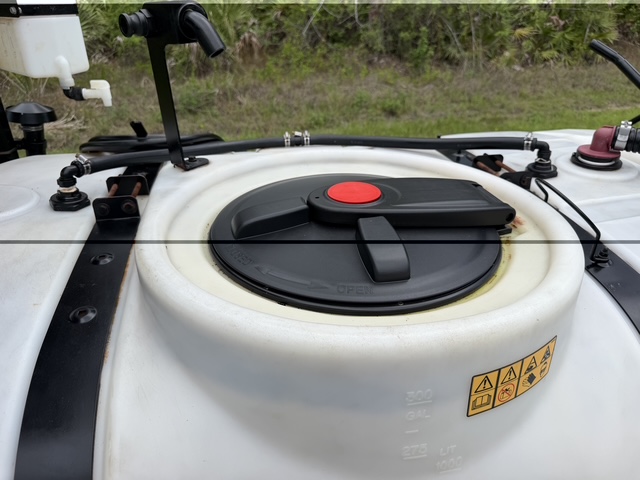

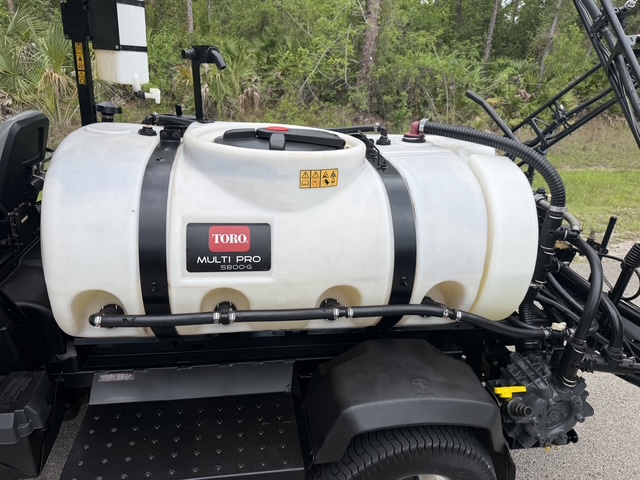

| Solution Tank | Elliptical, high-density, impact-resistant polyethylene with large 16” (41 cm) fill opening. |
| Sound Level | 90 dB(A) at operator ear under normal operation |

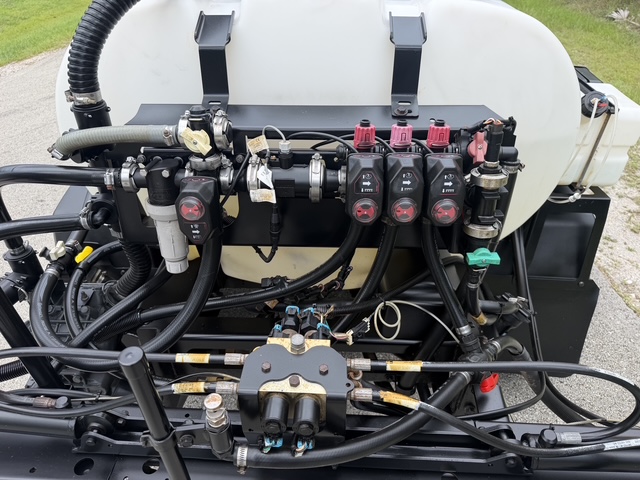

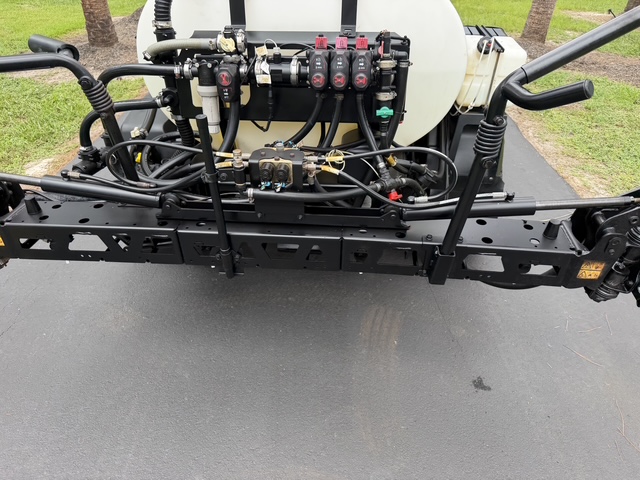

| Spray Controls | Spray pump switch; tank agitation switch; individual boom section switches; master boom switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; ExcelaRate™ automatic spray rate control (via InfoCenter). Sonic Boom leveling Kit. |

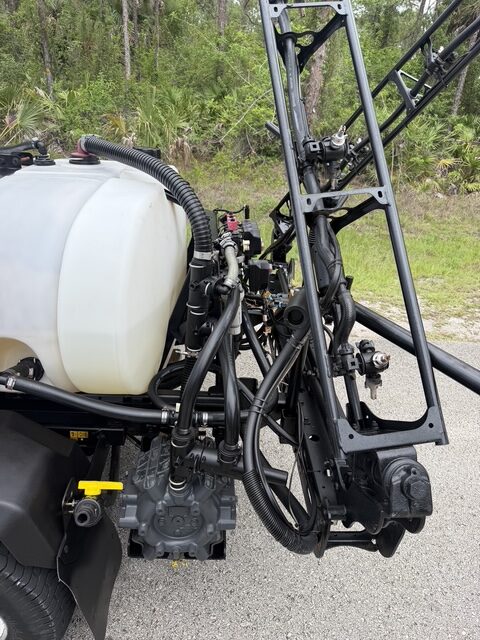

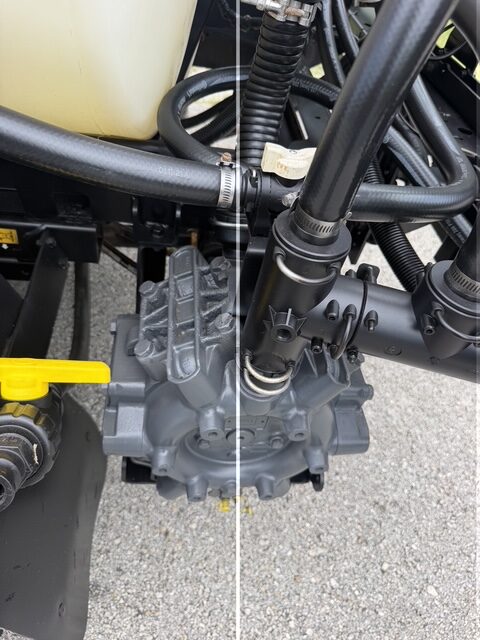

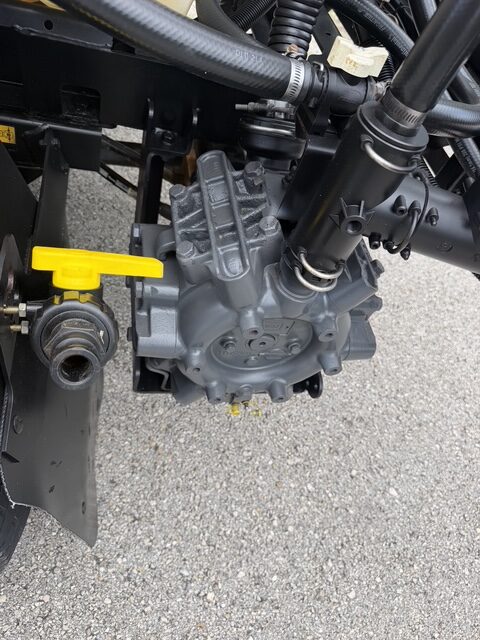

| Spray Pump | Hardi 364 / 10.0 6-diaphragm positive displacement; flow rate 45 gpm (170.3 lpm), 220 psi (1500 kpa) maximums. |
| Steering System Description | Fully hydraulic with dedicated power source, 48° steering angle. |

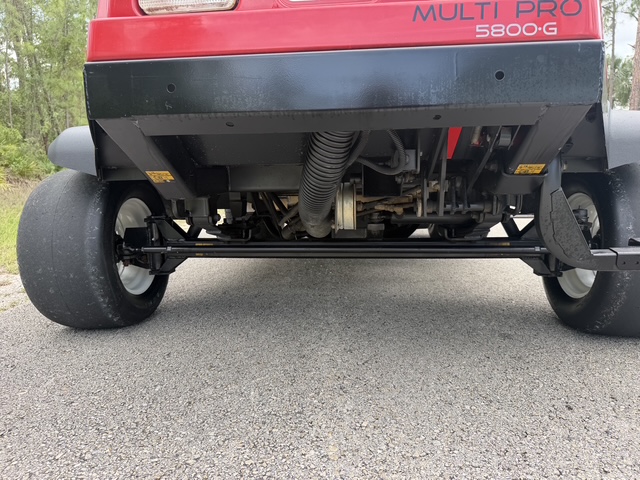

| Suspension | Front: straight axle with twin independent leaf springs and dual shock absorbers. Rear: rigid with high flotation rear tires. |
| Tires – Front | 22″ x 12″ – 12″, 4-ply, No Tread |
| Tires – Rear | 26.5″ x 14″ – 12″, 6-ply |
| Traction System | Hydrostatic system driving double planetary gear reduction rear wheel drives; foot pedal control of forward/reverse ground speed. |
| Turning Diameter | 15′-7″ (4.7 m) front tire inside 26′-7″ (8.1 m) front tire outside |
| Valve Actuators | 12 total triple-turret nozzle mounts with diaphragm check valves. |

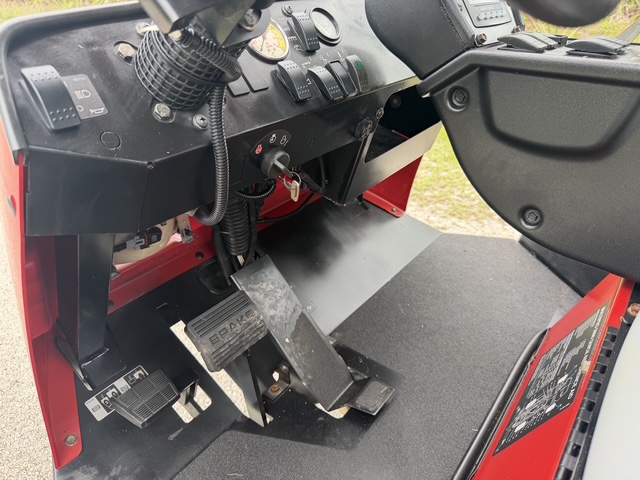

| Vehicle Controls | Throttle control; spray pump switch; tank agitation switch; individual boom section switches; master boom switch; speed-lock switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; USB port; 12V power socket; ExcelaRate™ automatic spray rate control (via InfoCenter). |
| Weight | Drive-on weight: 2,882 lbs. (1,307 kg), Shipping weight: 2,882 lbs. (1,307 kg), Empty vehicle: 2,882 lbs. (1,307 kg), Full w/ Operator: 5,692 lbs. (2,582 kg), MGVW: 6,692 lbs. (3,035 kg) |
