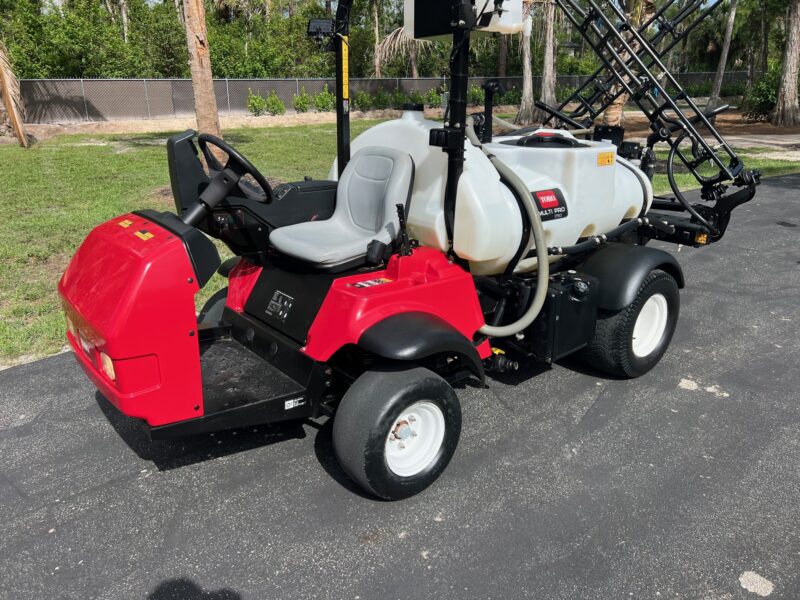

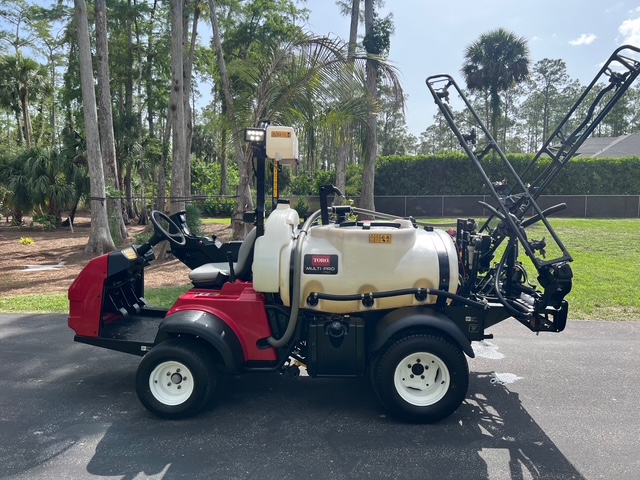

2020 Toro Multipro 1750 Sprayer

Description

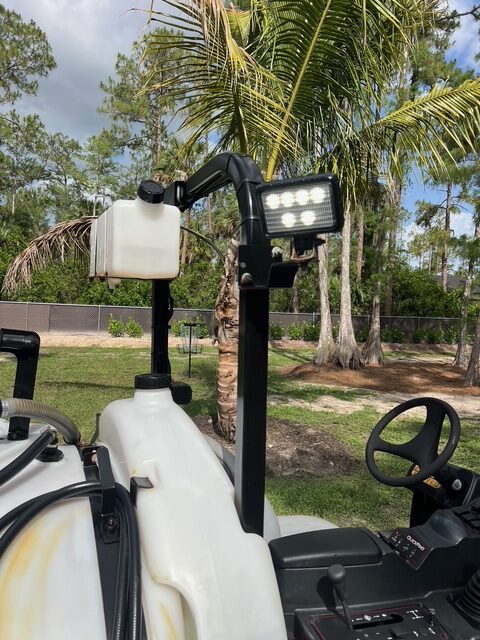

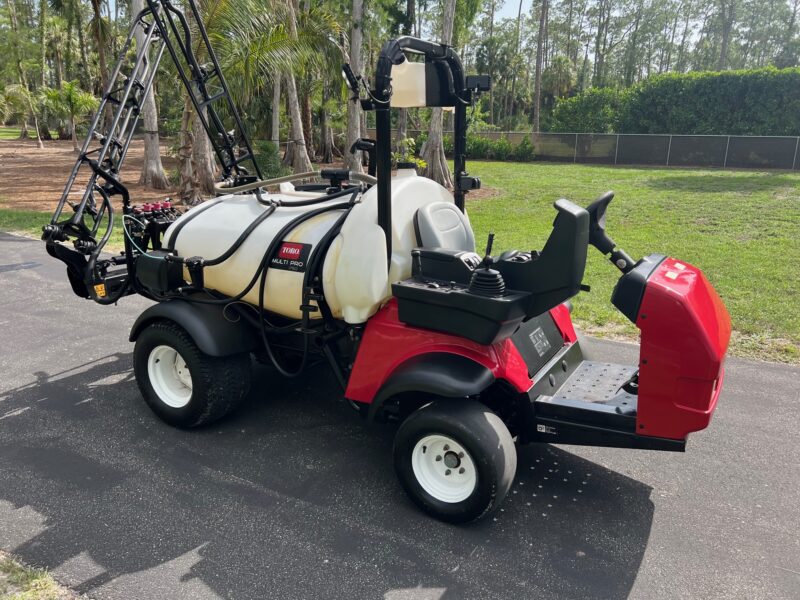

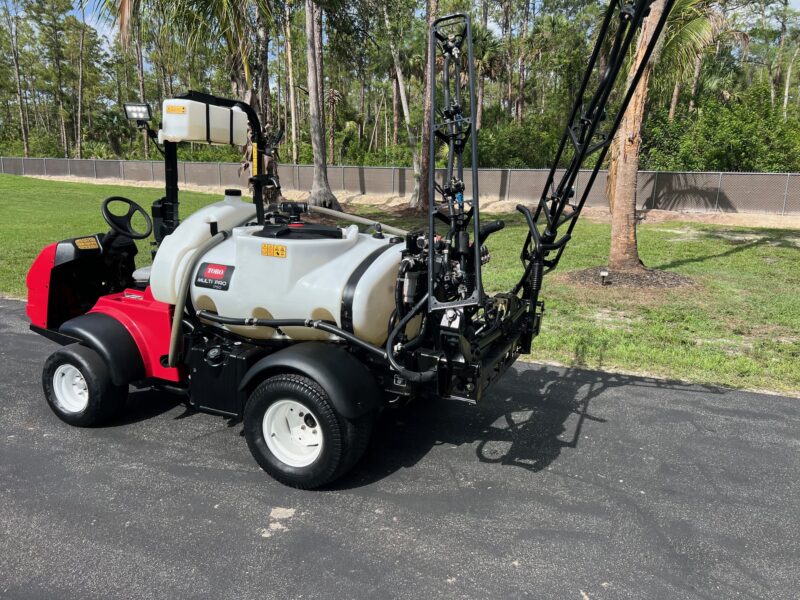

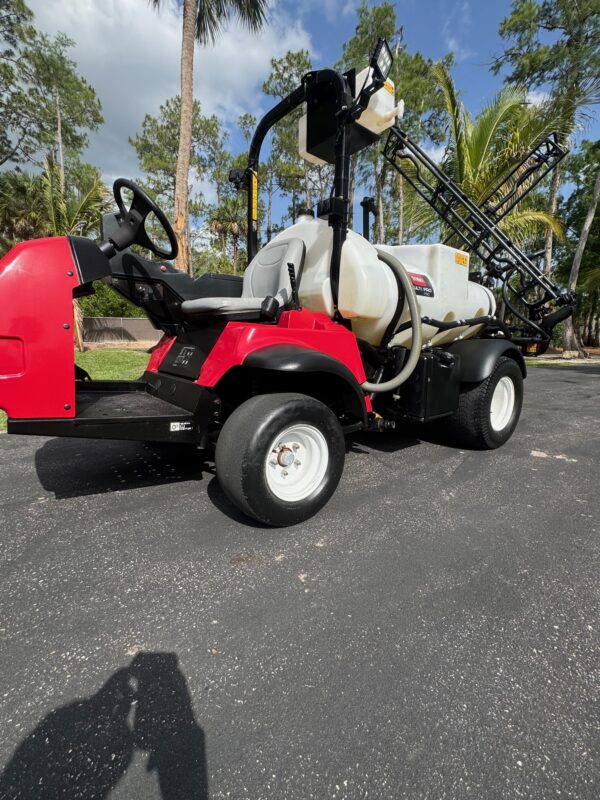

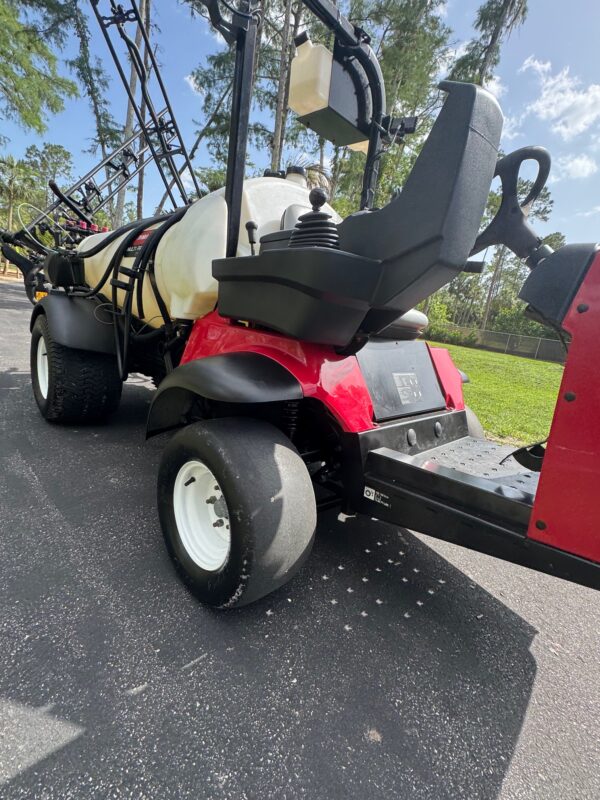

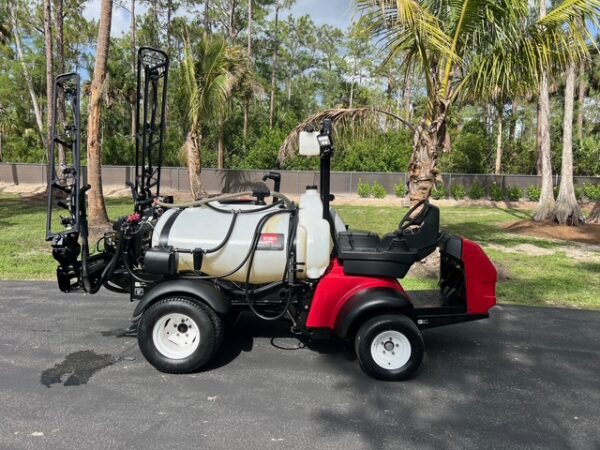

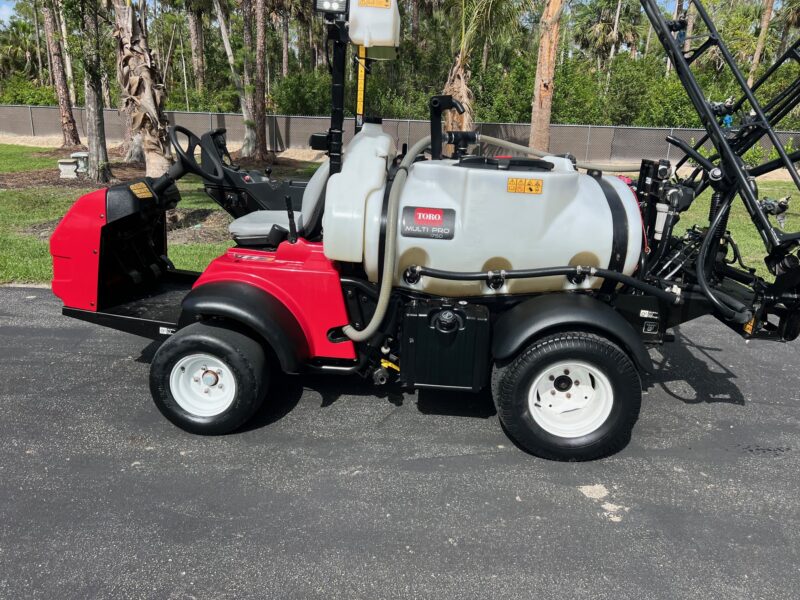

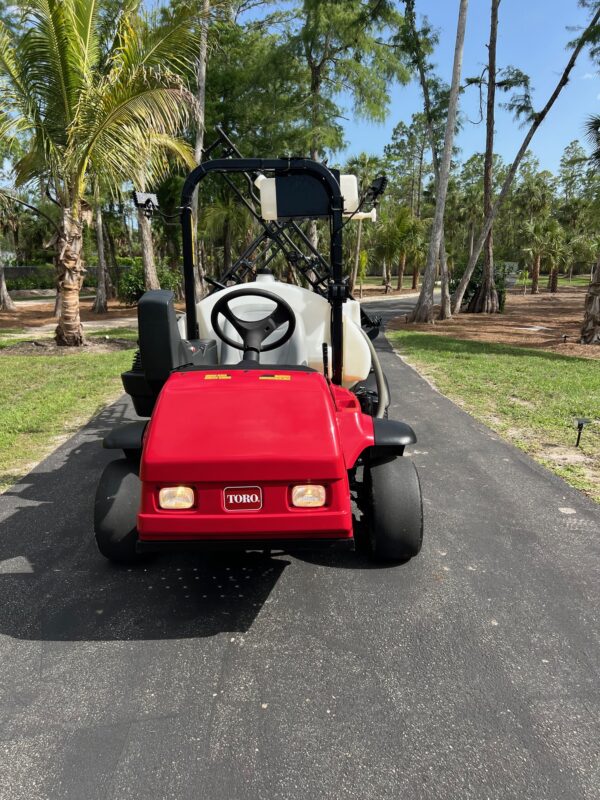

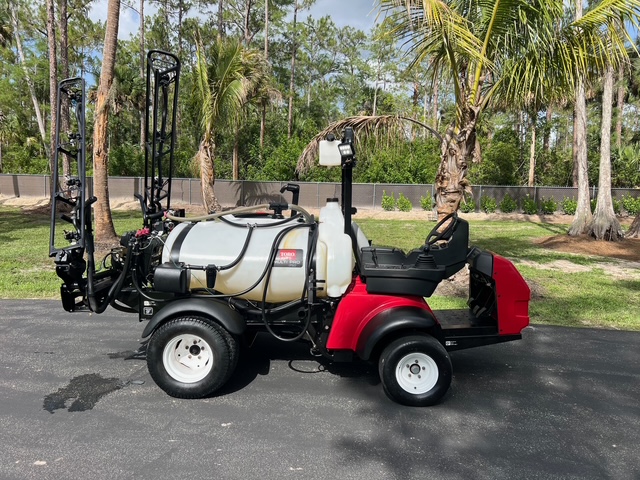

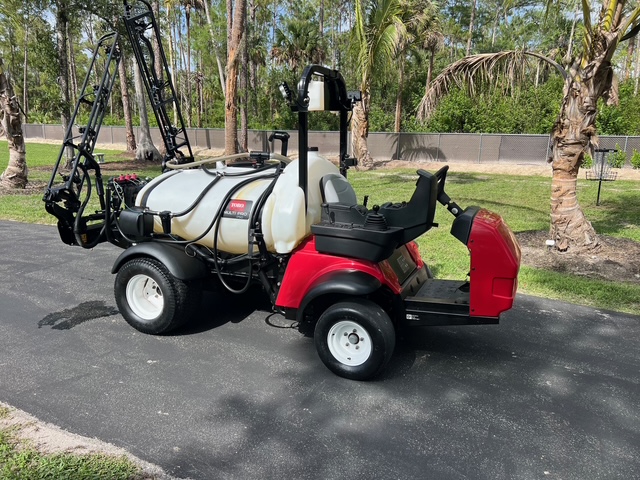

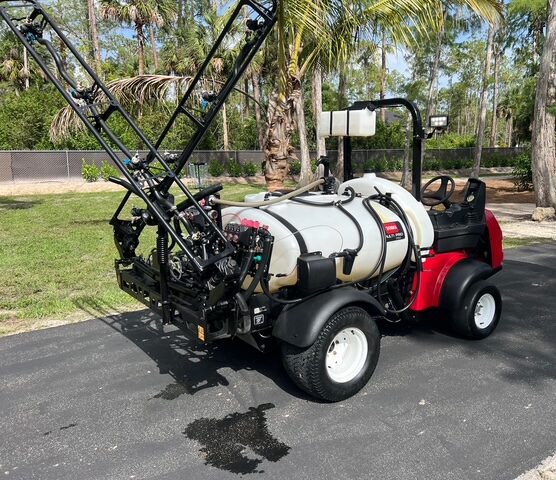

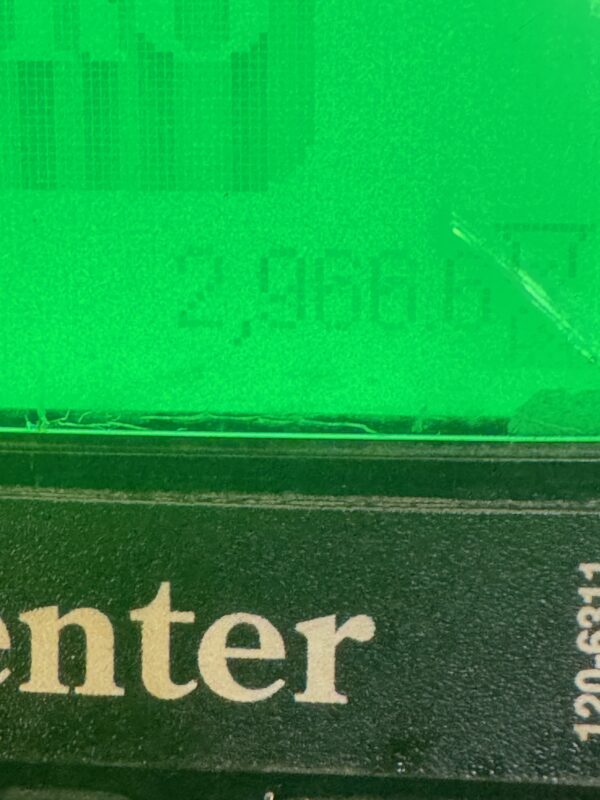

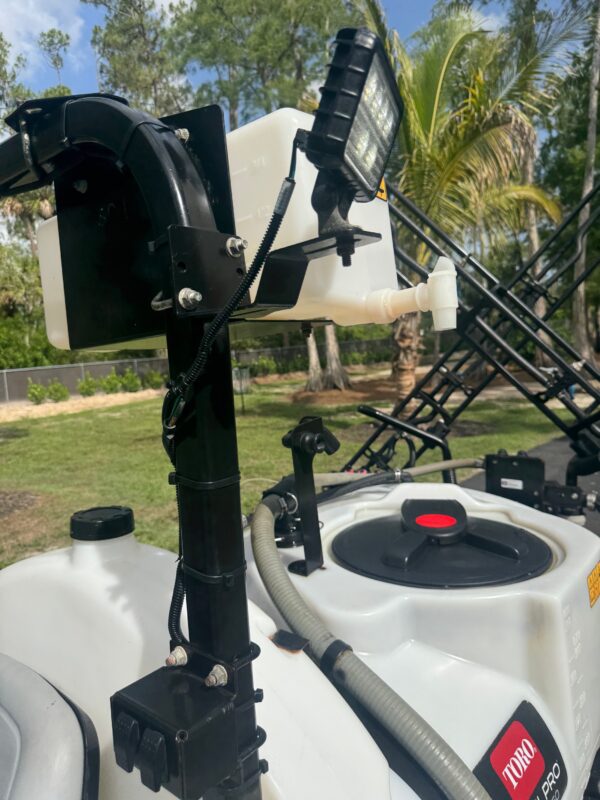

Beautiful 2020 Toro Multipro 1750 Sprayer that is in excellent condition. It currently has 2966 machine hours. The sprayer has a brand new pump, brand new clutch, LED lights atop to see the booms in the dark, and new tires. The sprayer works like a brand new sprayer and operates like a new one. All the nozzles and booms work, the hydraulic pistons are in excellent condition, and the tank and frame are in excellent condition. It’s a must have!

Specifications
Agitator
Three side-mounted jet agitation nozzles for full tank agitation.
Boom Actuators

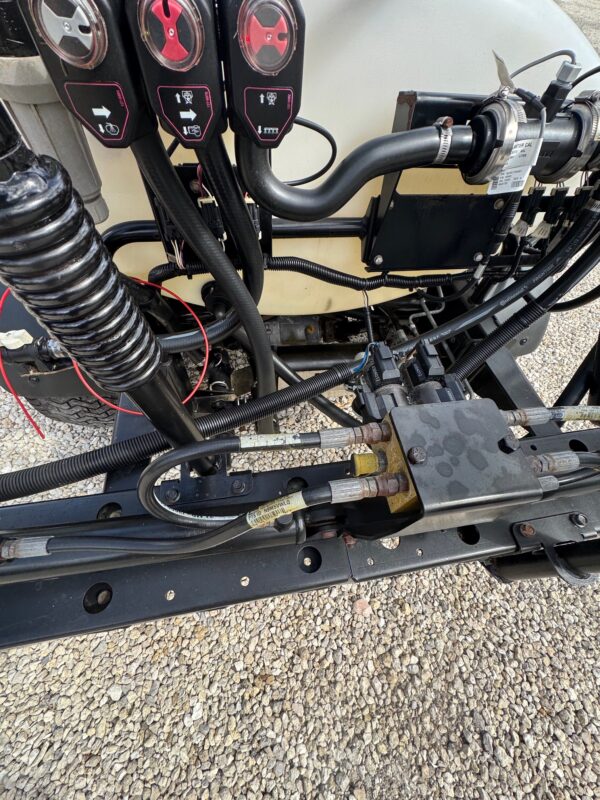

Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4″ (4.4 cm) Bore x 10.06″ (25.6 cm) stroke.

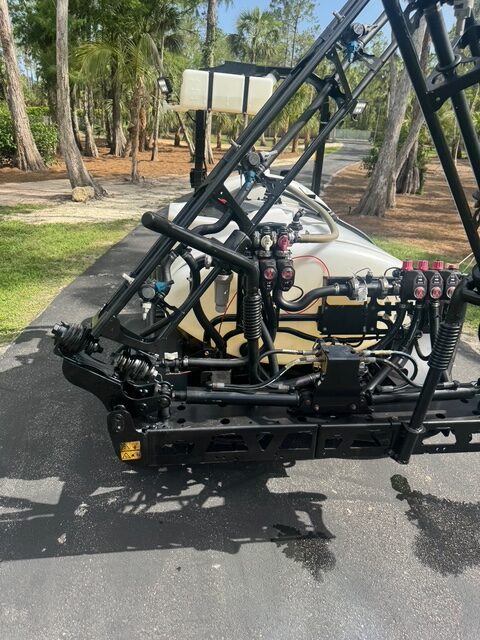

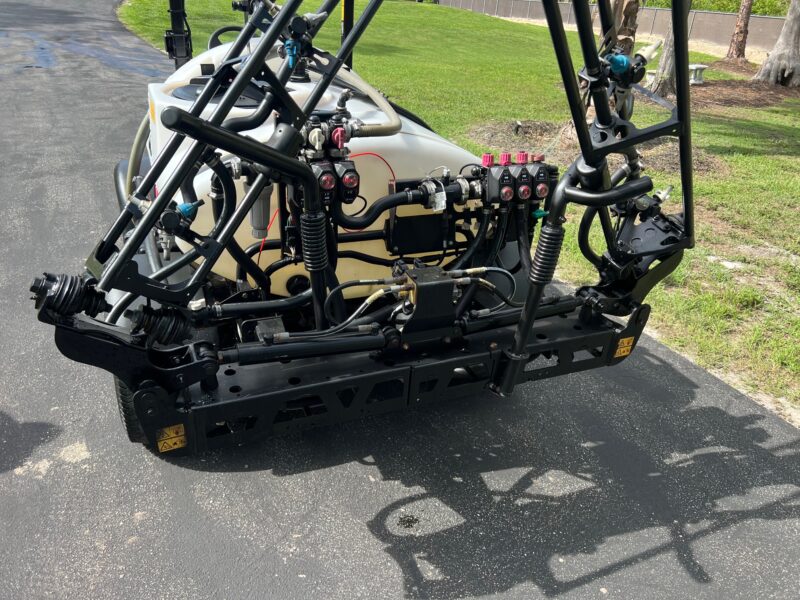

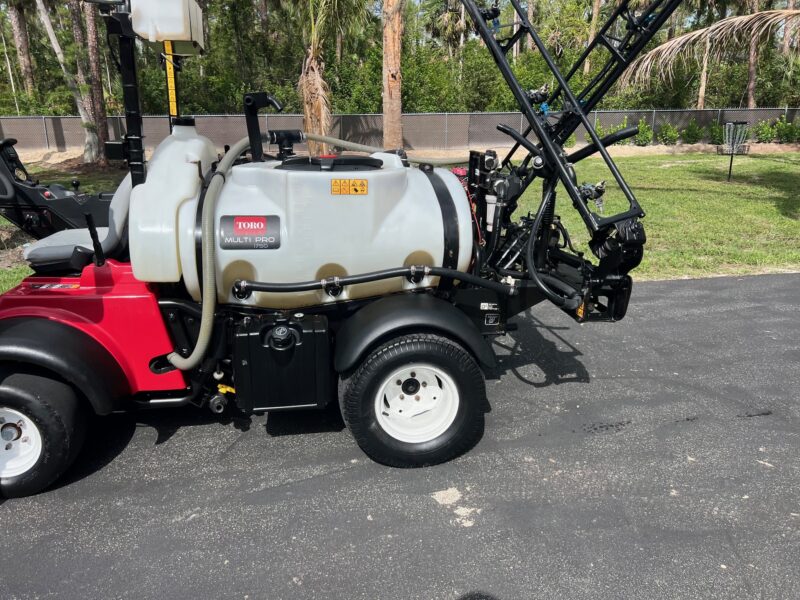

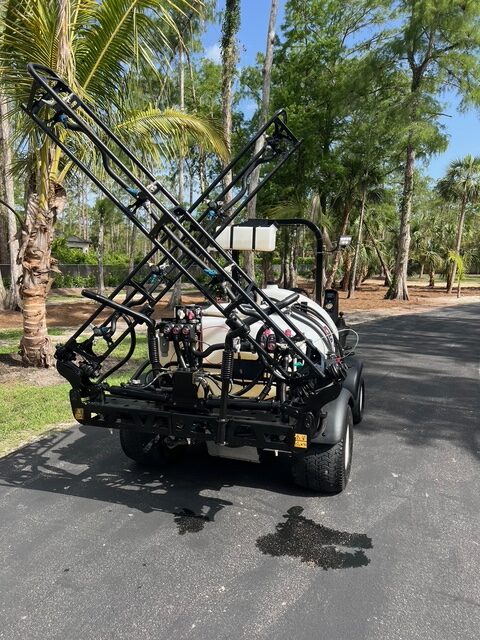

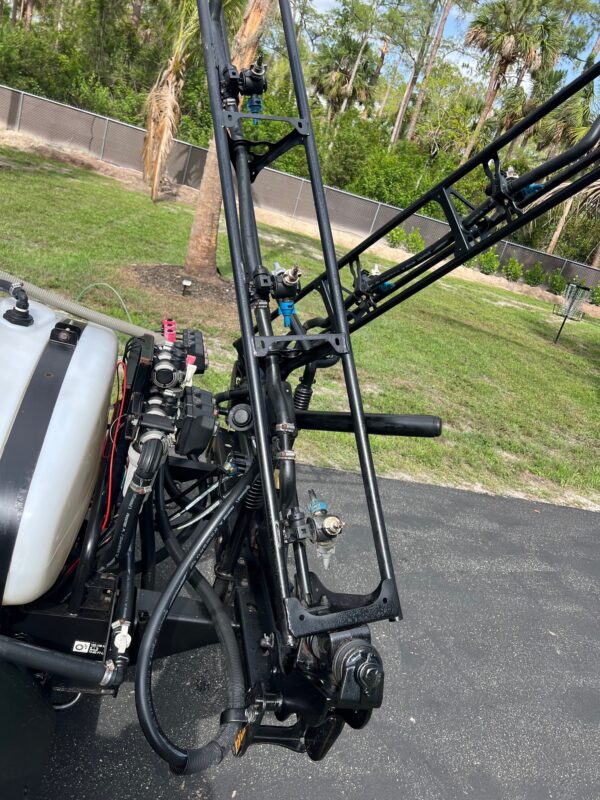

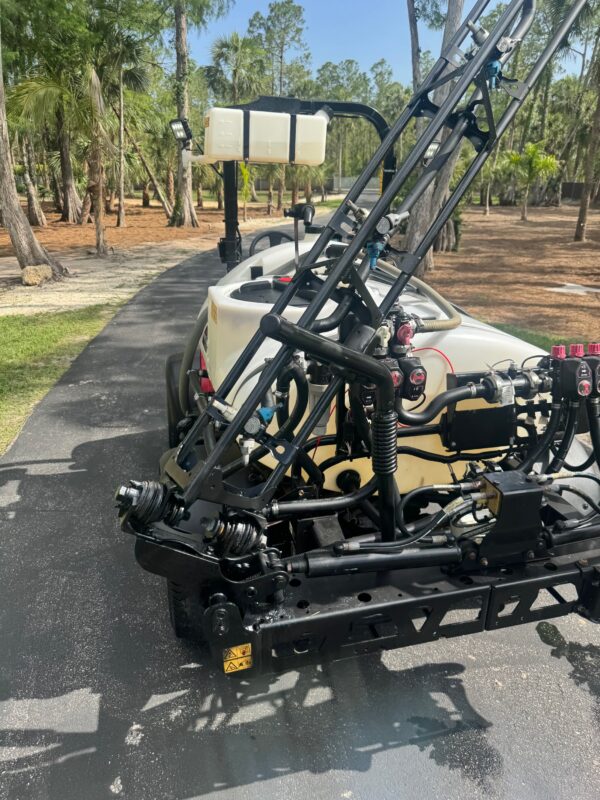

Boom Assembly

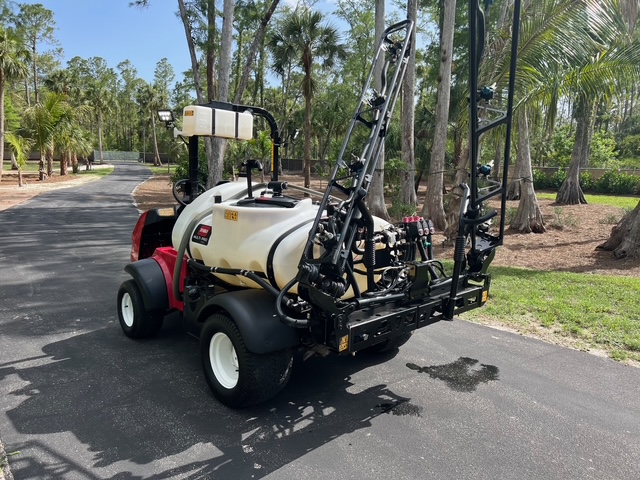

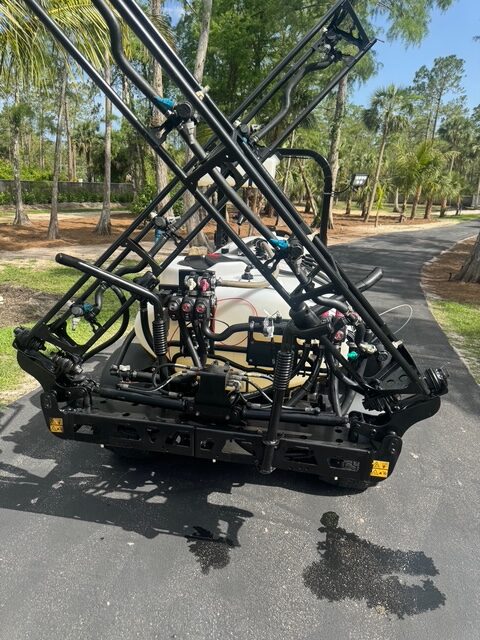

18.5′ (5.6 m) three-section, triangular truss-style open booms, expandable to 20.5′ (6.3 m) with optional kit. Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
Brakes
Four wheel hydraulic disc, 2-piston calipers; Front: 7.5″ (19 cm) diameter rotor, Rear: 9.5″ (24 cm) diameter rotor.
Cooling System
Air-cooled engine.
Electrical System
12-volt battery, 300 cold cranking amps at 0° F (-18° C). 12-volt, 60 Amp alternator. Dash mounted ignition switch.
Fuel System

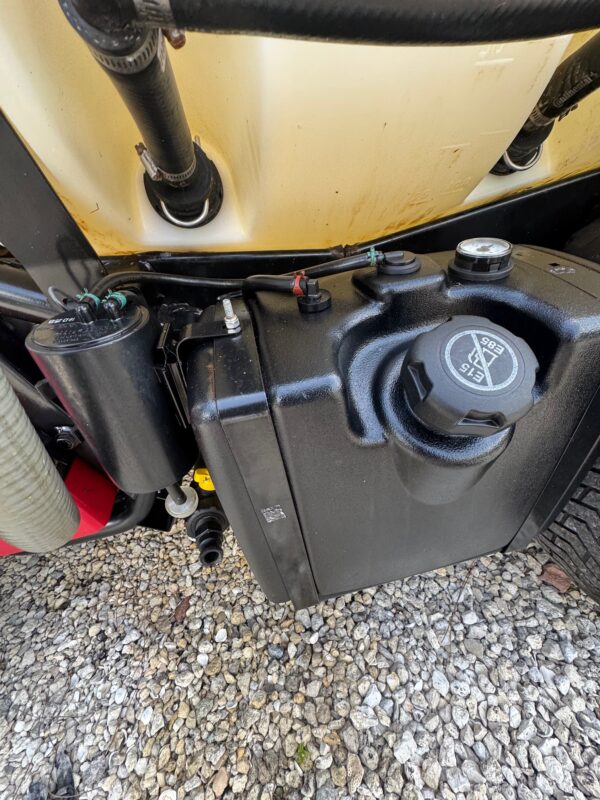

5 gallon molded Roto-Low Perm tank with 1.5″ fill opening, non-vented cap w/tether, mechanical float-type fuel gauge and roll-over valve; carbon vapor canister; mechanical fuel pump
Gauges/Instrumentation

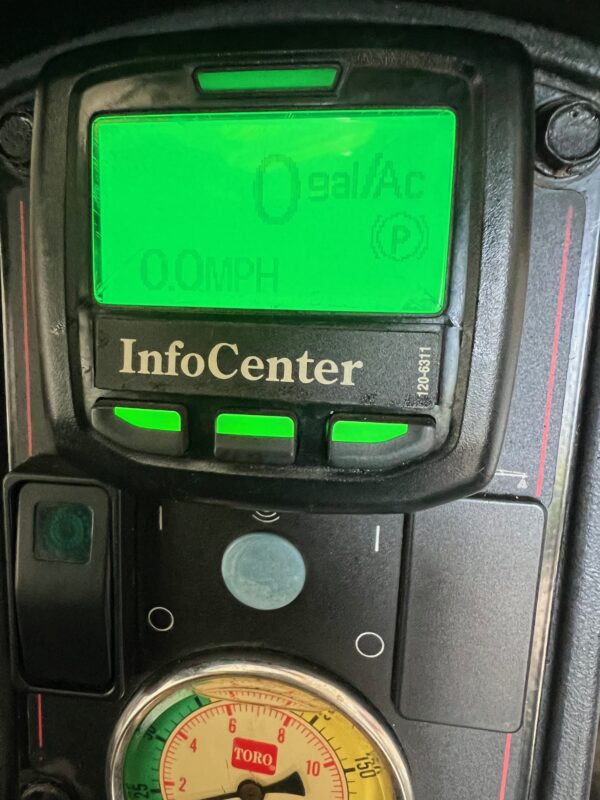

Multi-function display (InfoCenter™), analog pressure gauge, mechanical fuel gauge.
GeoLink® Capable
Yes

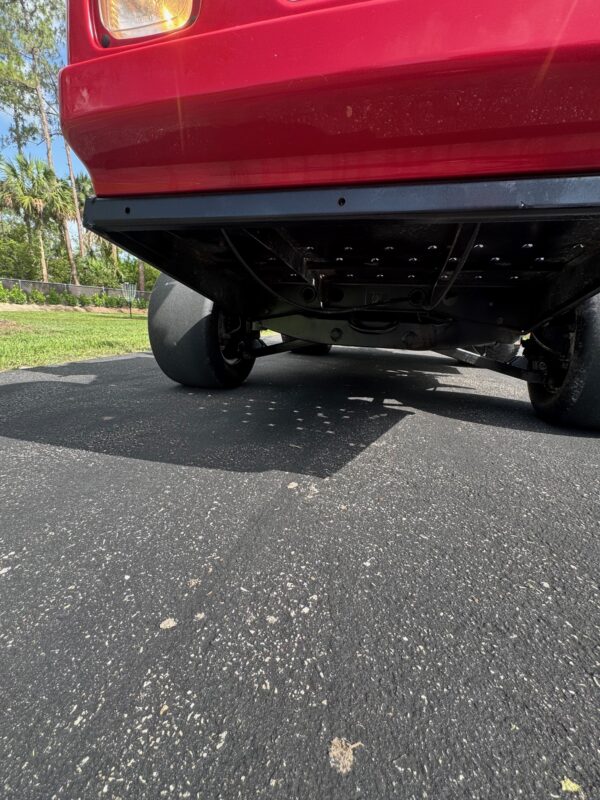

Ground Clearance
5.5″ (13.9 cm)
Ground Speed
Forward: 0 – 11.5 mph (0 – 18.5 kph) Reverse: 0 – 2.5 mph (0 – 4 kph)
Height
97″ (2.4 m) [with booms folded in cradles]
Length
140” (3.55 m) [with booms folded in cradles]
Lights

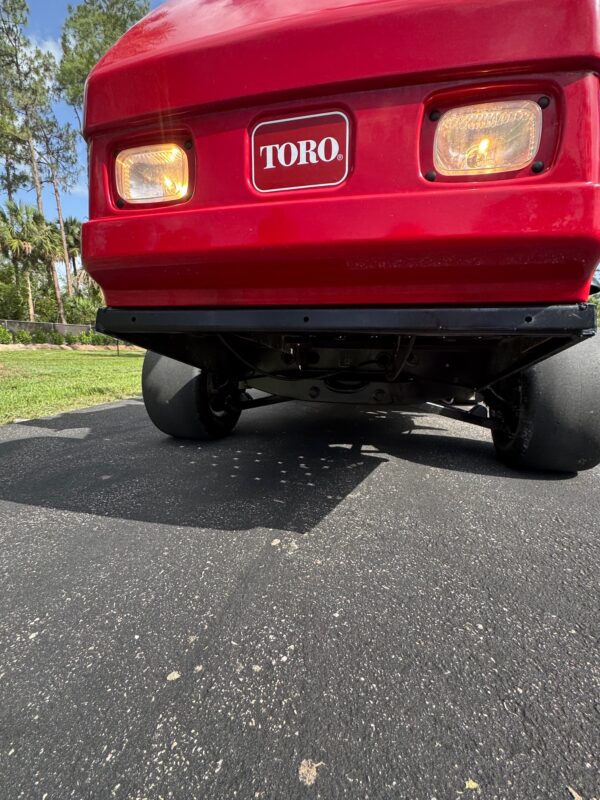

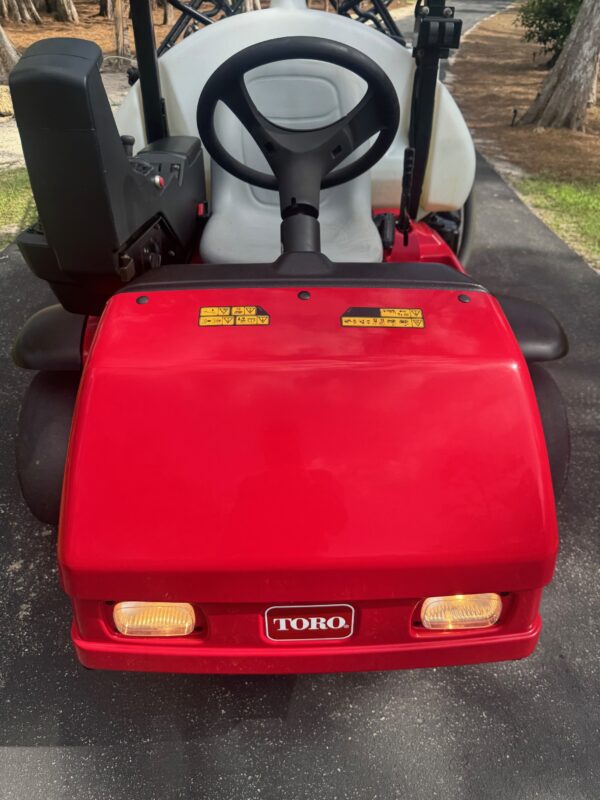

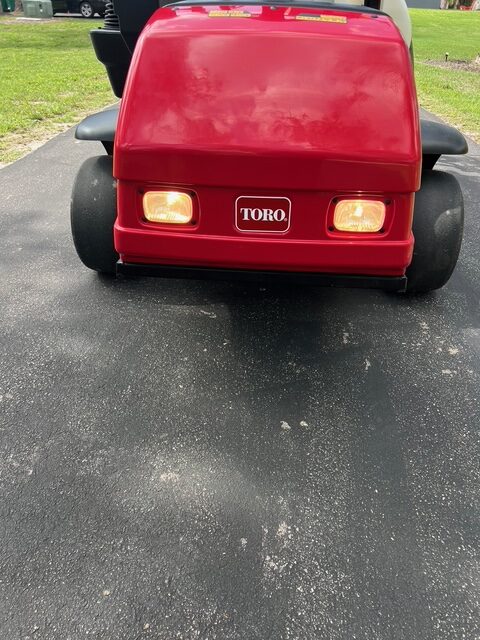

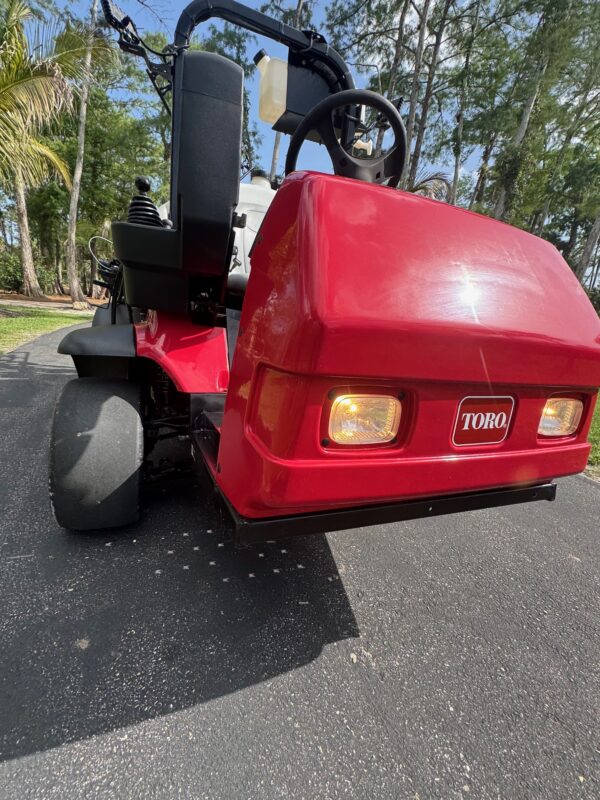

Rectangular 12-volt, 37.5 watt halogen sealed beam headlights.
Main Frame/Chassis
High-strength, formed steel rear frame channels welded to steel tubular crossmembers and upper/lower steel tubular structure, ROPS standard.
Overall Width
70″ (1.77 m) [with booms folded in cradles]
Power Train (Engine Description)

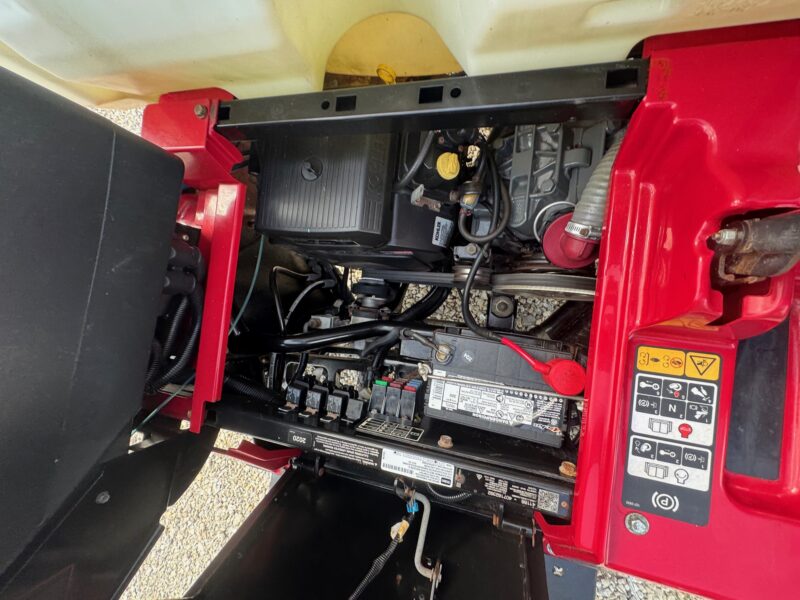

Kohler® CH740 Command Series, twin-cylinder, air-cooled, 4-cycle engine, 25 hp (18.6 kW) gross.
Rated Capacity
175 U.S. gal. (662.4 L)

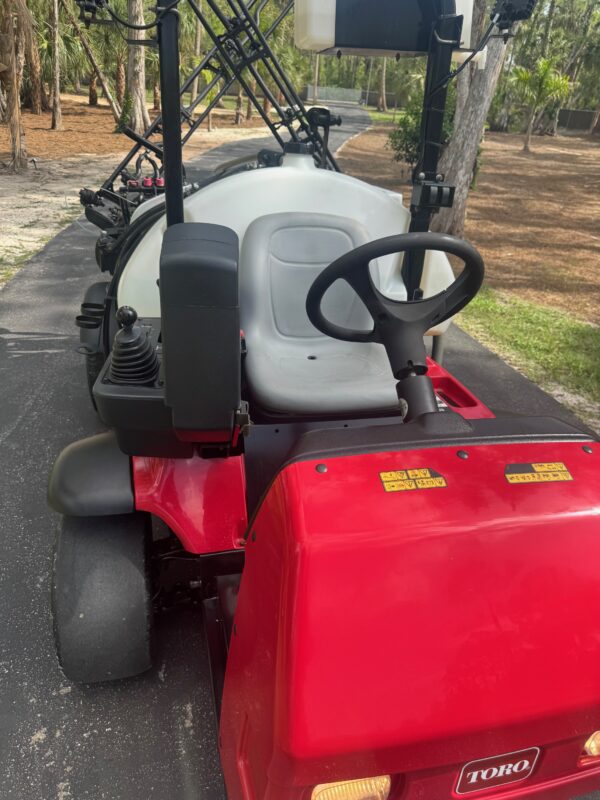

Seat

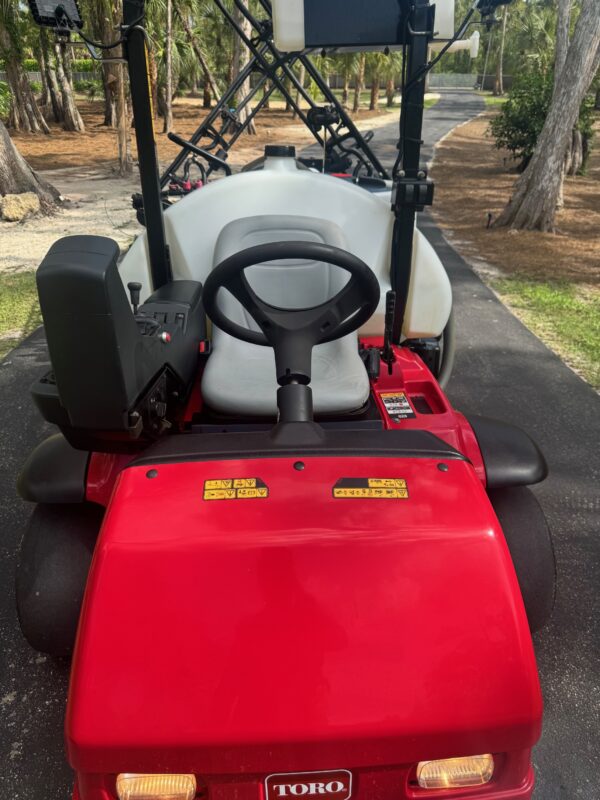

Single, high back cushion seat standard with manual position adjustment and seat belts.

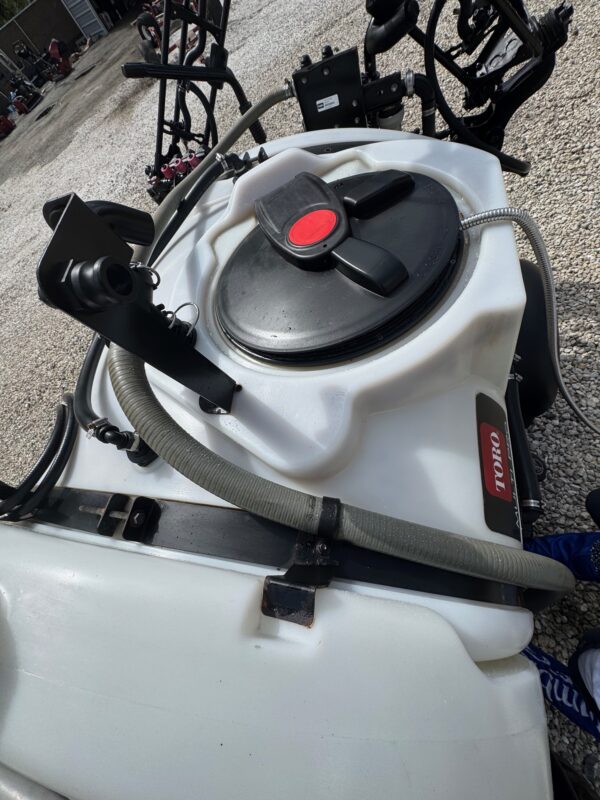

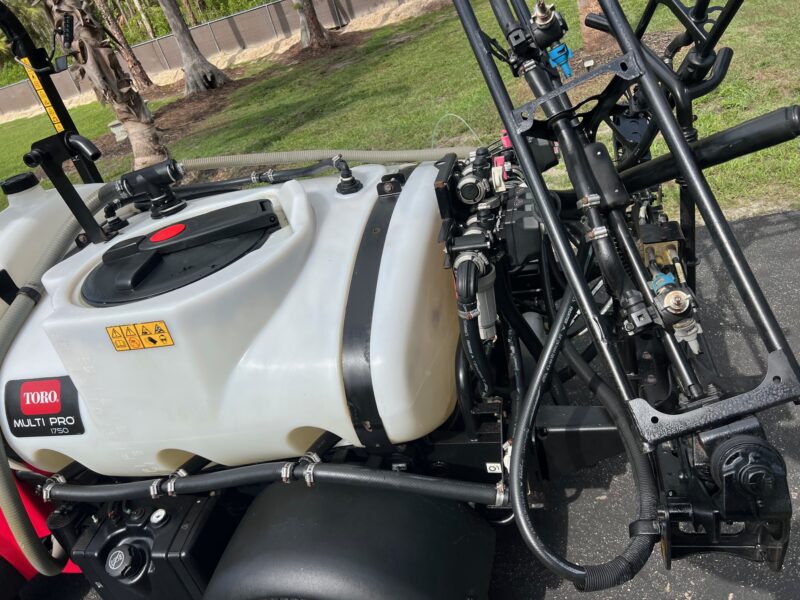

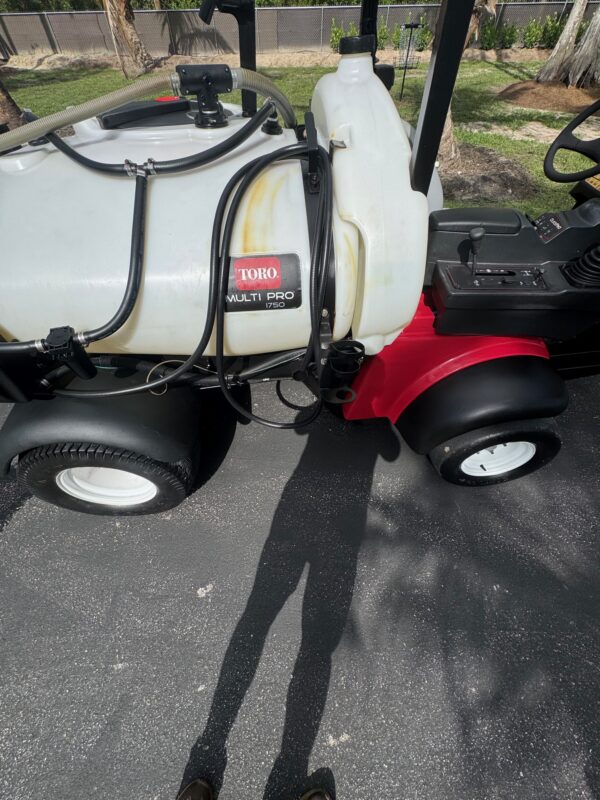

Solution Tank

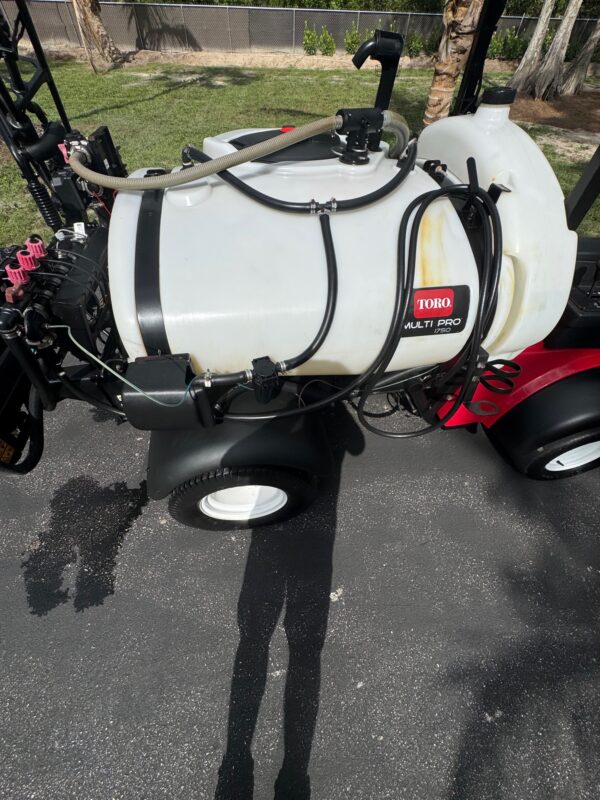

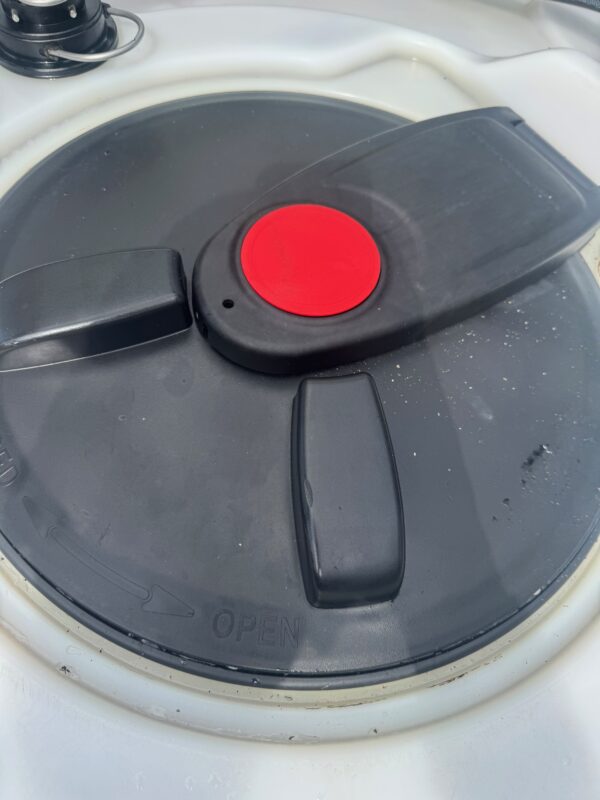

Elliptical, high-density, impact-resistant polyethylene with large 16″ (41 cm) fill well opening; tapered bottom and sump with drain.
Sound Level
86 dB(A) at operator ear under normal operation
Spray Controls

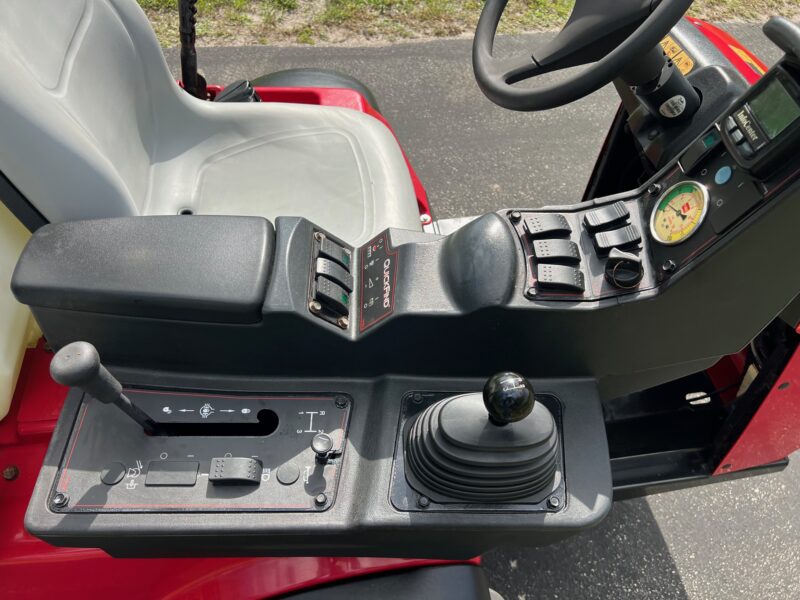

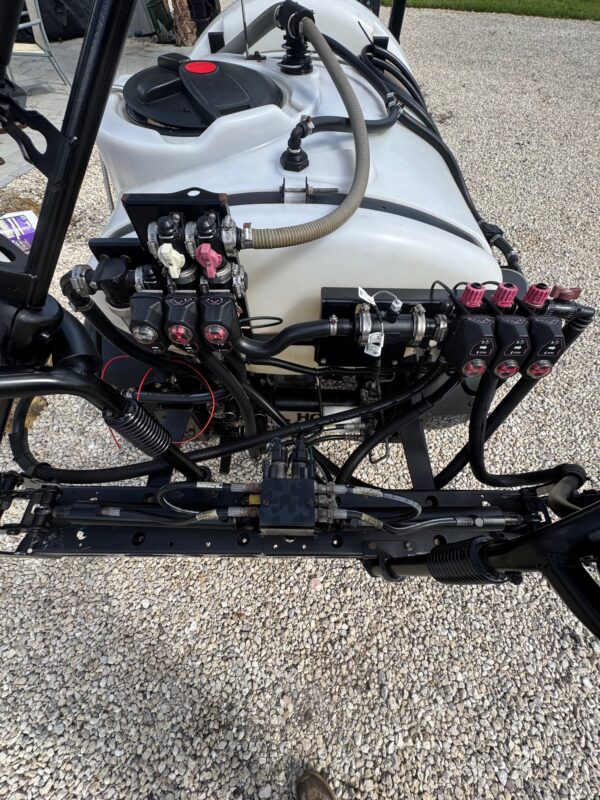

Spray pump control switch, agitator jet switch, rate switch, individual boom on/off switches, boom actuator switches, indicator lights on pump, agitation & boom switches, throttle lock, app rate lock-out.
Spray Pump
Hardi 364/5.5, 6-diaphragm positive displacement w/ 1″ (2.5 cm) input shaft; input speed 300~860 rpm, Flow rate of 45 gpm (170.3 lmp) @ 40 psi (860 rpm).
Steering System Description
Fully hydraulic; steering wheel turns, lock to lock: 3.5
Suspension
Front suspension – Double A-Arm with coil over shock; Rear suspension – rigid; rubber tires.
Tires – Front
20″ x 10″ – 10″, 4-ply, Treadless

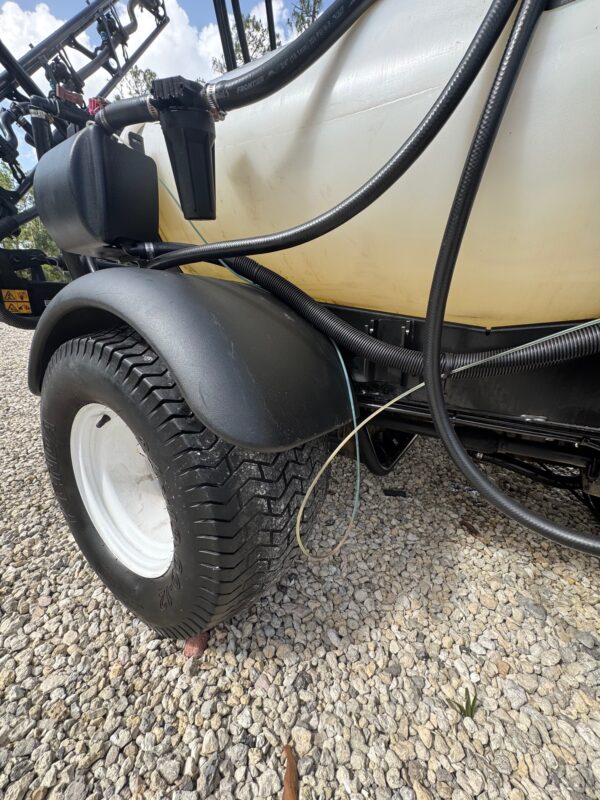

Tires – Rear
24” x 13” – 12”, 6-ply
Traction System
Kanzaki / Tuff Torq 3-speed (forward). 1-speed (reverse), mechanical transaxle with differential lock.
Turning Diameter
7′-2″ (2.2m) to sprayer centerline
Valve Actuators
Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.

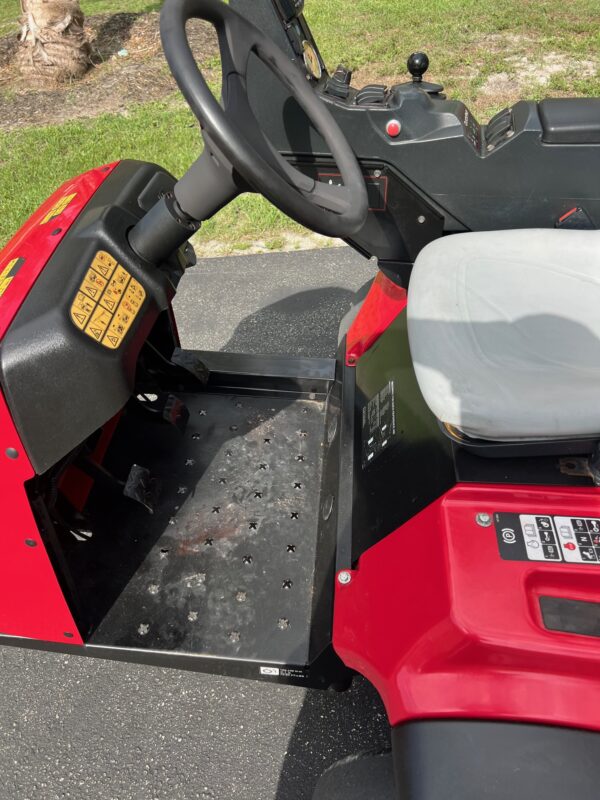

Vehicle Controls
Ignition key switch, choke, headlight switch, optional wireless hour meter, speed lock.
Weight
MGVW: 4,000 lbs. (1814 kg)
