2019 TORO Greensmaster 3150-Q Triplex Greens/Tees Mower

Description

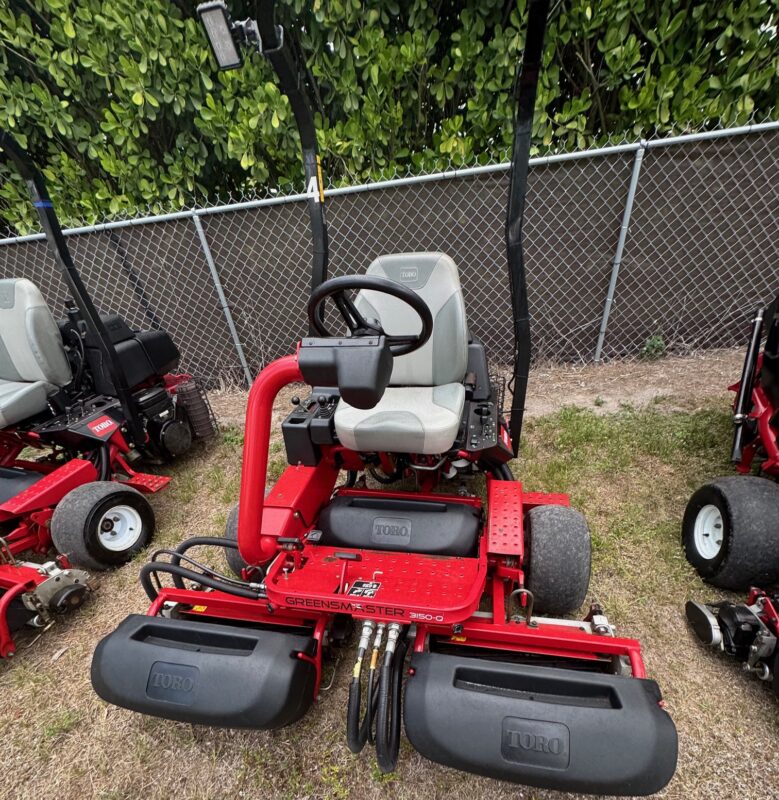

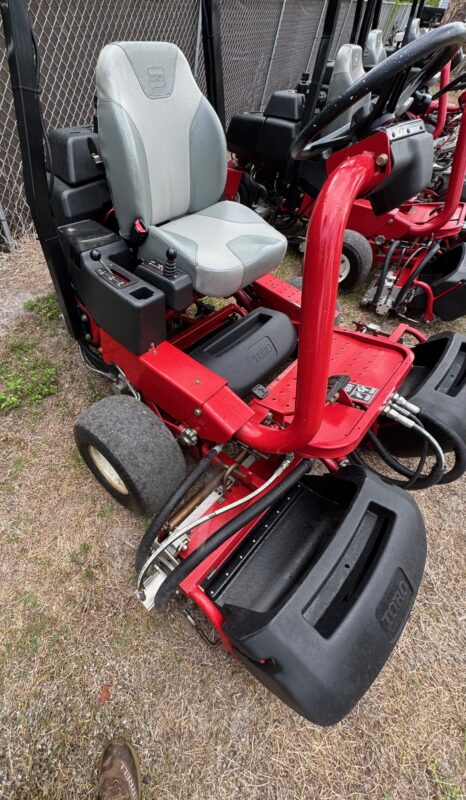

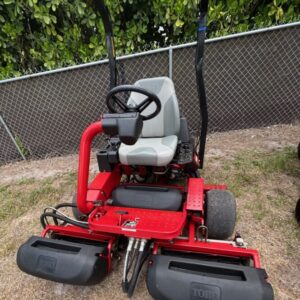

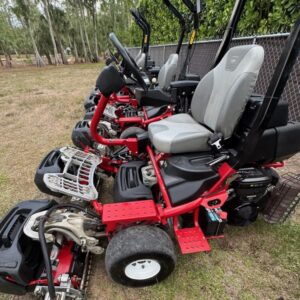

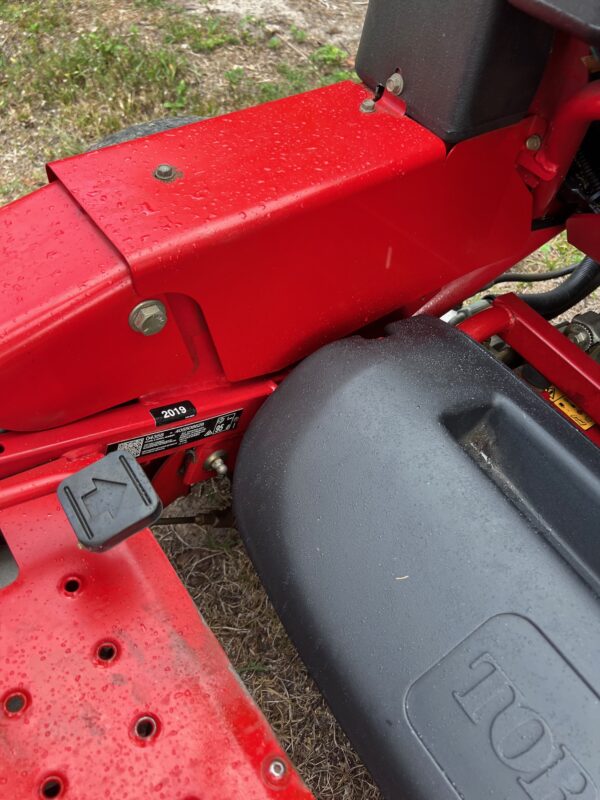

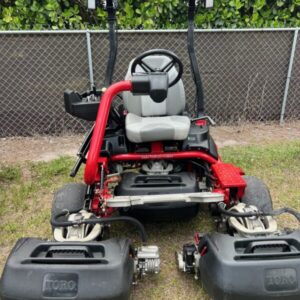

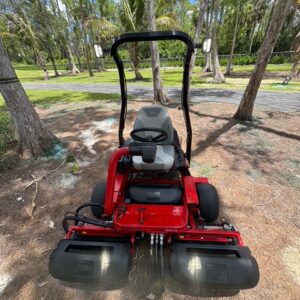

Beautiful 2019 TORO Greensmaster 3150-Q Model 04358 Greens/Tees Mower

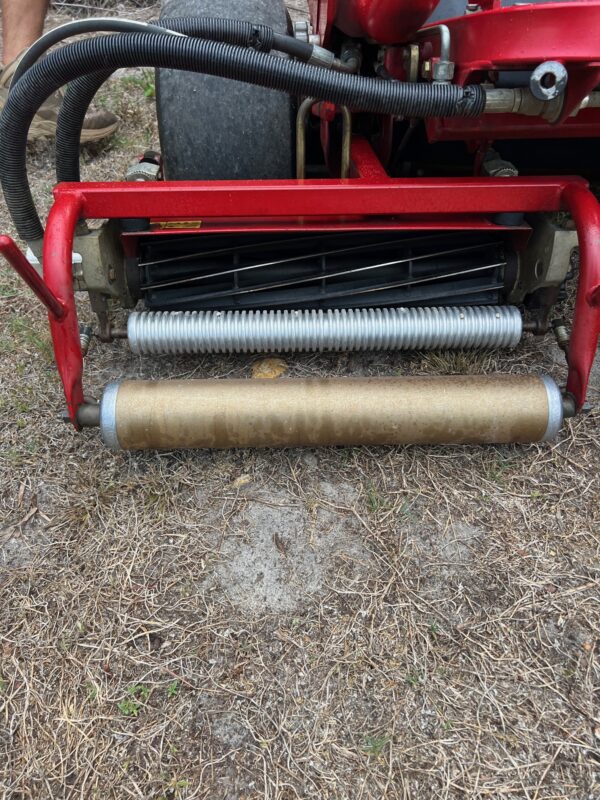

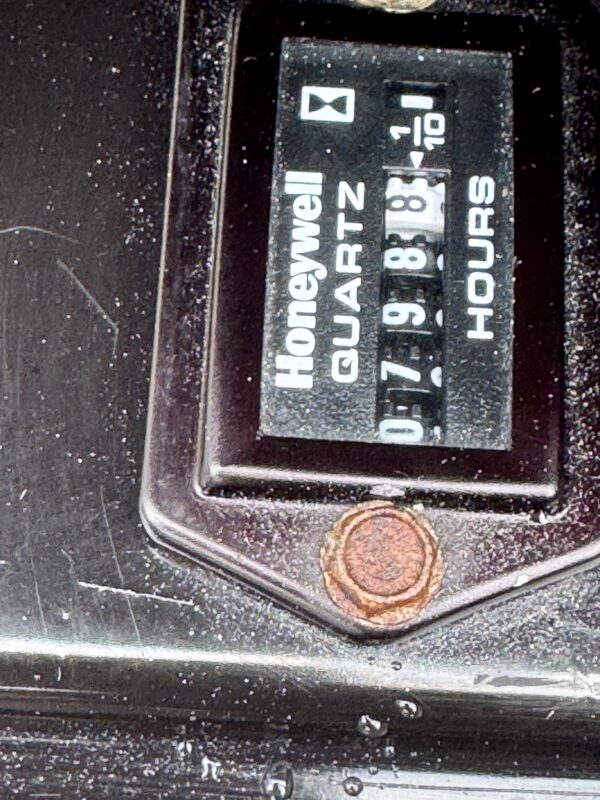

This unit comes with 798 hours, 3 catch baskets, 11 bladed reels, beautiful paint job, all in excellent working conditions. You may need to adjust the cutting height to your needs and specifications. The reel life is around 80%, the pictures show the high quality of the equipment. The rollers are great and tight. Low hours for a wonderful, modern machine.

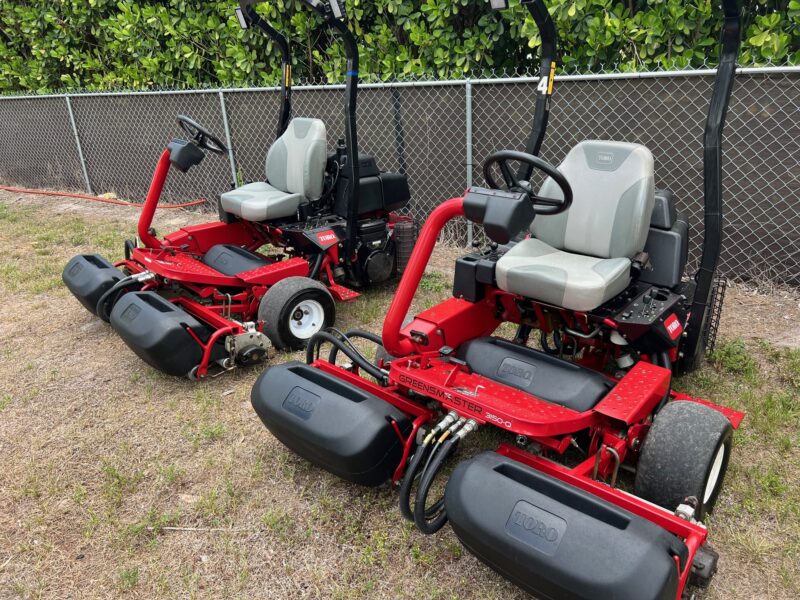

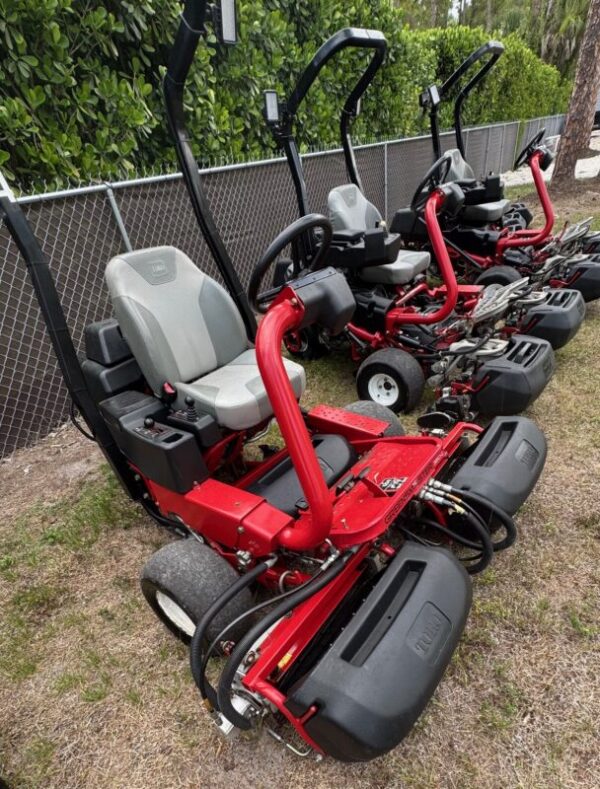

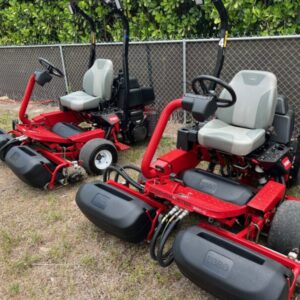

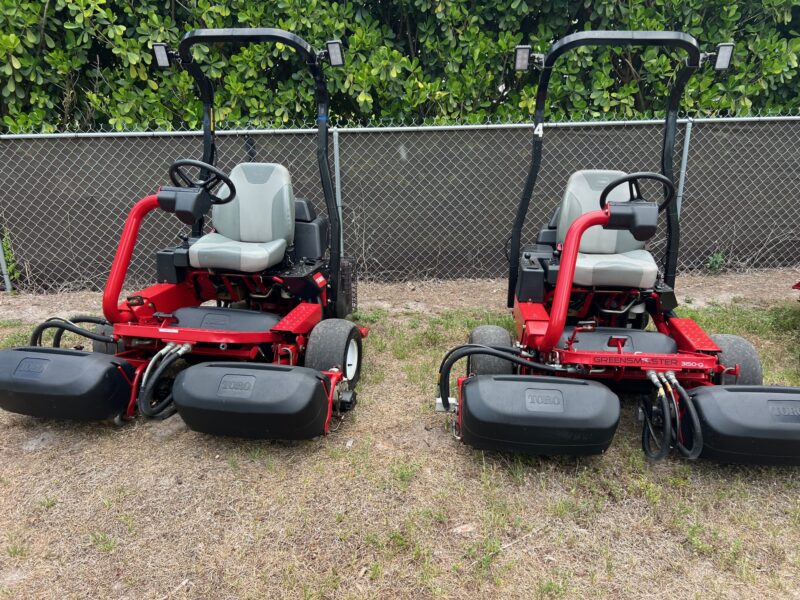

This is one of two units from the same model and year with very similar hours of usage. Contact us if you are interested in a multiple unit purchase.



Specifications

Battery

12V

Blade Style/Type

Reel

Clip Frequency/Backlapping

Adjustable up to 1975 RPM at 2850 engine RPM. Backlapping standard.

Drivetrain

Gas

Electrical System

12-volt lead acid, group size U1, with 300 minimum CCA at 0° F. 16 amp alternator.

Engine Cooling

 Air Cooled

Fuel / Power Source

Gasoline

Fuel Capacity

7 U.S. gal. (26.5 L)

Gauges/Instrumentation

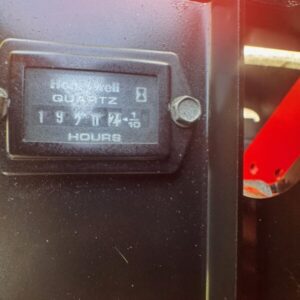

Hour Meter

Ground Pressure

8-12 psi (.55-.83 bar) (dependent on tire pressure) with operator and cutting units down.

Ground Speed – Forward

0 – 10 mph (0 – 16.1 km/h)

Height

74.5″ (189 cm)

Hydraulic Fluid Capacity

7.5 U.S. gal. (28.4 L) tank with internal baffle. 1 U.S. gal. (3.8 L) auxiliary tank.

Implement Drive

Single gear pump, mono valve block, series reel drive to 3 motors.

Leak Detection

Standard Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.

Mowing Speed

 2 – 5 mph (3.2 – 8 km/h)

Number of Blades

11

Parking/Service Brakes

Foot activated with two 6″ (15.2 cm) drum type brakes mounted on the front wheel motors.

Power Steering

Yes

Power Train (Engine Description)

Briggs and Stratton® air-cooled gasoline engine, 18 hp (13.4 kW) @ 3600 rpm, governed to 2850 rpm high idle, 1650 rpm low idle.

Product Length

90″ (229 cm)

Reel/Cylinder Drive

Hydraulic

Starting

 Electric

Steering System Description

 Adjustable steering wheel tilt and a 5-position steering arm tilt.

Tires

Front 18″ x 10.5″ – 8″, 4-ply, Smooth Tread

Tires

 Rear 18″ x 10.5″ – 8″, 4-ply, Smooth Tread

Transport Width Outside at Tires:

60″ (152.4 cm)

Outside at Reels:

69.7″ (177 cm)

Weight

1,087 lbs. (493 kg)

Wheelbase

47″ (119 cm)

Width of Cut

59″ (150 cm)
