2018 Toro Greensmaster 3150-Q Greens Mower Model 04358
$22,500.00
Description

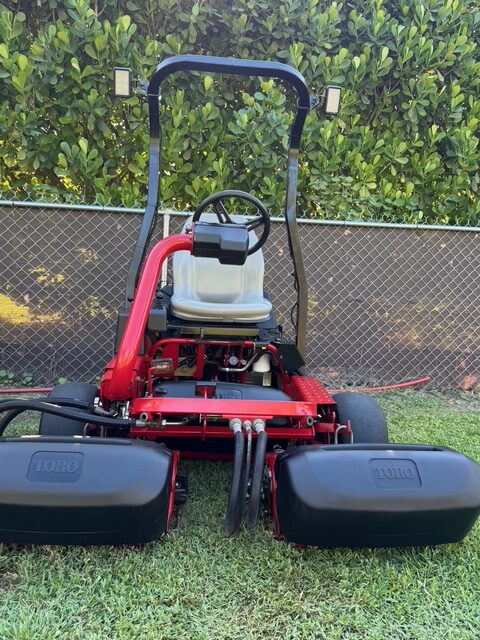

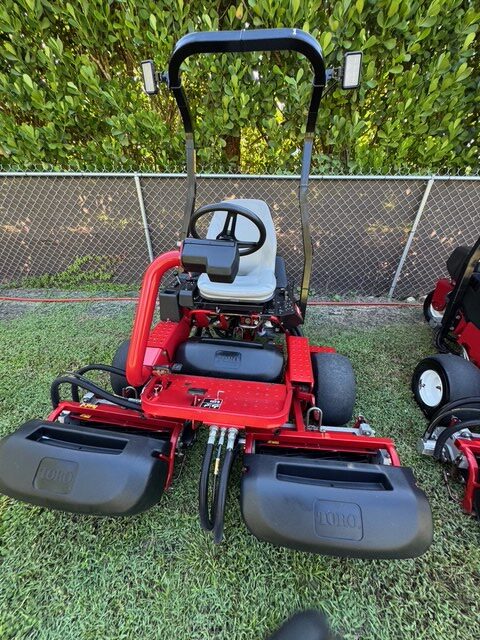

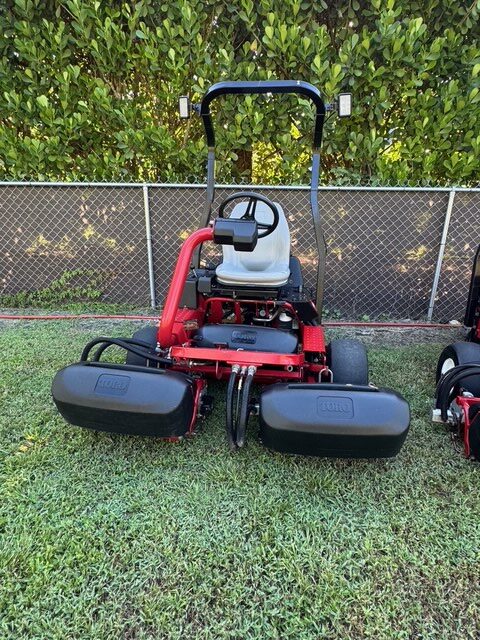

Gorgeous 2018 Toro Greensmaster 3150-Q Triplex Greens mower with only 1382 hours. This unit comes equipped with solid rollers in the front and has 11 bladed reels. Everything works perfectly and comes with catch baskets. This unit is one of two with the same year and model. The other unit has 1302 hours and comes with Wiehle front rollers. Please contact us for package orders and deals.
Specifications
| Hours | 1302 |
|---|---|
| Battery | 12V |
| Bedknife | Replaceable single-edged EdgeMax™ Microcut Bedknife is standard. |
| Bedknife Adjustment | Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.0007″ (0.018 mm) bedknife movement for each position. |
| Blade Style/Type | Reel |
| Blade Type (Description) | Reels are 5″ (13 cm) in diameter, 21″ (53.3 cm) in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 1.375″ (35 mm) diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut. |
| Backlapping | Backlapping standard. |
| Controls | Raise/lower-mow lever (joystick). Functional control lever (neutral, mow, transport). Foot operated traction drive and brakes. Hand operated throttle and choke. Mechanical engine speed control. |
| Cup Holder | Standard |
| Rollers | Solid Rollers on this unit. |
| Cutting Unit Type/Configuration | Cutting units are completely free-floating, each attaching to the tractor by direct pull links and lifted by a centered lift arm. Baskets are supported by carrier frames that are ground following. Cutting unit floatation is unaffected by basket content. Grass baskets are all interchangeable and accessible from the front of the machine. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. |
| Drivetrain | Gas |
| Electrical System | 12-volt lead acid, group size U1, with 300 minimum CCA at 0° F. 16 amp alternator. Seat switch. Harness terminals and fuse slot available for optional lights installation. |
| Engine Cooling | Air Cooled |
| Fuel / Power Source | Gasoline |
| Fuel Capacity | 7 U.S. gal. (26.5 L) |
| Gauges/Instrumentation | Hour Meter |
| Grass Distribution | Non-adjustable front shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions. |
| Ground Pressure | 8-12 psi (.55-.83 bar) (dependent on tire pressure) with operator and cutting units down. |
| Ground Speed – Forward | 0 – 10 mph (0 – 16.1 km/h) |
| Height | 74.5″ (189 cm) |
| Height of Cut Range | Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 0.062″ – 0.297″ (1.6 – 7.5 mm). With high HOC kit, range is 0.297″ – 1.0″ (7.5 – 25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed. |
| Hydraulic Fluid Capacity | 7.5 U.S. gal. (28.4 L) tank with internal baffle. 1 U.S. gal. (3.8 L) auxiliary tank. |
| Implement Drive | Single gear pump, mono valve block, series reel drive to 3 motors. |
| Leak Detection | Standard Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid. |
| Lighting | LED |
| Mowing Speed | 2 – 5 mph (3.2 – 8 km/h) |
| Number of Blades | 11 |
| Overall Width | 69.7″ (177 cm) with reels |
| Parking/Service Brakes | Foot activated with two 6″ (15.2 cm) drum type brakes mounted on the front wheel motors. |
| Power Steering | Yes |
| Power Train (Engine Description) | Briggs and Stratton® air-cooled gasoline engine, 18 hp (13.4 kW) @ 3600 rpm, governed to 2850 rpm high idle, 1650 rpm low idle. |
| Product Length | 90″ (229 cm) |
| Reel Diameter | 5 in. (12.7cm) |
| Reel/Cylinder Drive | Hydraulic |
| Rollers | Front: Solid roller. Rear: Steel full, 2″ (5.1 cm) diameter with sealed bearings and through-shaft. |
| Safety/Operator Safety | Roll Over Protection System standard. Sound level of 82 dB(A) at operator’s ear under normal conditions. |
| Starting | Electric |
| Steering System Description | Adjustable steering wheel tilt and a 5-position steering arm tilt. |
| Tires – Front | 18″ x 10.5″ – 8″, 4-ply, Smooth Tread |
| Tires – Rear | 18″ x 10.5″ – 8″, 4-ply, Smooth Tread |
| Traction Drive | 2WD |
| Traction Drive (System) | Hydraulic piston pump, closed loop system. |
| Transport Width | Outside at Tires: 60″ (152.4 cm) Outside at Reels: 69.7″ (177 cm) |
| Weight | 1,087 lbs. (493 kg) |
| Wheelbase | 47″ (119 cm) |
| Width of Cut | 59″ (150 cm) |
