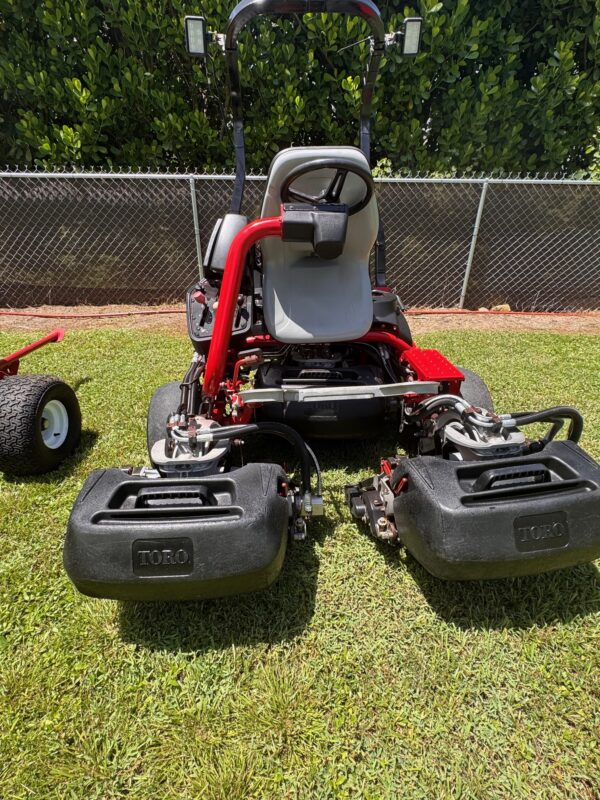

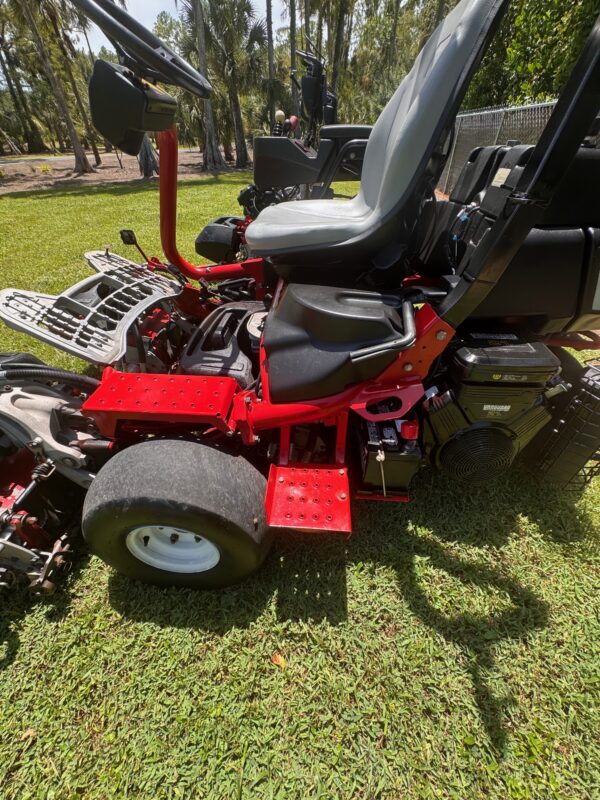

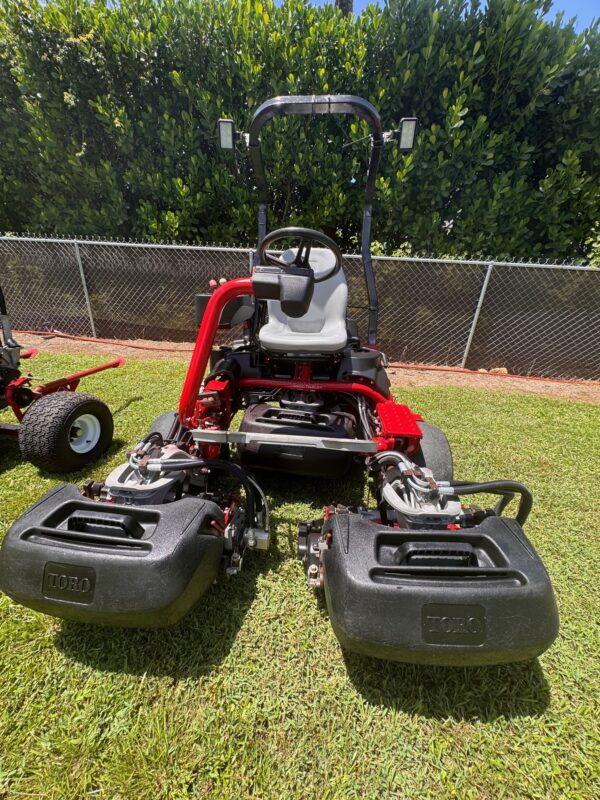

2016 Toro Greensmaster TriFlex 3300 Hydraulic Mower
$28,500.00
Description

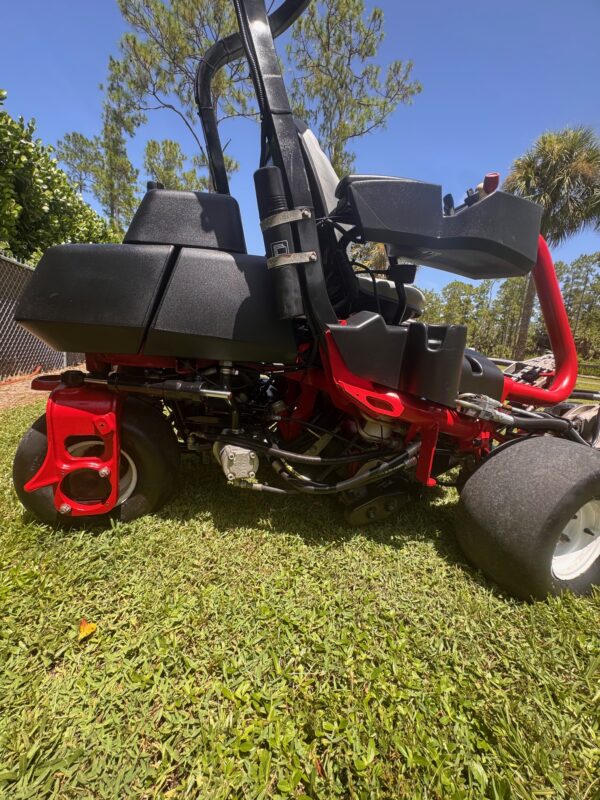

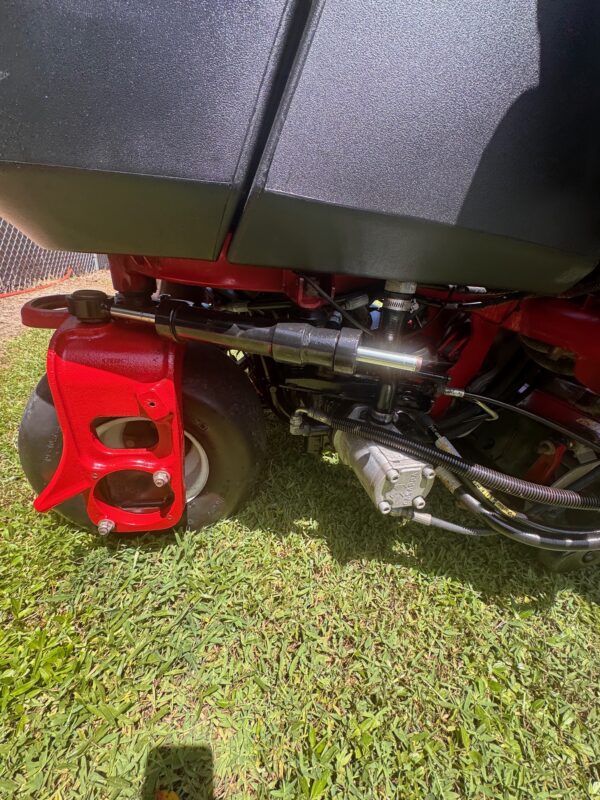

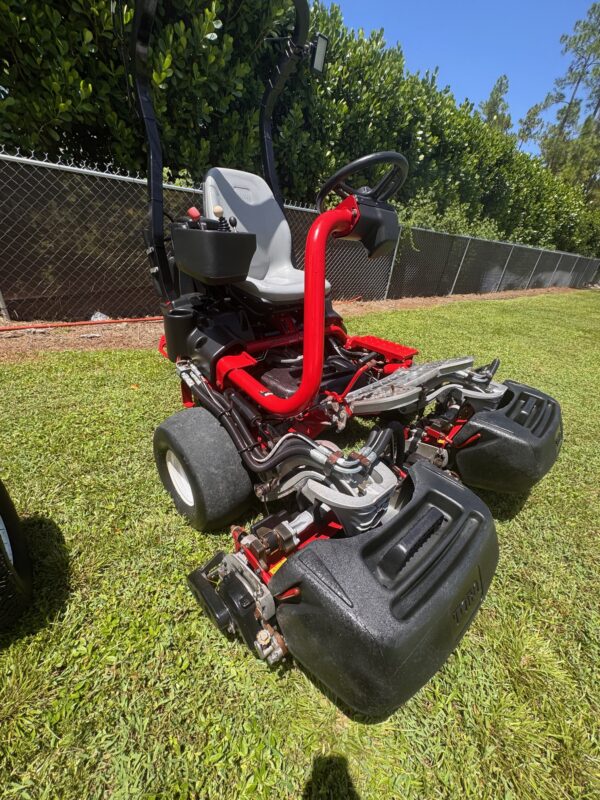

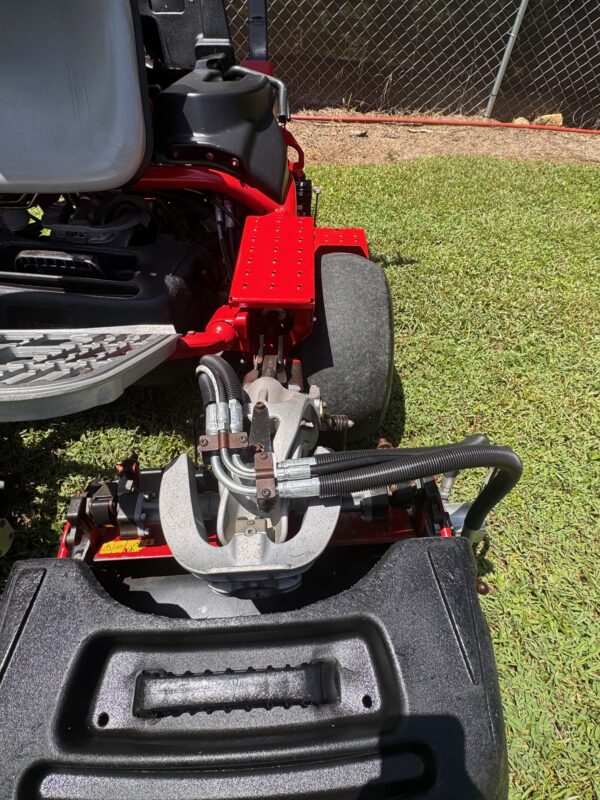

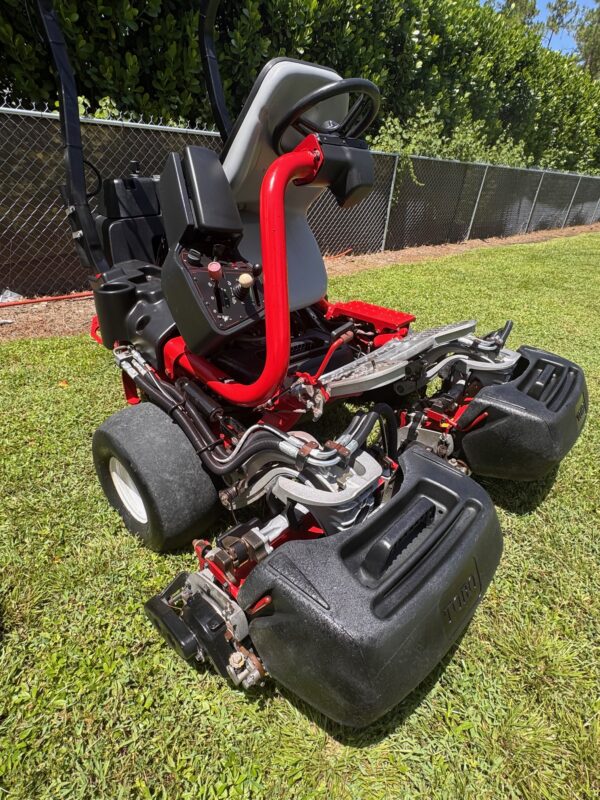

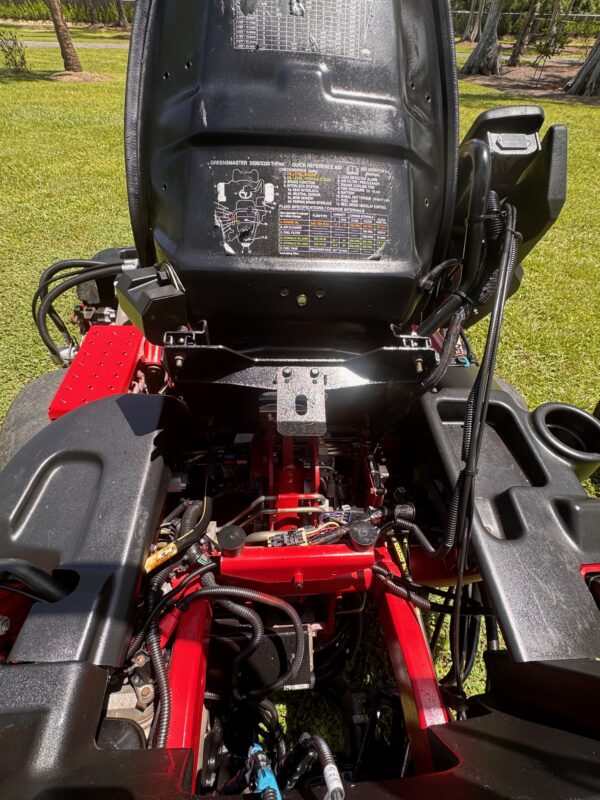

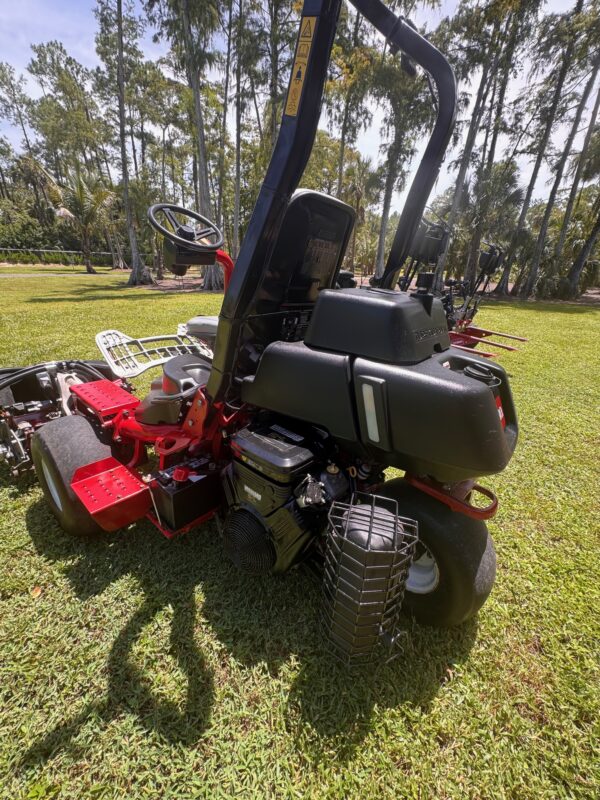

Beautiful 2016 Toro Greensmaster 3300 Triflex hydraulic mower with 14 bladed reels, groomers rollers, wiehle front rollers, and rear brush rollers. It has 1604 hours. Reels have 95% life left. Everything operates as it should and functions perfectly well. The triflex is a wonderful piece of equipment for any golf course or turf manager to have in their arsenal. This is a must have piece of equipment due its quick change reels, lift gate footrest, and extra room for maintenance. The equipment comes with catch baskets and shipping is available nationwide. Please contact us for package deals.
| Battery | 12V |
|---|---|
| Bedknife | Replaceable single-edged EdgeMax™ Microcut Bedknife is standard. |
| Bedknife Adjustment | Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.0007″ (0.018 mm) bedknife movement for each position. |
| Blade Style/Type | Reel |

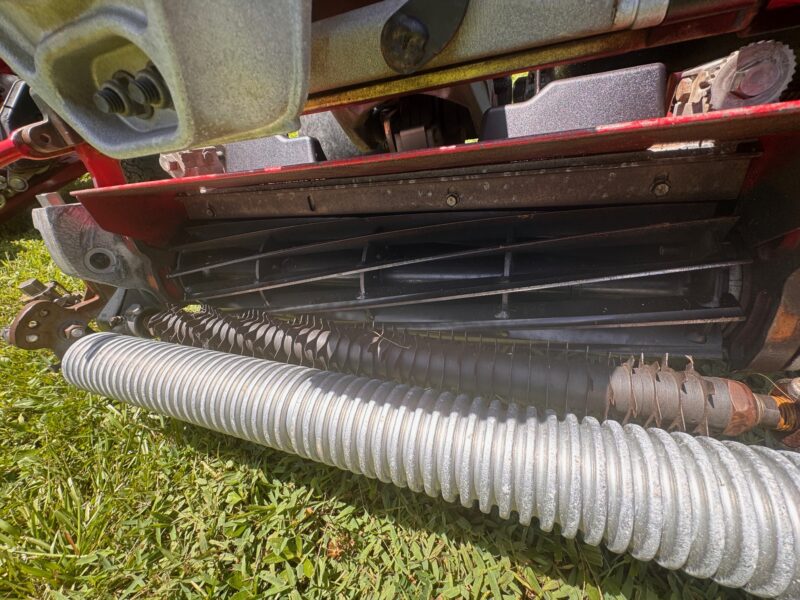

| Blade Type (Description) | Reels are 5″ (13 cm) in diameter, 21″ (53.3 cm) in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 1.375″ (35 mm) diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut. |
| Clip Frequency/Backlapping | Adjustable up to 2050 RPM at 2850 engine RPM. Backlapping standard. |
| Controls | Ignition: Off/Run/Start. Throttle: Low – High Idle. Choke (AC only): Opens / Closes choke plate. Parking Brake: Off – On. Traction Pedal: Rev/Neutral/Forward Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal. Diagnostic Light: Indicates system faults to assist in resolving issues. |

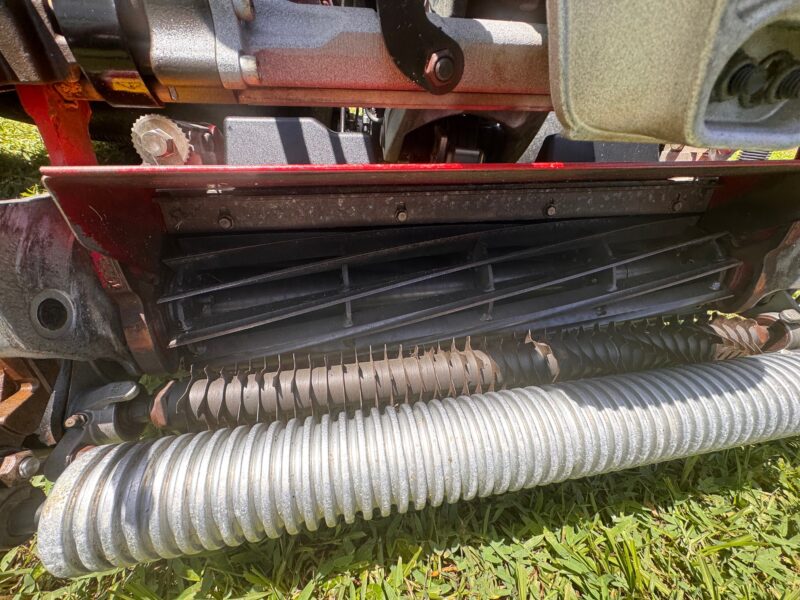

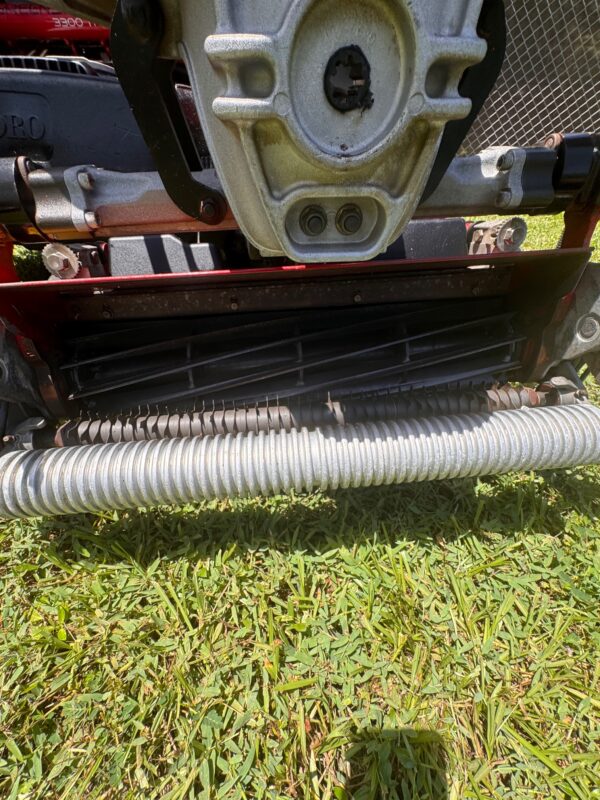

| Cutting Unit | 14 bladed reels with wiehle rollers in the front, groomers, and rear brush rollers. |

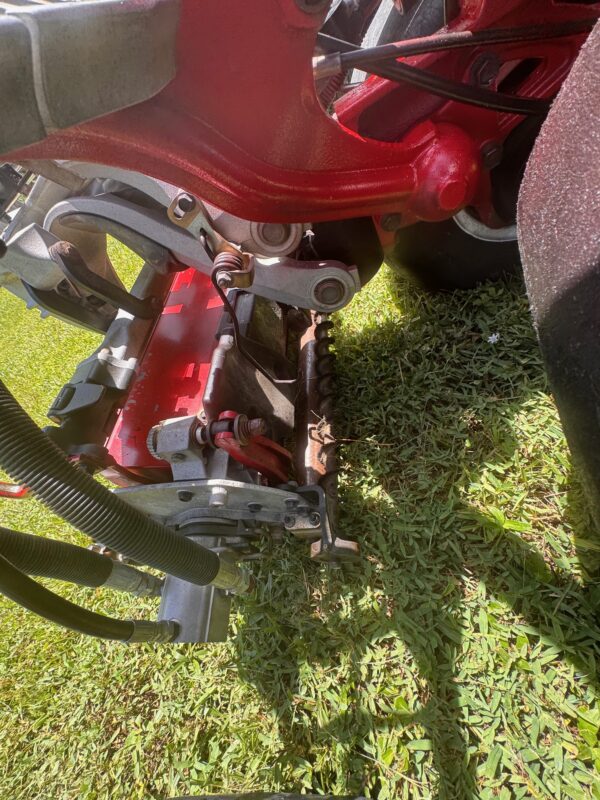

| Cutting Unit Type/Configuration | Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. |
| Drivetrain | Gas |
| Electrical System | 12-volt lead acid, group size U1, with 300 minimum CCA at 0° F and 34 minutes reserve capacity at 85° F/25 amps draw. 50 amp alternator. Seat switch. Harness terminals and fuse slot available for optional lights installation. |
| Engine Cooling | Air Cooled |
| Fuel / Power Source | Gasoline |
| Fuel Capacity | 6 U.S. gal. (22.7 L) |

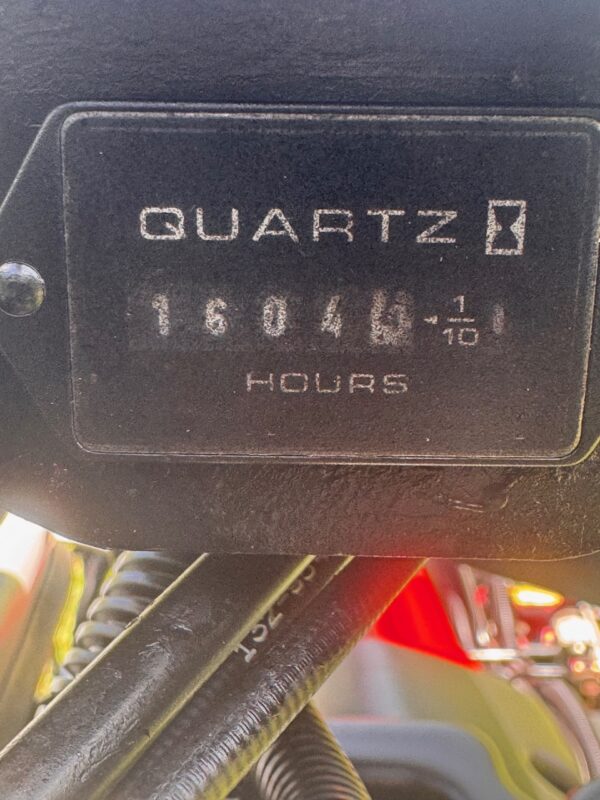

| Gauges/Instrumentation | Hour meter, low oil pressure warning light. |
| Grass Distribution | Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions. |
| Ground Clearance | 4.5″ (11.4 cm) |
| Ground Speed – Forward | 0 – 10 mph (0 – 16.1 km/h) |
| Height | 80.83″ (205 cm) |
| Height of Cut Range | Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 0.062″ – 0.297″ (1.6 – 7.5 mm). With high HOC kit, range is 0.297″ – 1.0″ (7.5 – 25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed. |
| Hydraulic Fluid Capacity | 6.8 U.S. gal. (25.7 L) |

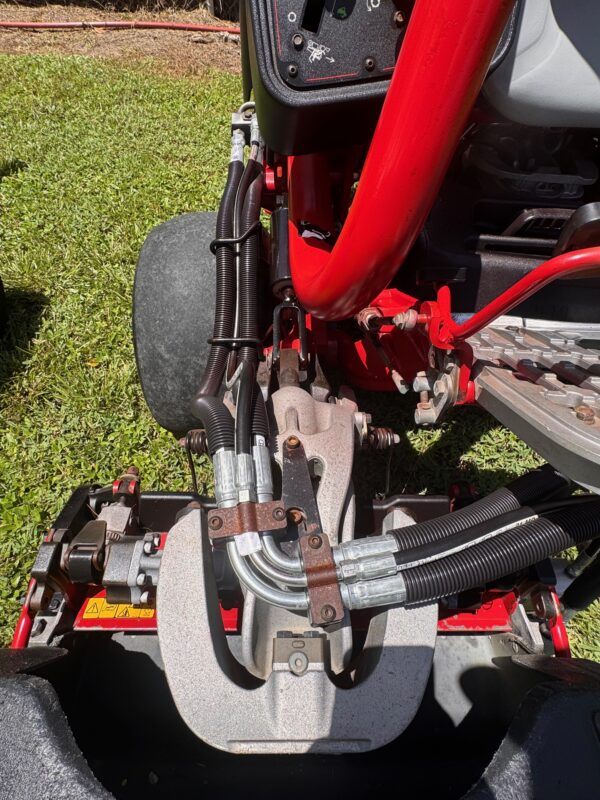

| Implement Drive | Single gear pump, valve block, series reel drive to 3 reel motors. |

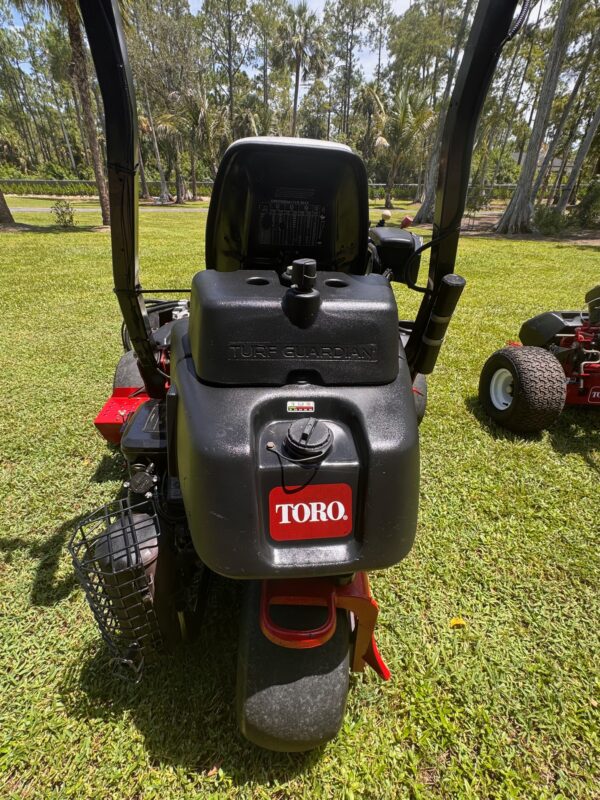

| Leak Detection | Standard Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid. |
| Mowing Speed | 0 – 5 mph (0 – 8 km/h) |
| Number of Blades | 14 |
| Footrest | Liftgate |
| Overall Width | 70.62″ (179 cm) with reels |
| Parking/Service Brakes | Hand-actuated parking brake lever with two 6″ (15.2 cm) diameter drum brakes mounted on the front wheel motors. |
| Power Steering | Yes |
| Power Train (Engine Description) | Briggs & Stratton® Vanguard®, 23 HP (17.2 kW) @ 3600 rpm, 2-cylinder, air-cooled, gasoline engine, governed to 2920 high idle, 1650 rpm low idle. Displacement: 38.3 cu-in. (627 cc) |
| Product Length | 98″ (249 cm) |
| Reel Diameter | 5 in. (12.7cm) |
| Reel/Cylinder Drive | Hydraulic |

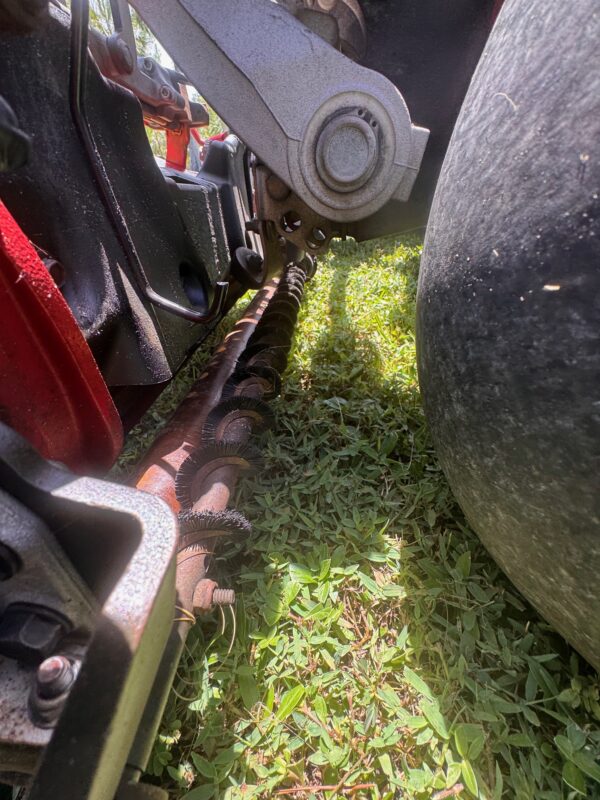

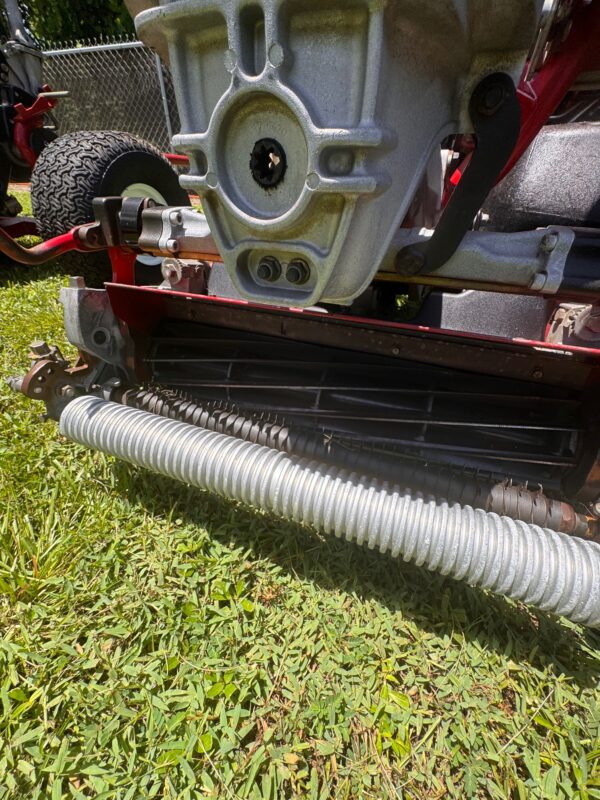

| Rollers | Front: Wiehle roller. Rear: Steel full and brush rollers. |
| Safety/Operator Safety | Sound level of 80 dB(A) at operator’s ear under normal conditions. |
| Starting | Key Start |
| Steering System Description | No-tool quick adjust steering arm position with power assist allowing a wide range of operator sizes. Steering cylinder has a through shaft design for precise straight line tracking. |
| Tires – Front | 19″ x 10.5″ – 8″, 4-ply, Smooth Tread |
| Tires – Rear | 19″ x 10.5″ – 8″, 4-ply, Smooth Tread |
| Traction Drive | 2WD |
| Traction Drive (System) | 2WD parallel hydrostatic |
| Transport Width | Outside at Tires: 61″ (154.94 cm) Outside at Reels: 70.62″ (179 cm) |
| Weight | 1,161 lbs. (526 kg) |
| Wheelbase | 47″ (119 cm) |
| Width of Cut | 59″ (150 cm) |
